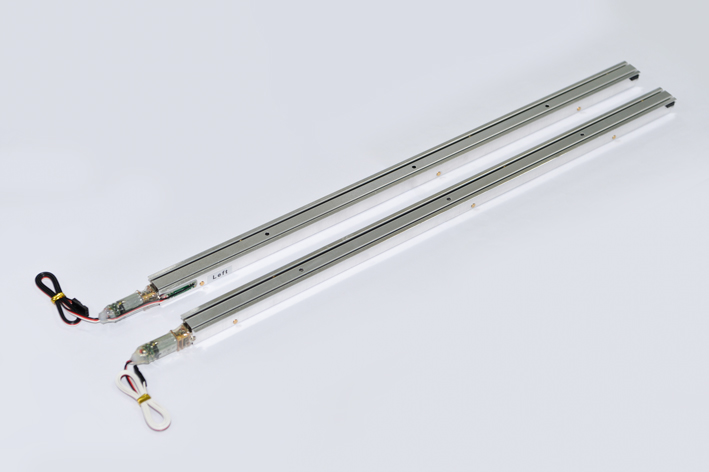

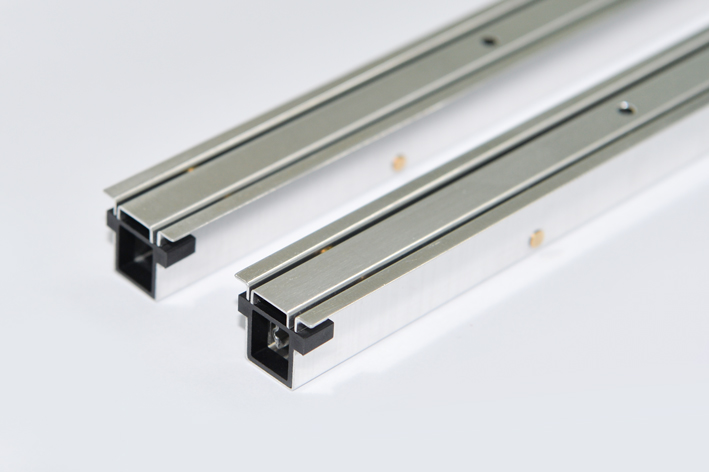

Electric Spoiler 440mm
Item Code: 18004
Specifications:
Size: 485 x 12 x 16 mm
Extended Height:46mm
Flange Width :19 mm
Weight: 192g/pair

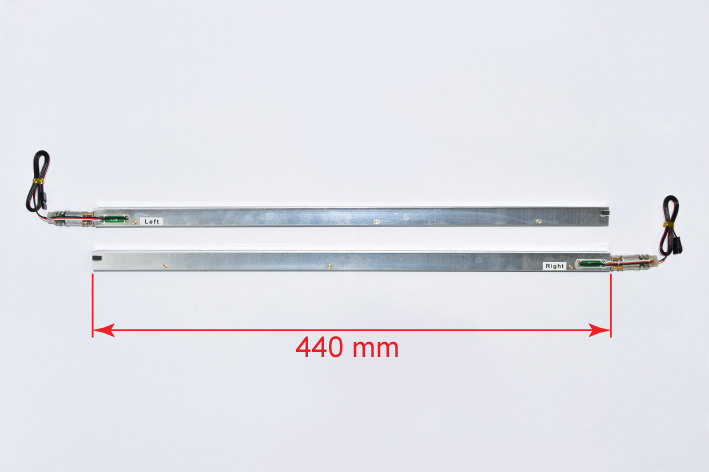

Spoiler Length :440 mm
Connector Universal:420 mm
Key Feature:
Universal connector for most RX
• Plug & Play design w/built-in servo
• Very easy to use no linkage needed
Instruction:

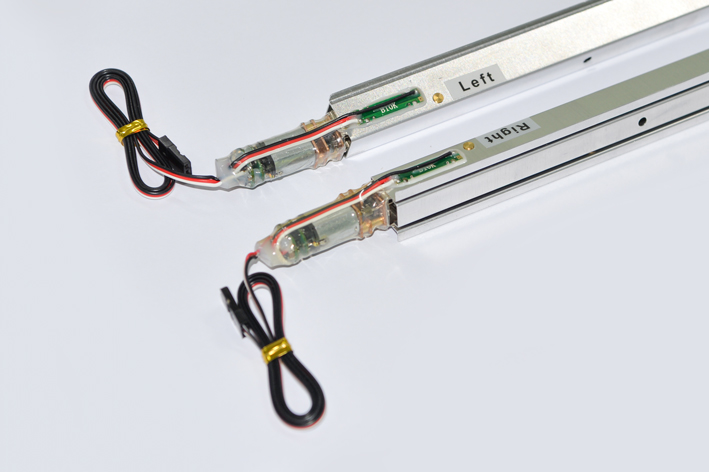

All spoilers have built-in servo which makes installation very easy. Just fish an extension through the wing similar to aileron and connect to a channel of your receiver. The spoiler units are labeled "Right" and "Left". To be the most effective install right into the models right wing and left in the left wing. The two units can connect to one channel via a "Y" connector or two separate channels of your receiver then program the radio as desired.
Caution: Due to the linear design the built-in servo has a limited operation life that is far less han rotary servos. Although the operation life should be plenty for normal spoller use abnormal repetitive operation may go beyond the life design of this servo. Also do not impede the operation, this could overload the motor. This servo is not reparable. The complete unit would need to be replaced.
