PH130 - STINSON RELIANT 1,72m 67,7" ARF 20-26cc

PH130 - STINSON RELIANT 1,72m 67,7

Introducing

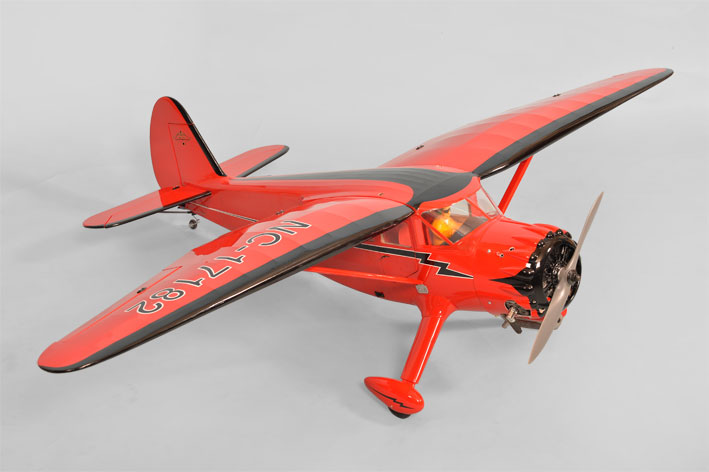

    The Reliant is a three-place high-wing fixed tailwheel land monoplane powered with a variety of radial engines and manufactured by the Stinson Aircraft Division.  The traditional laser cut wood construction throughout replicates the build lines of this famous classic aircraft. Excellent parts fit, quality fiberglass parts, quality covering, complete hardware package. All are engineered and crafted to exacting standards and feature the finest components and materials.

Technical data

- Wingspan: 1720mm (67.7in)
- Length: 1338mm (52.6 in)
- Flying weight: 4400-4800 g
- Wing area: 42,2 dm2
- Wing loading: 90g/dm2
- Wing type: Y- clark airfoils
- Gear type: Aluminum scale plate (included)
- Spinner size: scale type  (not included)
- Radio: 6 channel minimum (not included)
- Servo: 7 standard servo: 2 aileron; 2 flap; 1 elevator; 1 rudder; 1 throttle (not included)
- Recommended receiver battery: 4.8-6V / 2000 mAh NiMH (not included)
- Servo mount: 21mm x 42 mm
- Propeller: suit with your engine

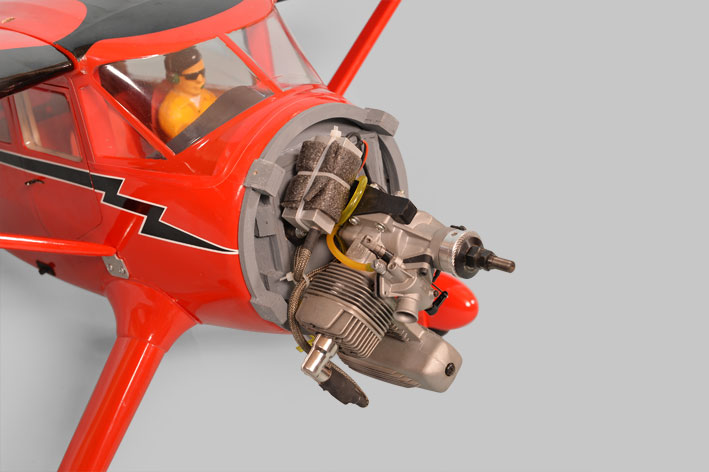

- Engine: .91 / 2-stroke glow engine  or 15-20cc gas engine (not included)
- Motor: brushless outrunner 2200 W, 500 KV (not included)
- Experience level: Intermediate
- Plane type: Scale Civilian

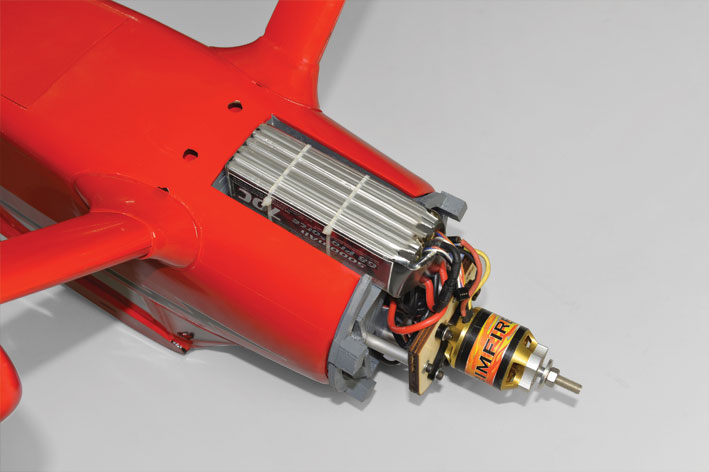

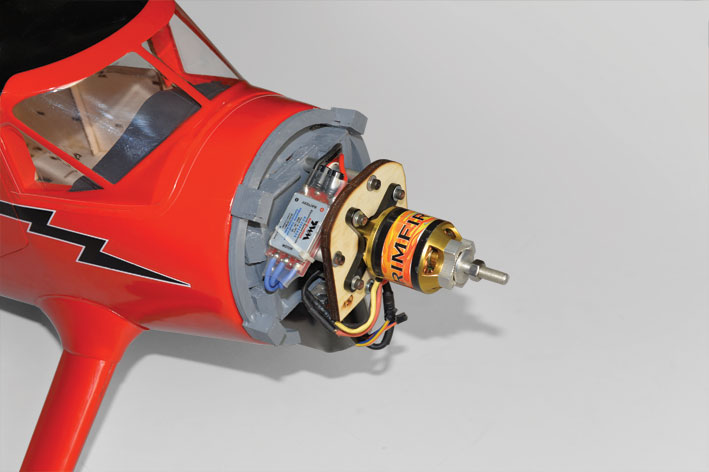

RECOMMENDED MOTOR AND BATTERY SET UP
- Motor: RIMFIRE .80 (not included)
- Lipo cell: 6 cells / 4000 – 5500mAh (not included)
- Esc: 60-100A (not included)

Feature

- Designed for compatibility with both GP and EP flight

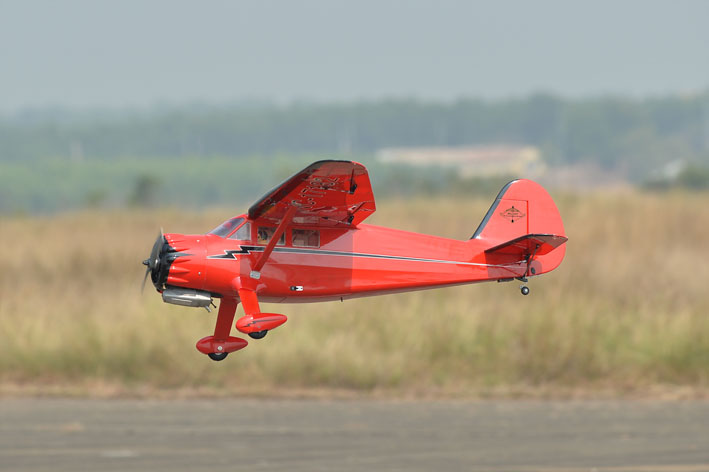

- Superb flying characteristics, plus an accurate scale outline

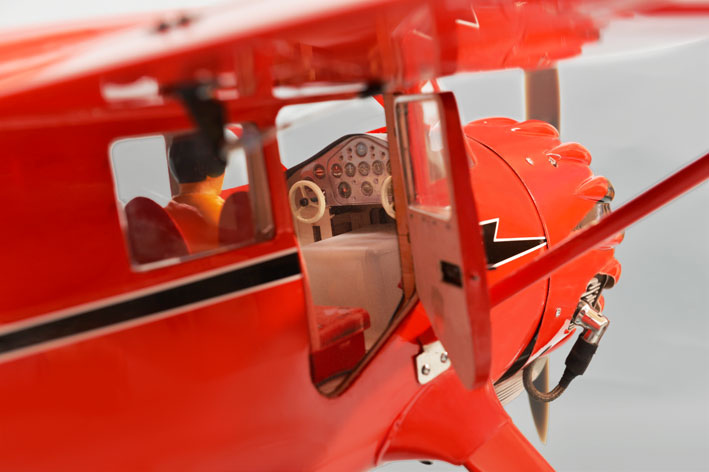

- Functional scale cockpit doors with spring-loaded latches

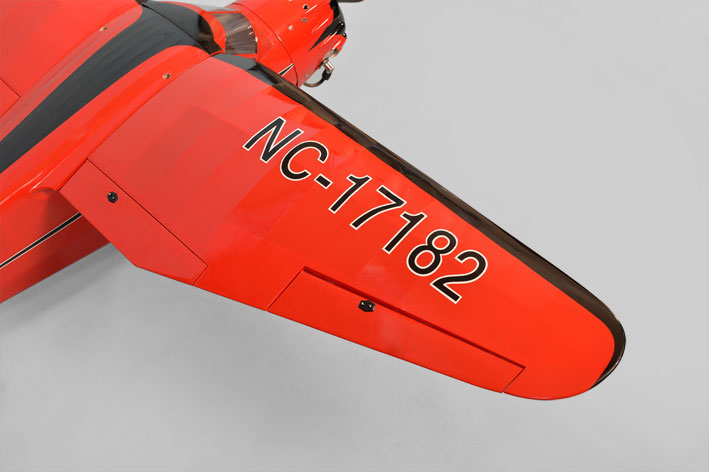

- Functional panel flaps
- Removable hatch for easy set up radio

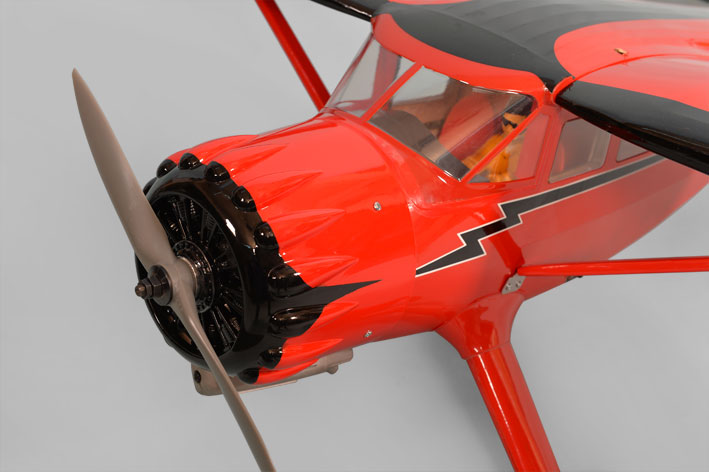

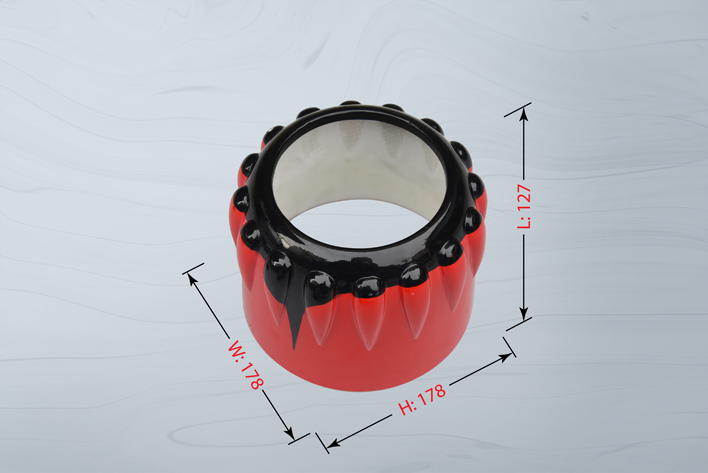

- Scale outline is enhanced by the lightweight fiberglass cowl

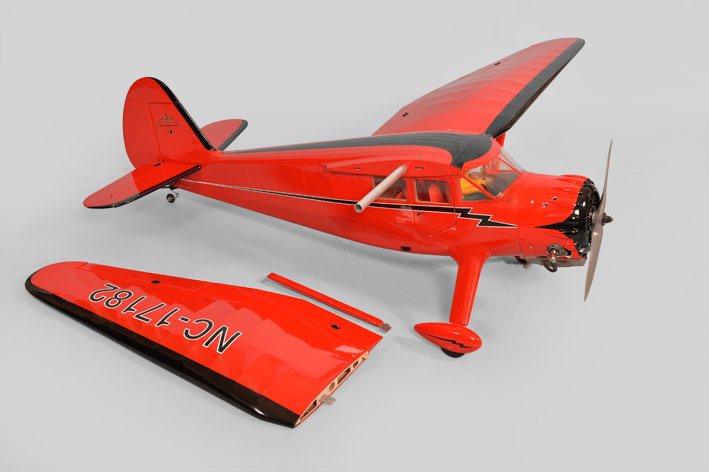

- Bolt-on two-piece wing for easy transport and setup at the field

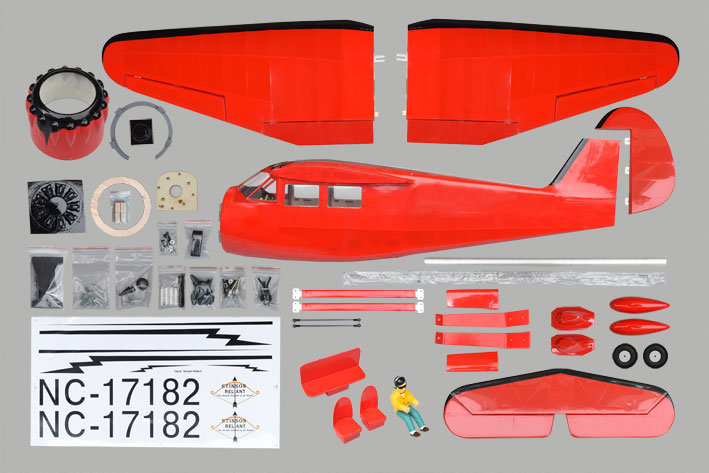

- High-quality hardware package included

Colour chart

-  Ferrari Red     ( #21023)
-  Black               (# 21071)

Packing

BOX DIMENSION
   -1116mm X 452mm X 223mm (L x W x H)
