Introducing

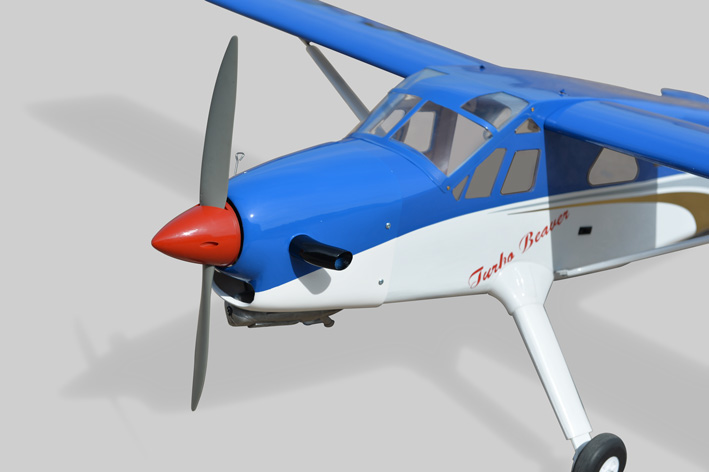

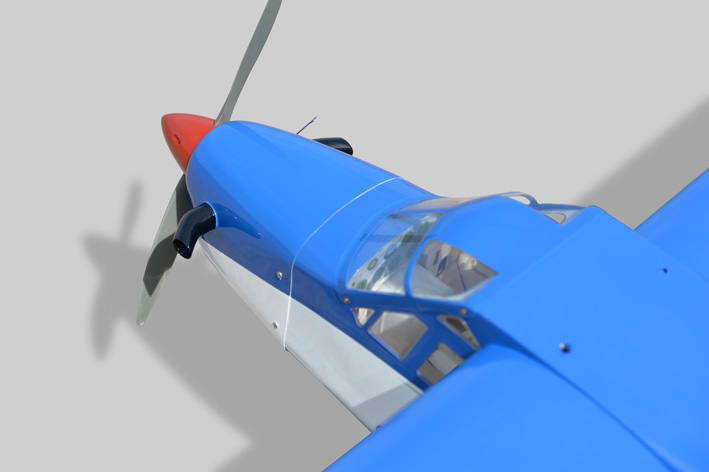

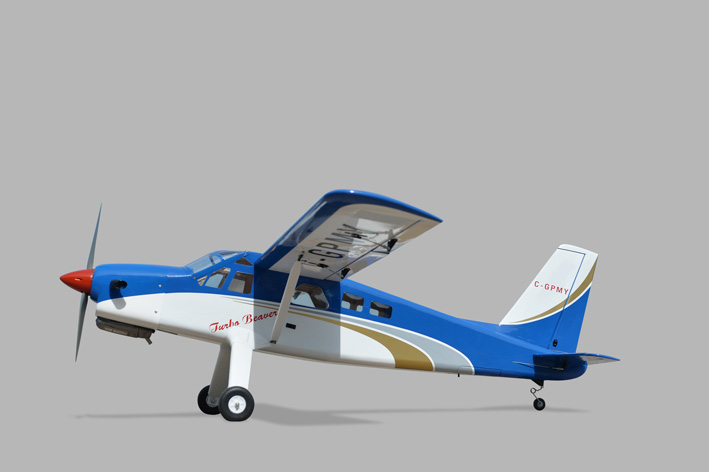

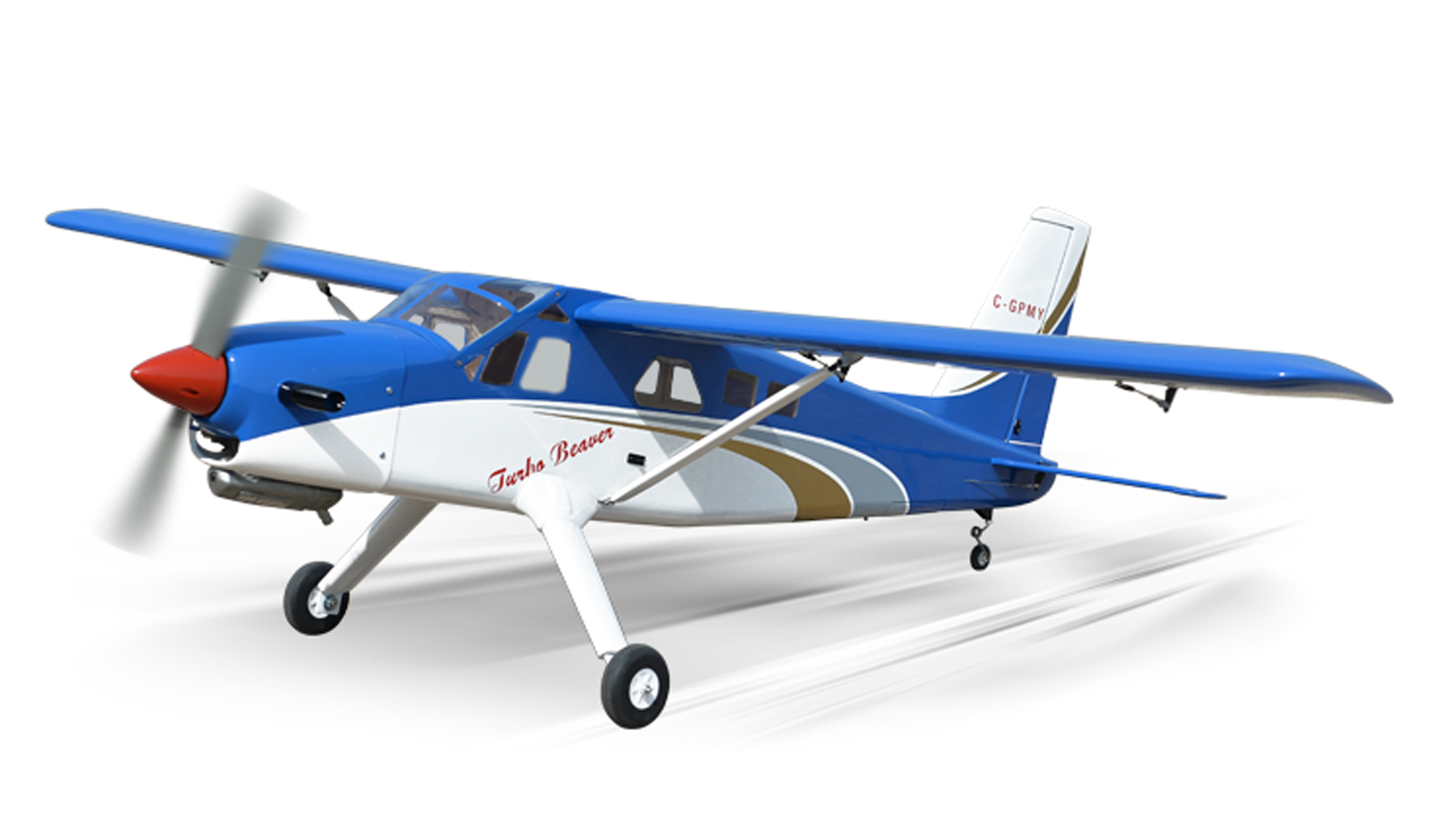

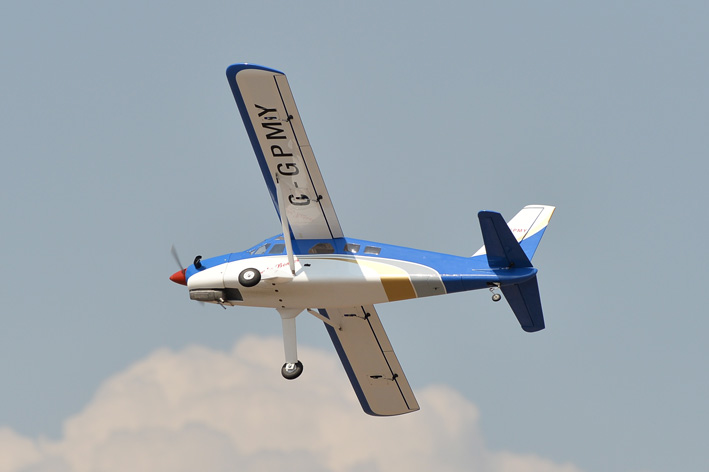

TURBO BEAVER 1,9m 74,8" ARF 20-26cc
Technical data
- Wingspan: 1900mm (74.8in)
- Length: 1428mm (56.2 in)
- Flying weight: 4600-5000 g
- Wing area: 43,3 dm2
- Wing loading: 105g/dm2
- Wing type: Naca airfoils

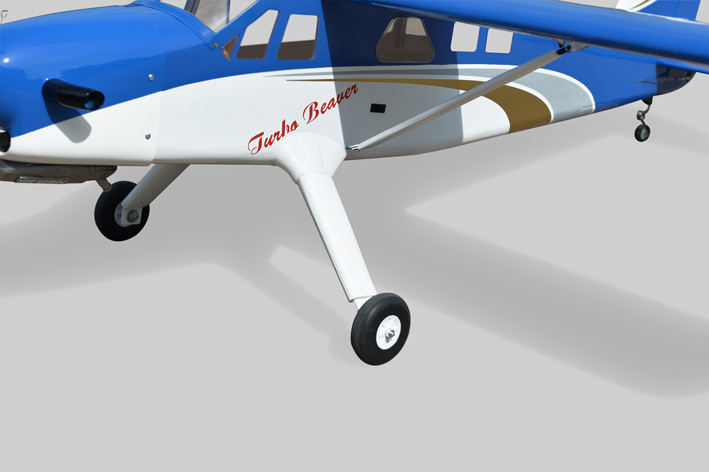

- Gear type: Aluminum scale plate (included)
- Spinner size: 70mm (not included)
- Radio: 6 channel minimum (not included)
- Servo: 7 standard servo: 2 aileron; 2 flap; 1 elevator; 1 rudder; 1 throttle (not included)
- Recommended receiver battery: 4.8-6V / 2000 mAh NiMH (not included)
- Servo mount: 21mm x 42 mm
- Propeller: suit with your engine

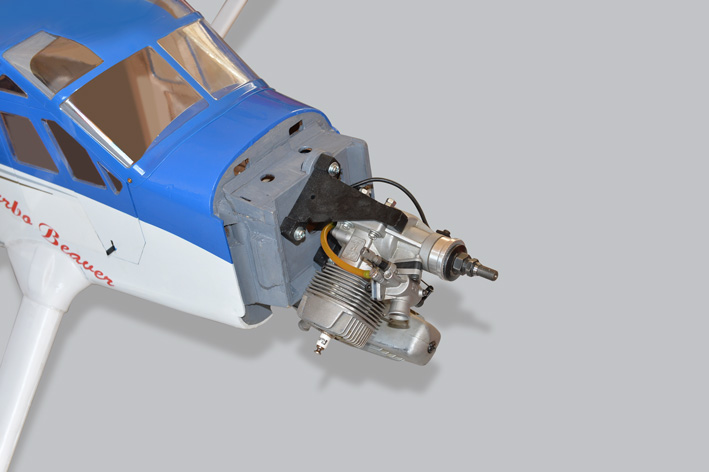

- Engine: .91 / 2-stroke glow engine or 15cc gas engine (not included)
- Motor: brushless outrunner 2200 W, 500 KV (not included)
- Experience level: Intermediate
- Plane type: Scale Civilian
RECOMMENDED MOTOR AND BATTERY SET UP

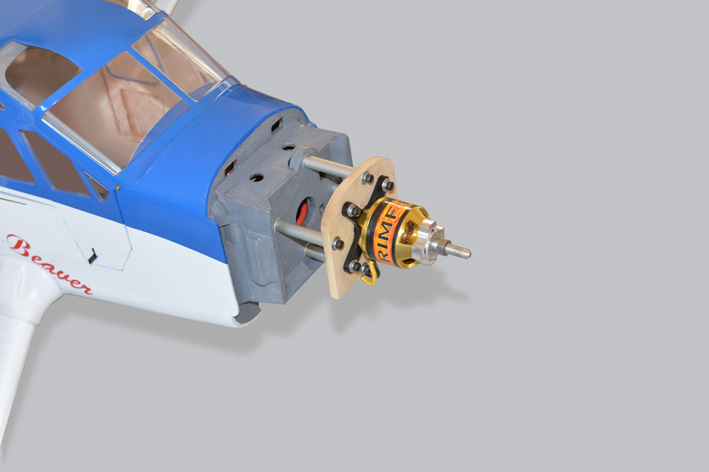

- Motor: RIMFIRE .80 (not included)
- Lipo cell: 6 cells / 4000 – 5500mAh (not included)
- Esc: 60-100A (not included)
Feature
- Designed for compatibility with both GP and EP flight
- Quick-connect, streamlined wing struts

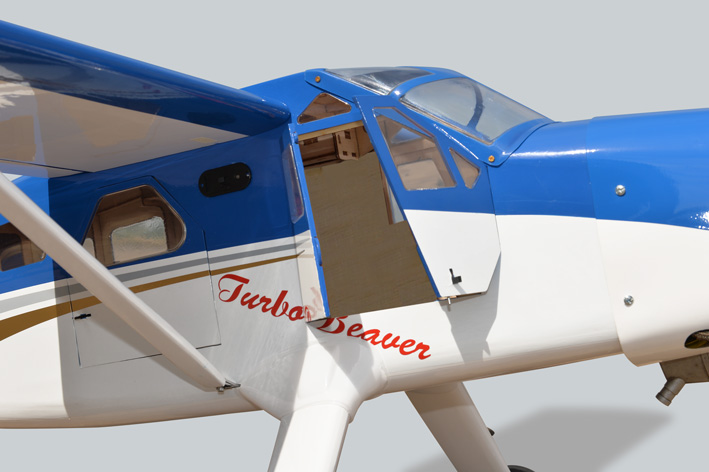

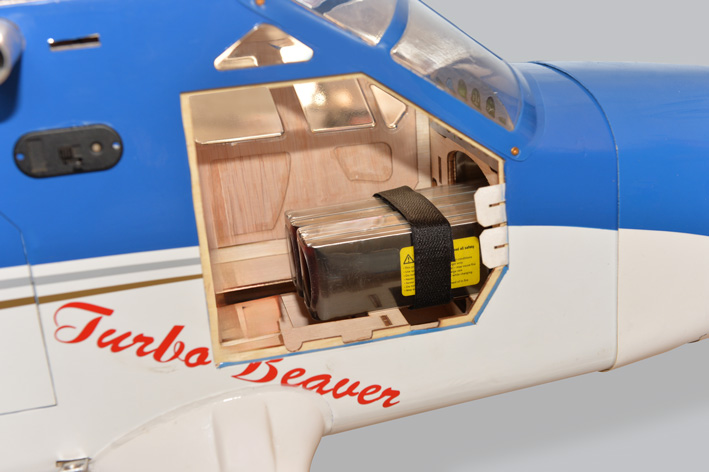

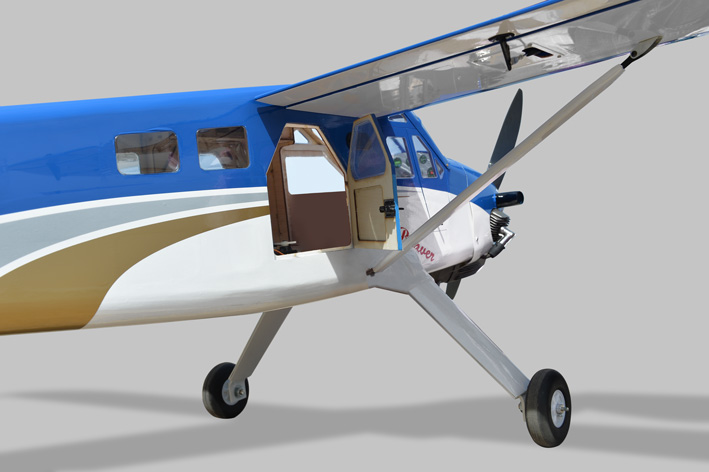

- Operational cockpit side-doors
- Instrument details and seats included

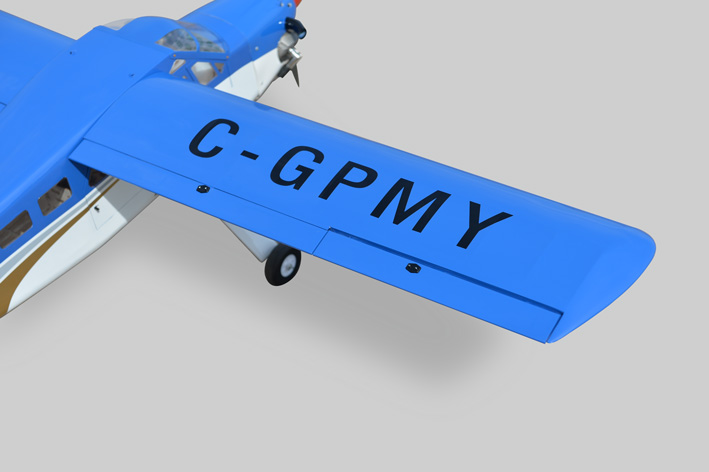

- Functional panel flaps

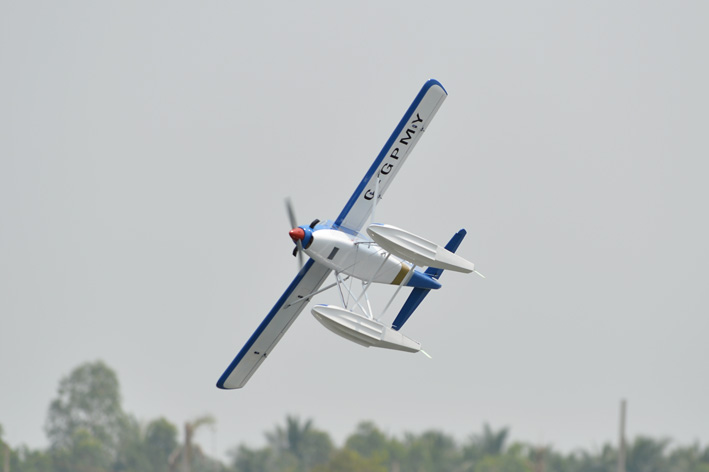

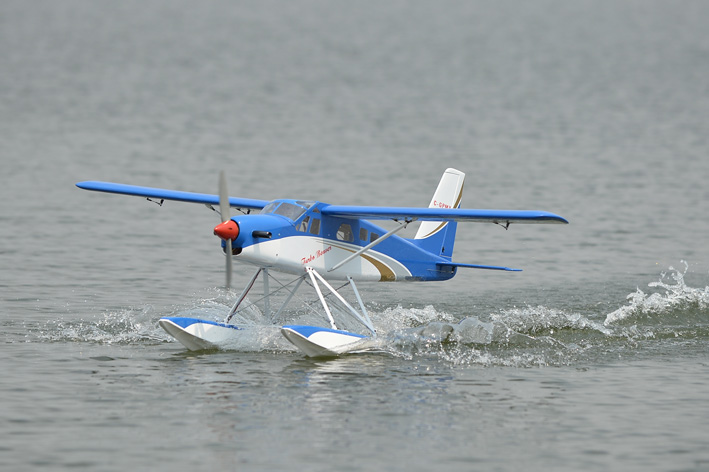

- Hard points for mounting the scale float kit (sold separately) are already built into the fuselage

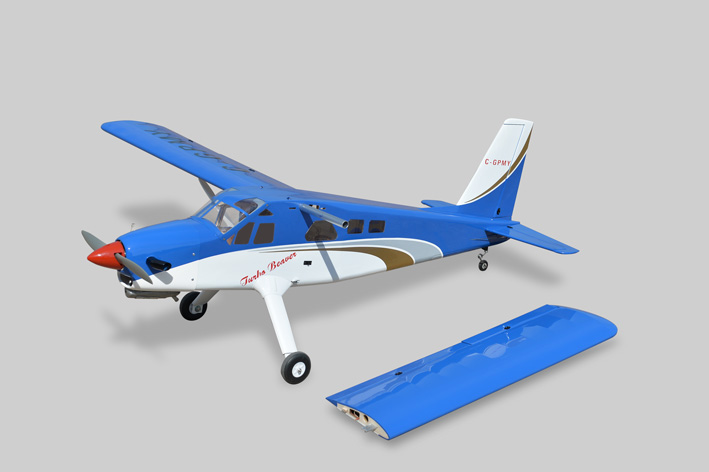

- Bolt-on two-piece wing for easy transport and setup at the field

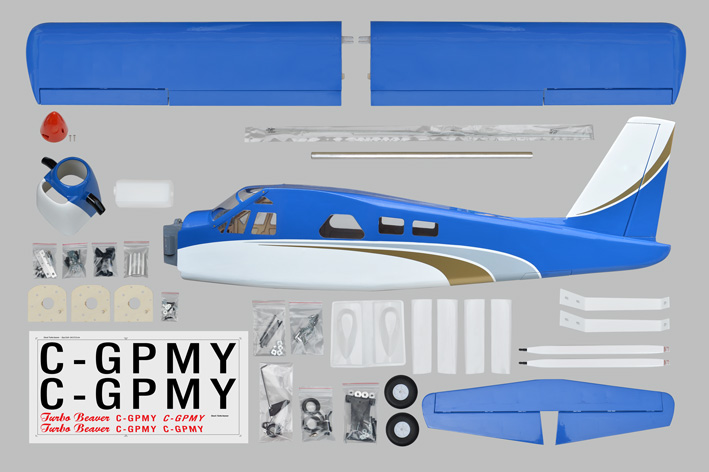

- High-quality hardware package included
Colour chart
- Blue (# 21050)
- Gold (# 21092)
- Grey (# 21011)
- White (# 21010)
Packing
BOX DIMENSION
- 1359mm X 470mm X 263mm (L x W x H)
