Introducing
Part of a new generation of acrobatic aircraft from the Yakovlev design bureau who have a long line of aircraft designs started in 1937 with UT-2/AIR-10. It is a development of the single-seat Yak-55M, designed by Chief Constructor Dmitry Drach and Lead Engineer Vladimir Popov it first flew 23 December 1993.

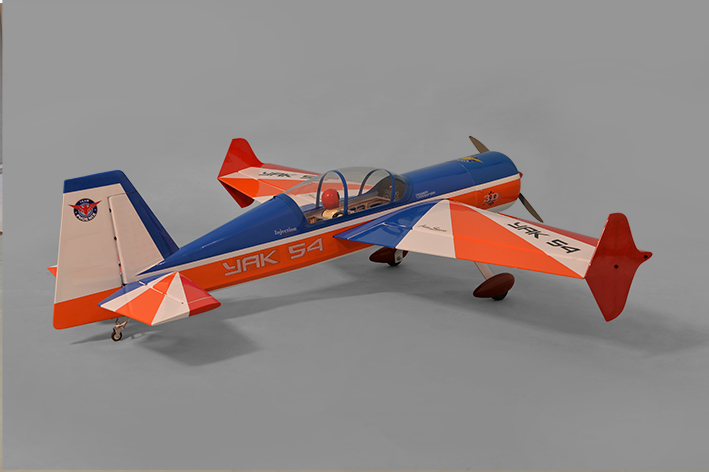

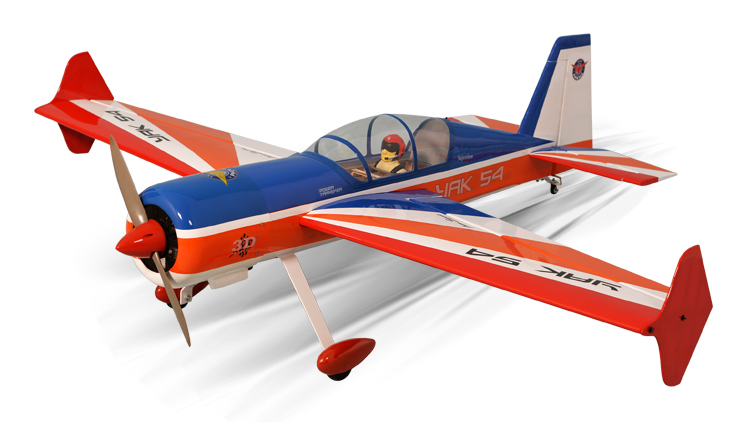

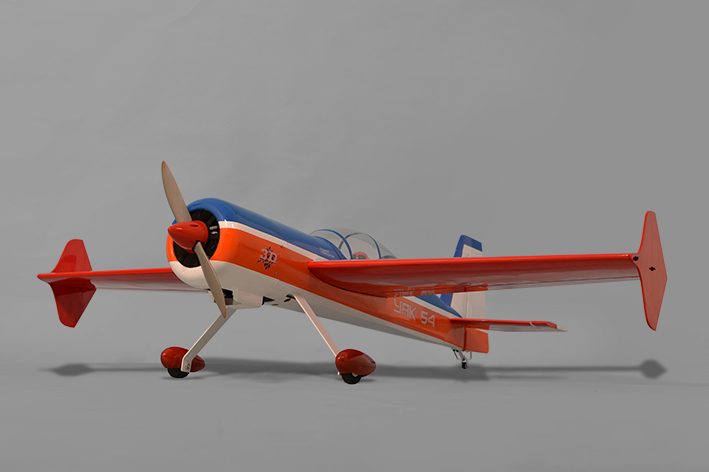

A beautifully hand-built scale kit with muscular performance. Features light-weight all balsa construction, fiberglass cowl. The basic plane is lighter, the chassis has been redesigned to prevent movement and flex. The Yak 54 is very responsive and very quick to follow inputs for the pilot. As with the plane comes complete with full accessories. It is completely built, requiring minimum assembly. The Yak 54 is a great plane very well made and very enjoyable.
Technical data
- Wingspan: 1612mm (63.4 in)
- Length: 1496mm (58.9 in)
- Flying weight: 3800-4500 gr
- Wing area: 52.2 dm2
- Wing loading: 78g/dm2
- Wing type: Naca airfoils

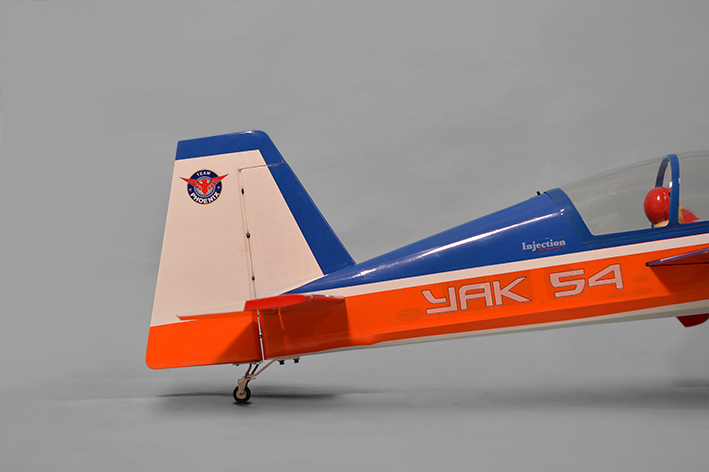

- Gear type: Aluminum Hi-grade for main gear and spring wire for tail gear (included)
- Spinner size: Plastic 58mm (included)
- Radio: 4 channel minimum (not included)
- Servo: 6 standard hi-torque servo: 2 aileron; 2 elevator; 1 rudder; 1 throttle (not included)
- Recommended receiver battery: 4.8-6V / 1200-2000mAh NiMH (not included)
- Servo mount: 21mm x 42 mm
- Propeller: suit with your engine
- Engine: 15-20cc / 2-stroke or 15cc /gas engine (not included)
- Motor: brushless outrunner 2000-2200 W, 500 KV (not included)
- Experience level: Intermediate
- Plane type: Scale Aerobatic
RECOMMENDED MOTOR AND BATTERY SET UP
- Motor: RIMFIRE .80 (not included)
- Lipo cell: 6 cells / 4000 – 5500mAh (not included)
- Esc: 60A (not included)
Feature
- Capable of both precise and extreme 3D aerobatics
- Designed for compatibility with both GP and EP flight

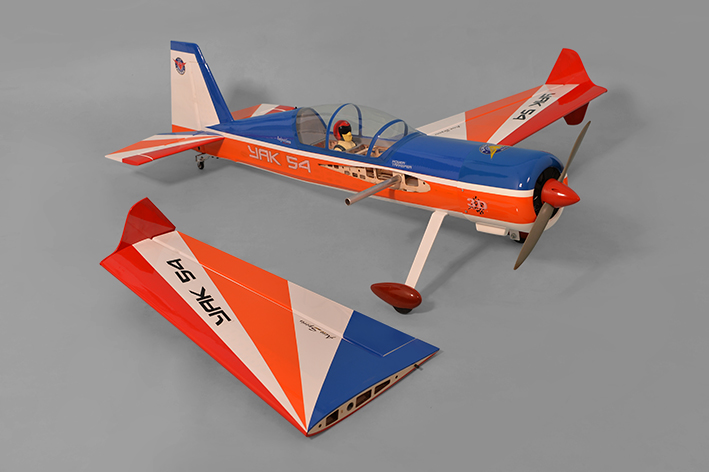

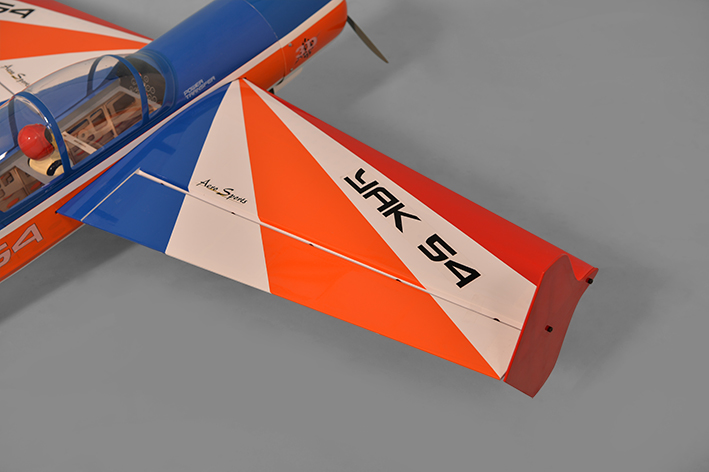

- Bolt-on two-piece wing for easy transport and setup at the field

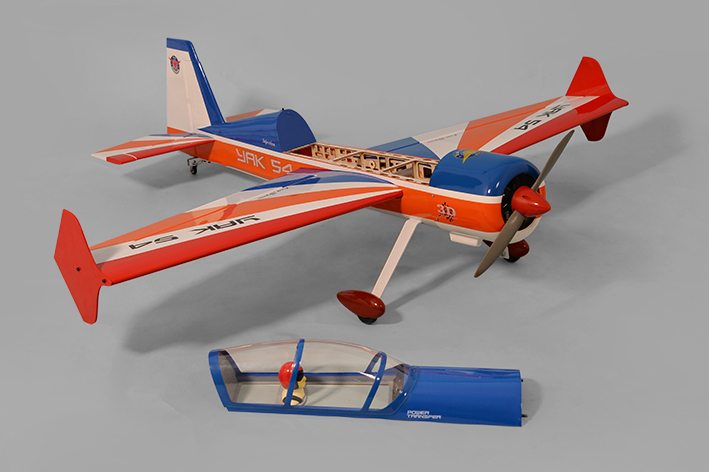

- Removable canopy for easy change lipo battery and set up radio
- Extremely lightweight laser-cut all-wood construction

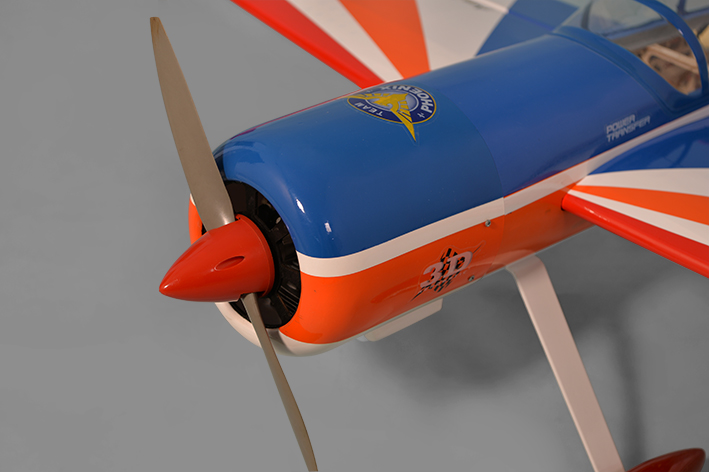

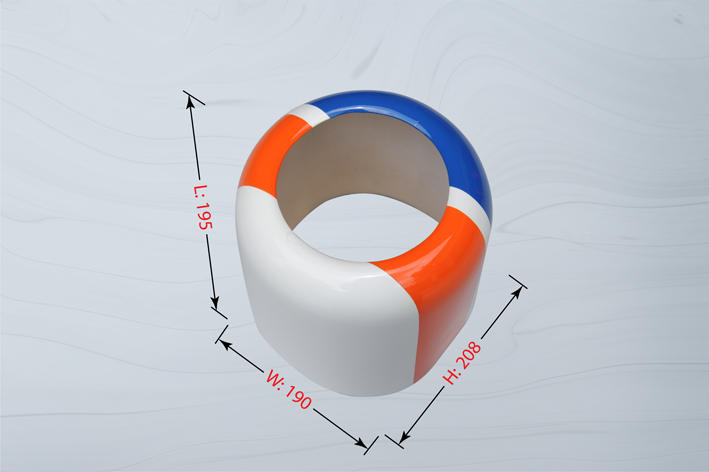

- Durable factory-painted fiberglass cowl

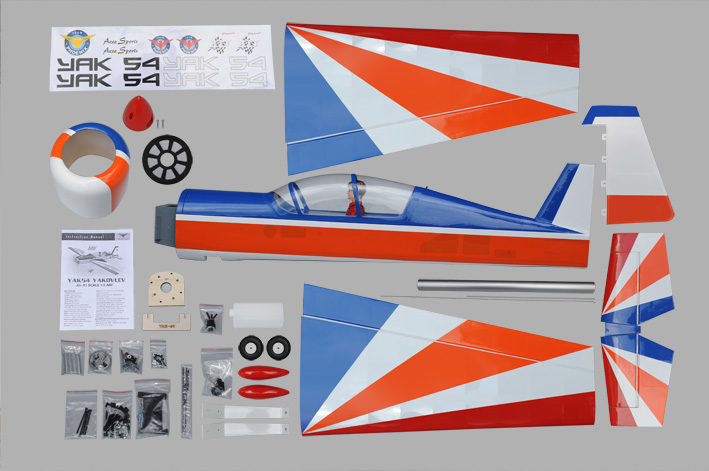

- All hardware included
Colour chart
- Ferrari Red (# 21023)
- White (# 21010)
- Orange (# 21060)
- Blue (# 21050)
Packing
BOX DIMENSION
-1154mm X 435mm X 223mm (L x W x H)
