PH117 – SUPER CUB PA-18 SCALE 1:4 ½ Size 1.20/20cc ARF

PH117 – SUPER CUB PA-18 SCALE 1:4 ½ Size 1.20/20cc ARF

Introducing

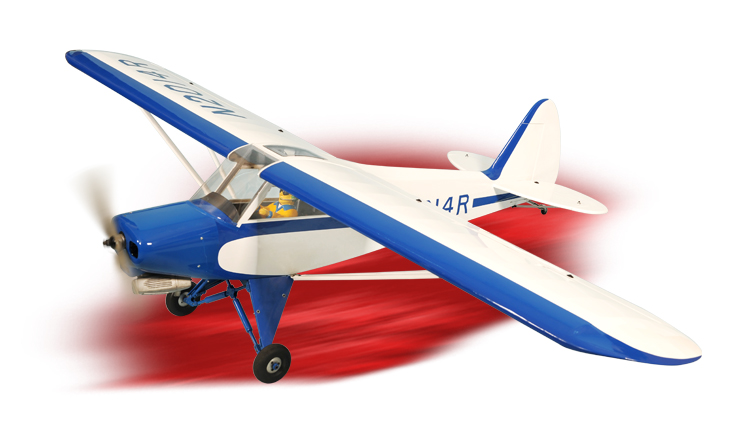

    Phoenix Model has brilliantly captured the spirit of the Super Cub PA-18 with this outstanding, giant-scale recreation. 3-D computer engineering produces parts that fit with absolute precision for straight, strong assembly.Flaps provide function as well as scale appearance. The wings are removable should you want to disassemble it for transportation or storage. A real favourite with scale pilots, this is a Cub you will be proud to own.

Technical data

- Wingspan: 2300mm (90.5in)
- Length: 1472mm (57.9 in)
- Flying weight: 6.2-7.1 kg
- Wing area: 78.7 dm2
- Wing loading: 78.5g/dm2
- Wing type: Naca airfoils

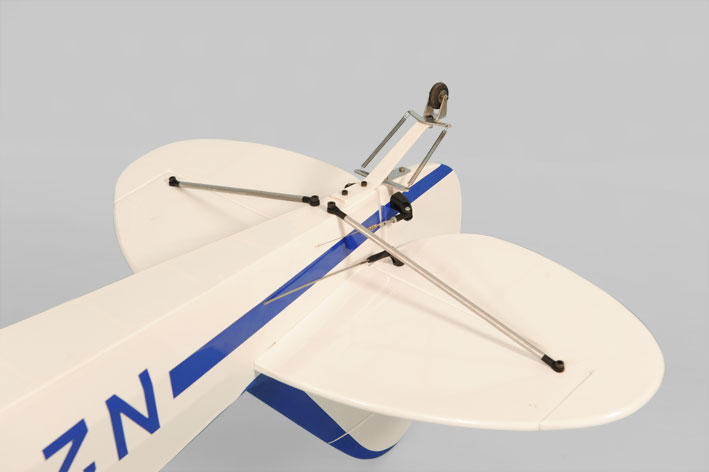

- Gear type: Scale main gear and spring wire for tail gear (included)
- Spinner size: Scale type (not included)
- Radio: 6 channel minimum (not included)
- Servo: 8 Hi-torque standard servo: 2 aileron; 2 Flap; 2 elevator; 1 rudder; 1 throttle (not included)
- Recommended receiver battery: 4.8-6V / 1200-2000mAh NiMH (not included)
- Servo mount: 21mm x 42 mm
- Propeller: suit with your engine

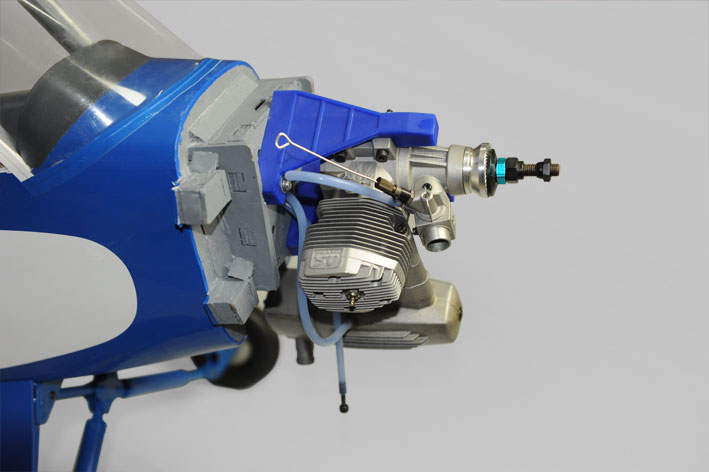

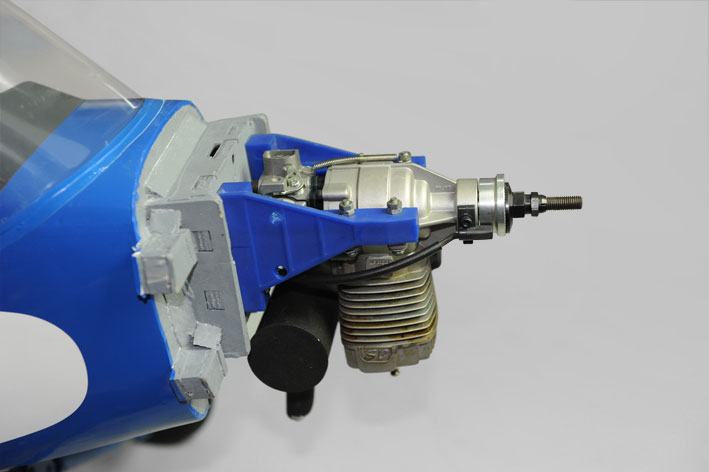

- Engine: 1.20/ 2-stroke or 1.40/4-stroke glow engine or 20cc gas engine (not included)
- Motor: brushless outrunner 1600-2200 W, 450 KV (not included)
- Experience level: Intermediate
- Plane type: Scale Civilian
RECOMMENDED MOTOR AND BATTERY SET UP

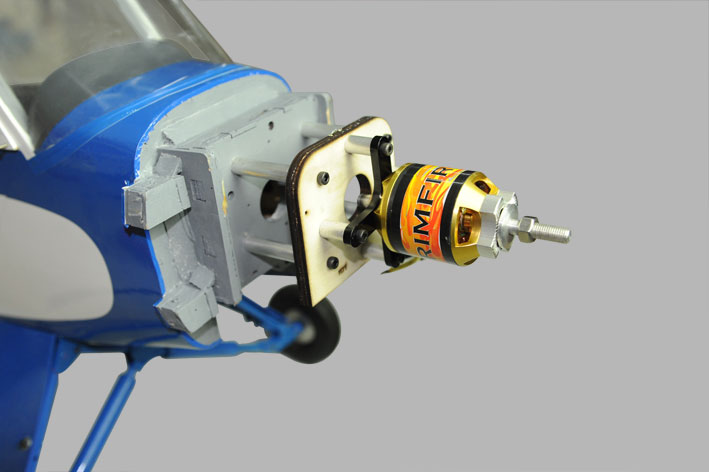

- Motor: RIMFIRE .120 (not included)
- Lipo cell: 5-6 cells / 5500 – 6000mAh (not included)
- Esc: 120-160A (not included)

Feature

- Designed for compatibility with both GP and EP flight
- Top quality balsa/light plywood construction

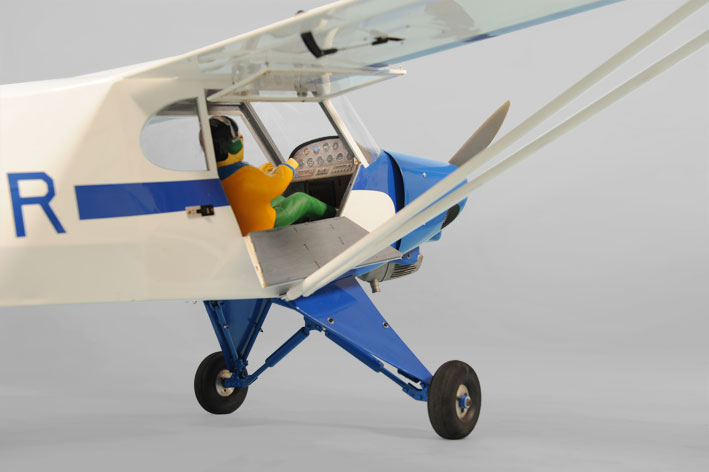

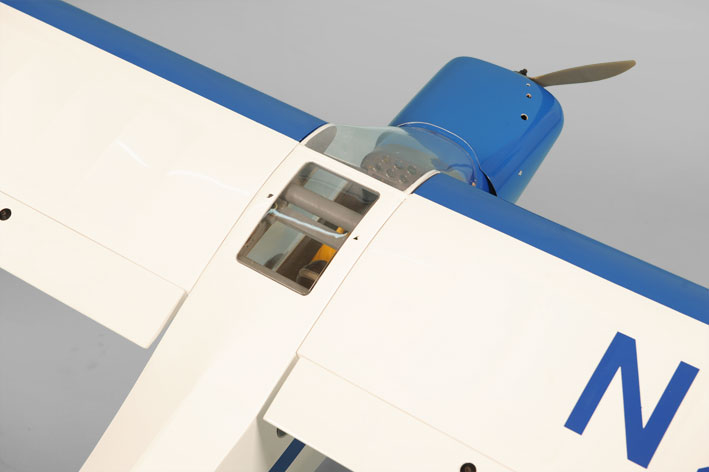

- Full-depth cockpit and instrument panel and pilot included

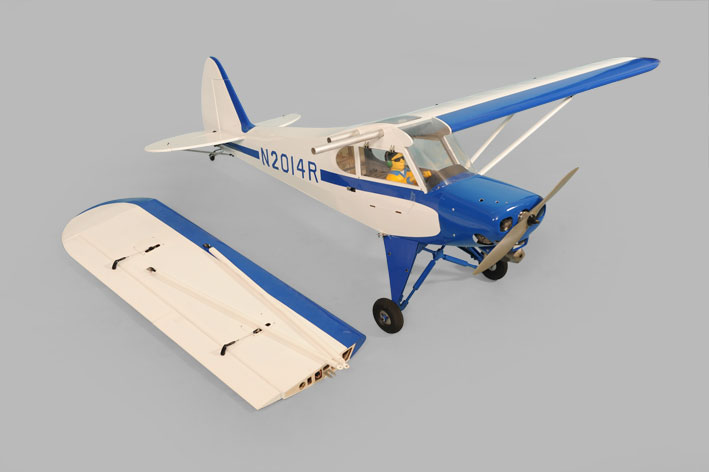

- Bolt-on two-piece wing for easy transport and setup at the field
- Strong Light Weight Construction
- Superb flying characteristics, plus an accurate scale outline

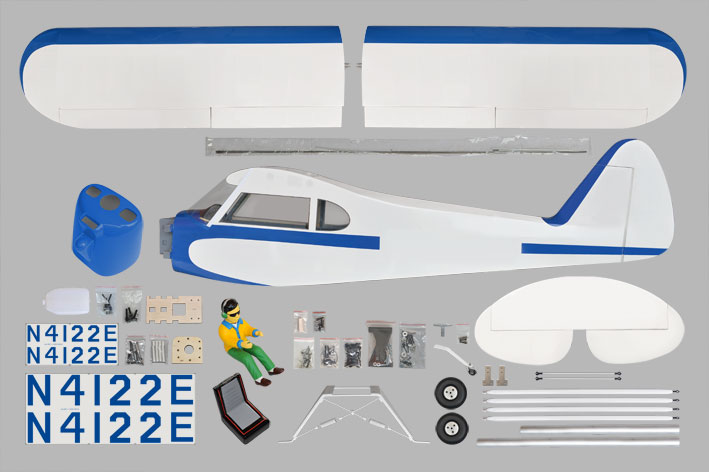

- High-quality hardware package included

Colour chart

-  Blue                (# 21050)
-  White              (# 21010)

Packing

BOX DIMENSION
   -1239mm X 460mm X 238mm (L x W x H)
