Introducing

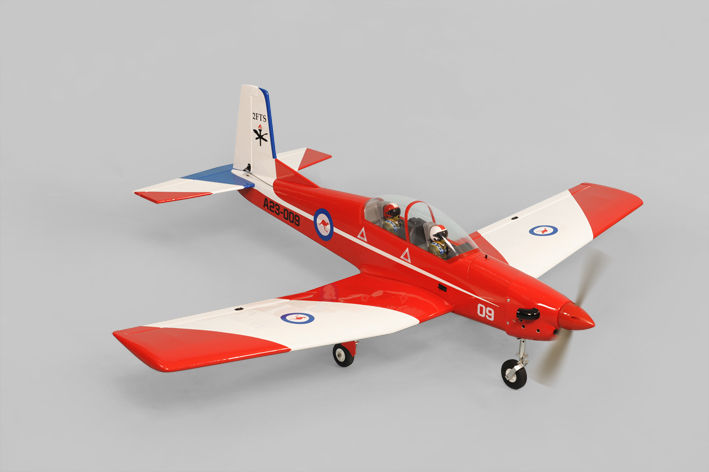

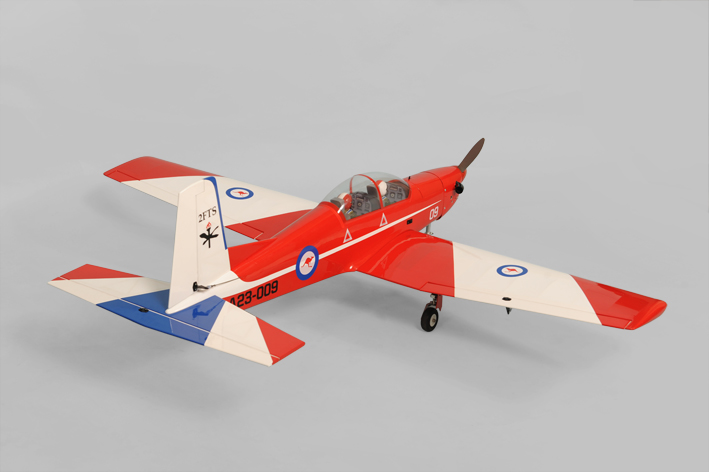

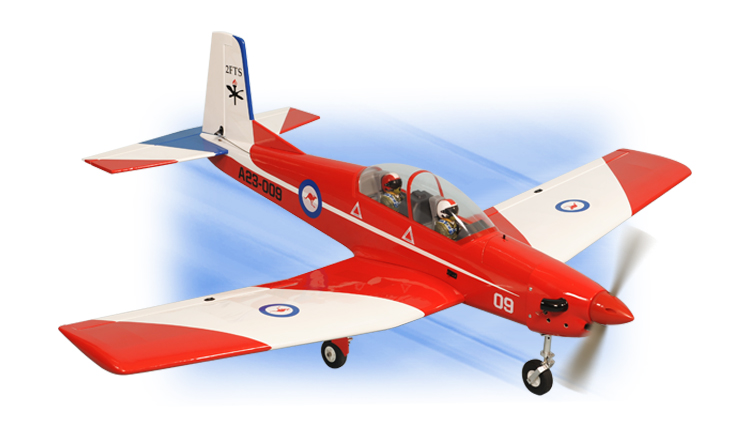

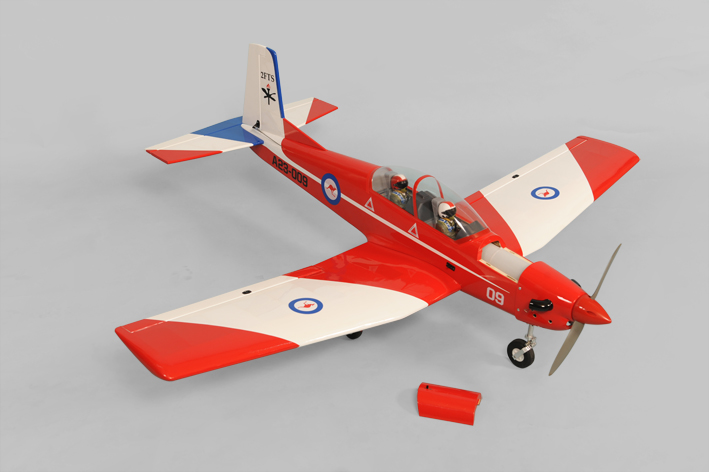

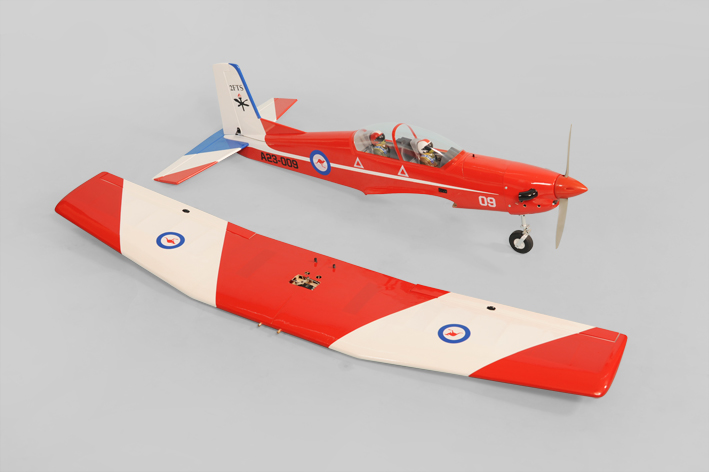

A great airplane! Its semi symmetrical airfoil and long tail moment deliver precise aerobatic performance for experienced pilots, yet the PC 9's superb stability make it an ideal first low–wing model. This ARF has been designed to keep building time to a minimum; it's 90% pre-built, with premium covering. The better you get the more fun it gives you!
Technical data
- Wingspan: 1490mm (58.6in)
- Length: 1270mm (50in)
- Flying weight: 3200gr-3400gr
- Wing area: 39dm2
- Wing loading: 82g/dm2
- Wing type: Naca airfoils

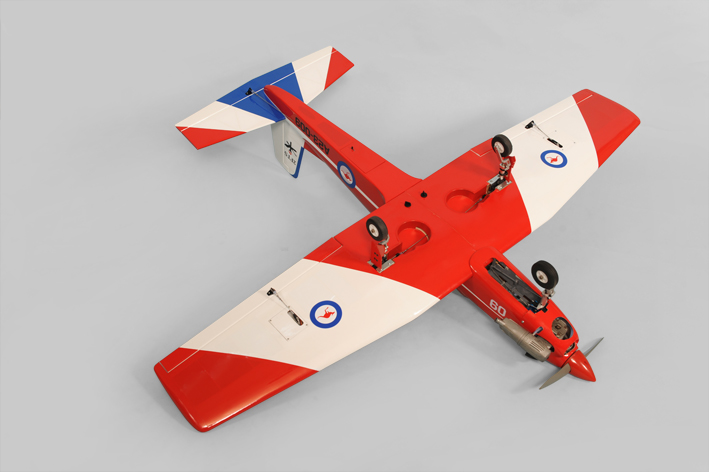

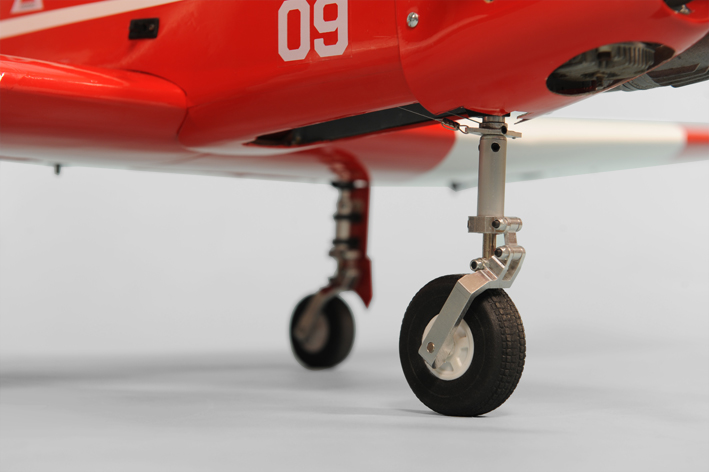

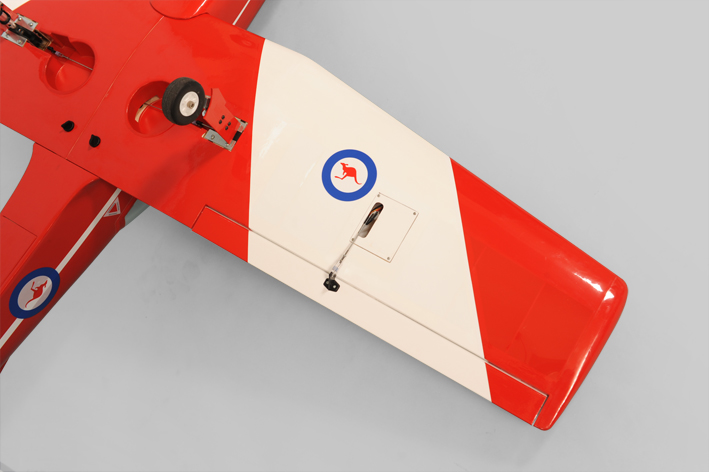

- Gear type: Retract and CNC strut gear (included)
- Plastic Bomb not included (purchasing separately)
- Spinner size: Plastic 58mm (included)
- Radio: 6 channel minimum (not included)
- Servo: 6 standard servo: 2 aileron; 1 elevator; 1 rudder; 1 steering nose; 1 throttle; 2 servo retract futaba S3170G (not included)
- Recommended receiver battery: 4.8-6V / 800-1200mAh NiMH (not included)
- Servo mount: 21mm x 42 mm
- Propeller: suit with your engine

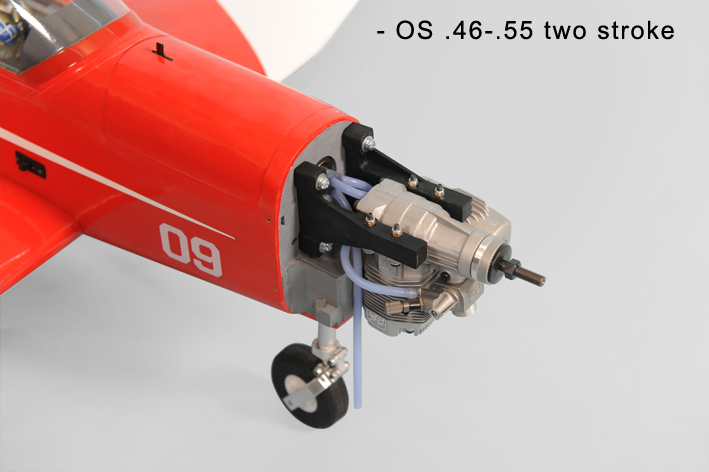

- Engine: .46-.55 / 2-stroke or .52/4-stroke glow engine (not included)

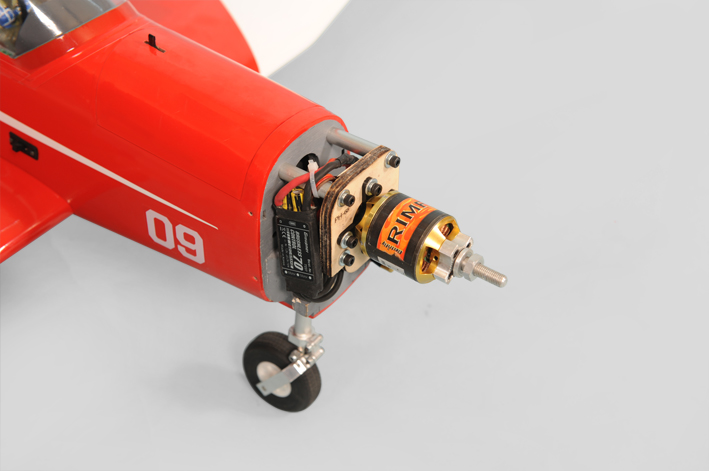

- Motor: brushless outrunner 1000-1400 W, 480 KV (not included)
- Experience level: Intermediate
- Plane type: Scale Military
RECOMMENDED MOTOR AND BATTERY SET UP
- Motor: RIMFIRE .46-.55 (not included)
- Lipo cell: 4-6 cells / 4000 – 5500mAh (not included)
- Esc: 50-80A (not included)
Feature
- Designed for compatibility with both GP and EP flight

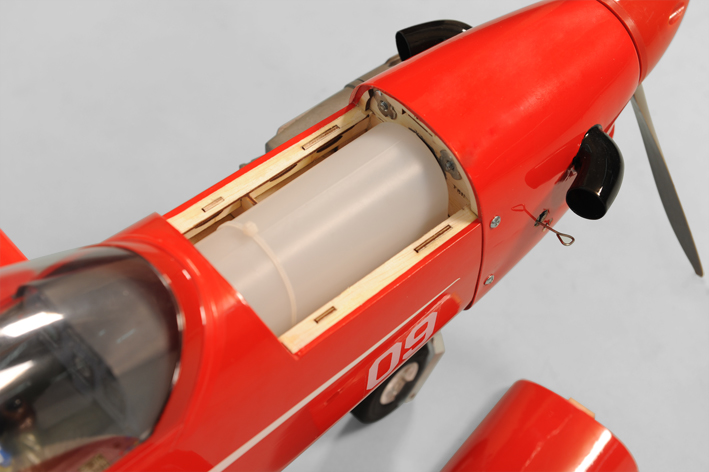

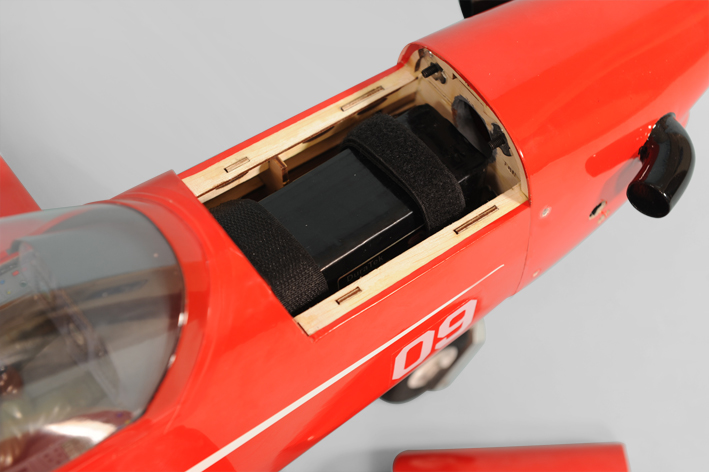

- Removable top hatch for easy change lipo battery and set up radio
- Strong Light Weight Construction
- Superb flying characteristics, plus an accurate scale outline

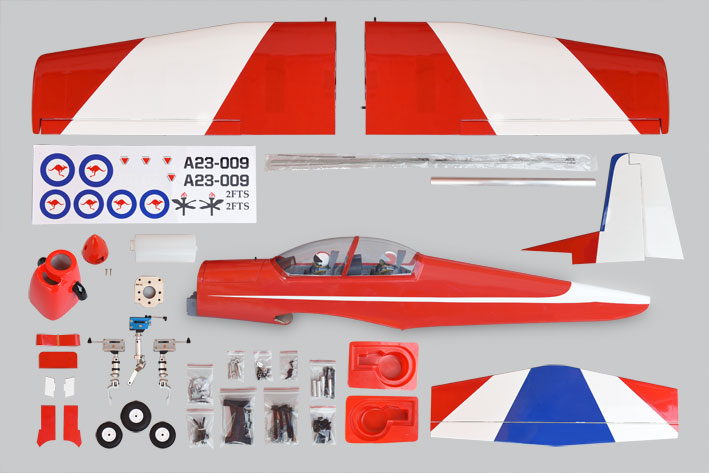

- High-quality hardware package included
Colour chart
- White (# 21010)
- Ferrari Red (# 21023)
- Blue (# 21050)
Packing
BOX DIMENSION
- 1134mm X 355mm X 188mm (L x W x H)
