Introducing

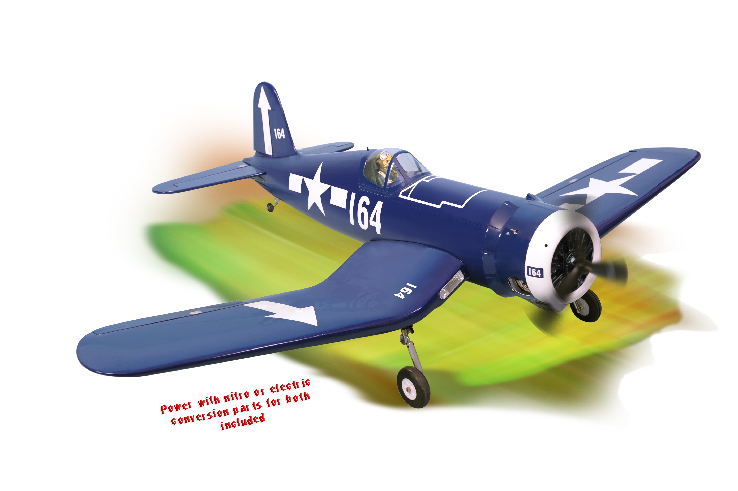

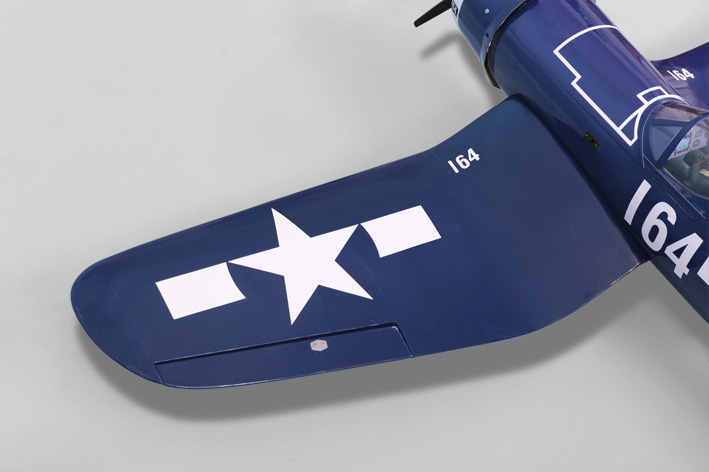

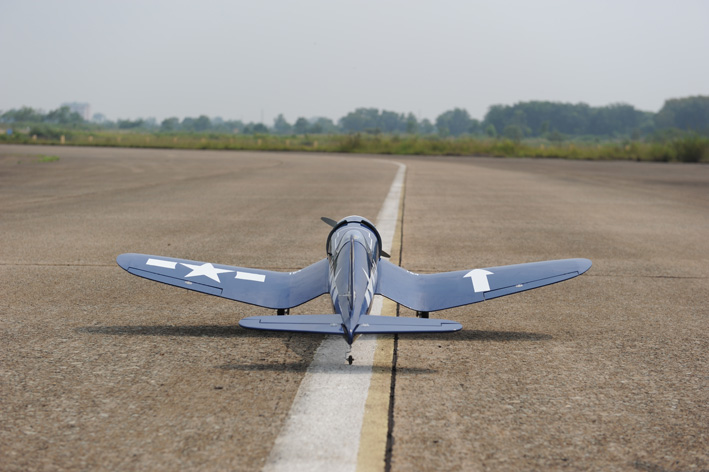

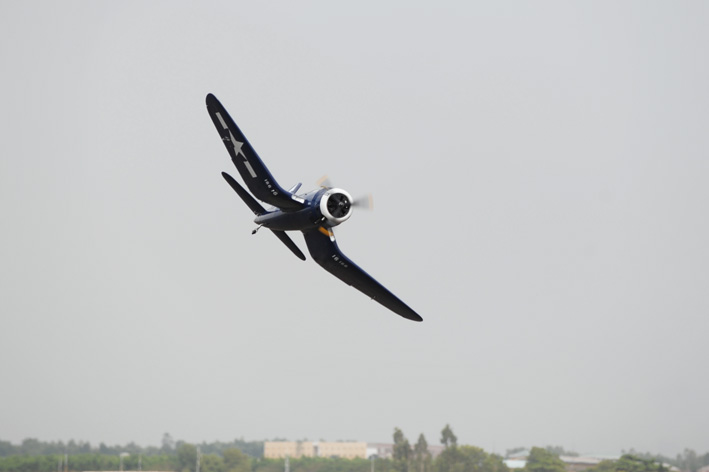

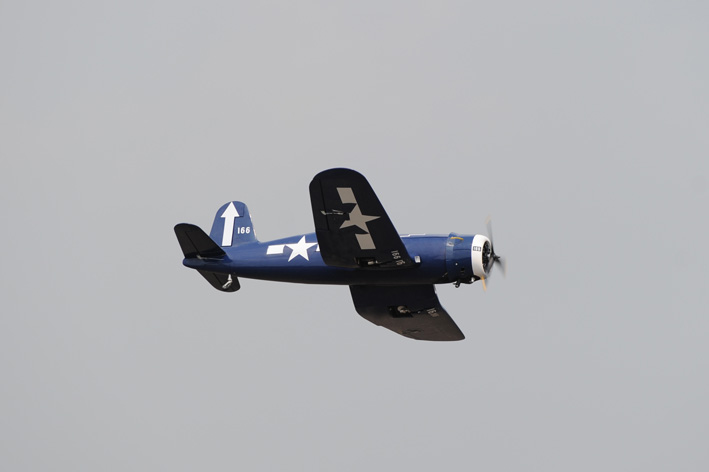

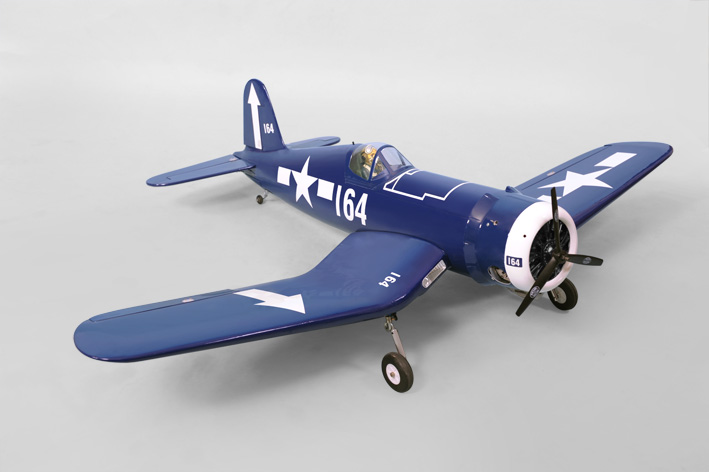

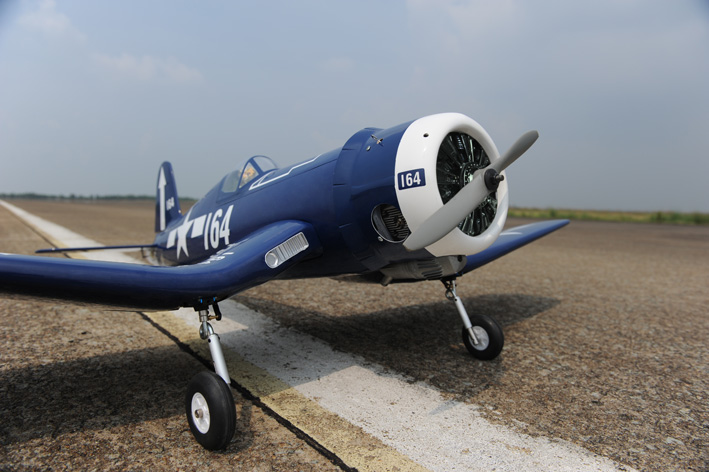

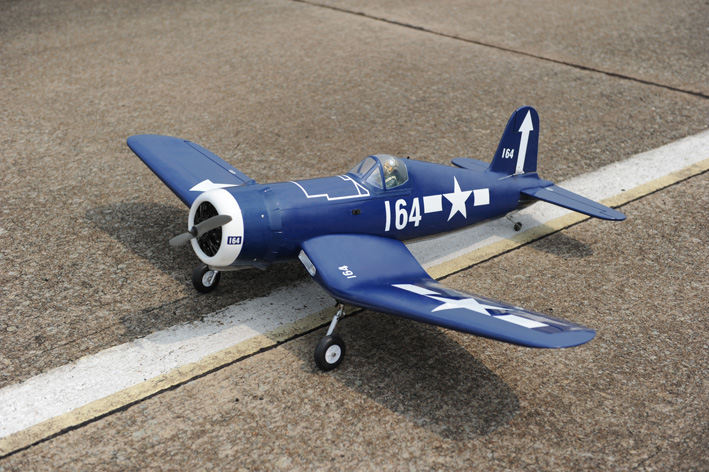

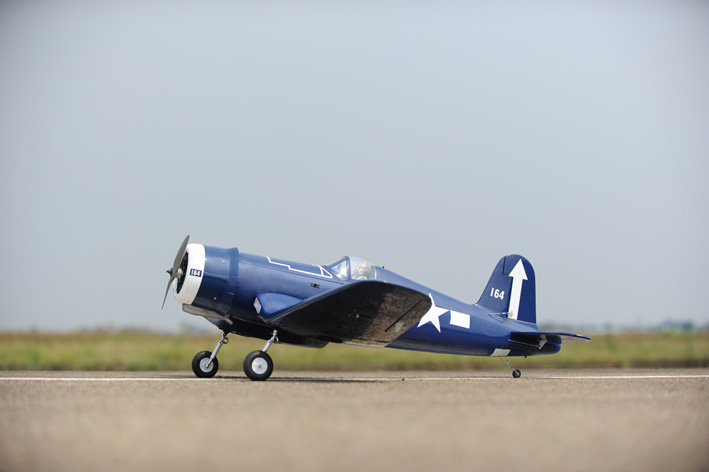

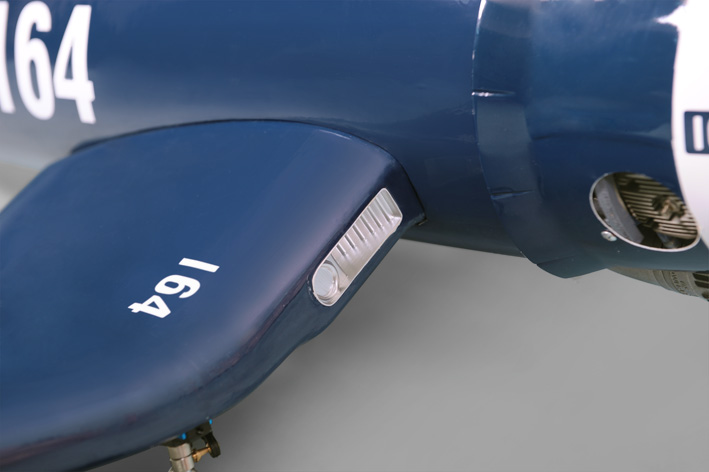

The F4U Corsair was a force to be reckoned with to the Japanese during WWII. With its gull wing design, impressive looks and power, the Corsair was one of the most recognizable WWII aircraft. Phoenix Model has recreated this outstanding Airplane to suit size .46-.55 plug engines. It was designed with the latest laser cut technology .Craftsmanship really shows up on the Corsair’s gull-shaped wing,This superb looking F4U from our top quality and has enough scale detail and features to keep any warbird enthusiast happy
Technical data
- Wingspan: 1485mm (58.5in)
- Length: 1127mm (44.5 in)
- Flying weight: 3000-3300gr
- Wing area: 38.2 dm2
- Wing loading: 75g/dm2
- Wing type: Naca airfoils

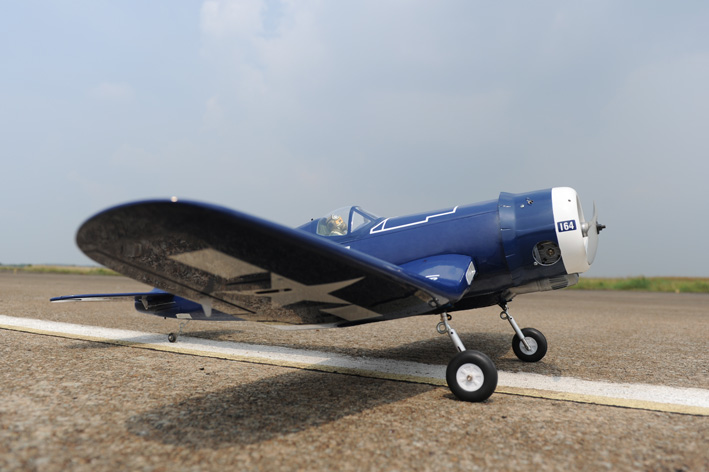

- Gear type: Mechanic rotary 90 degree retract and spring suspension gear (included)
- Spinner size: corsair style (not included)
- Radio: 6 channel minimum (not included)

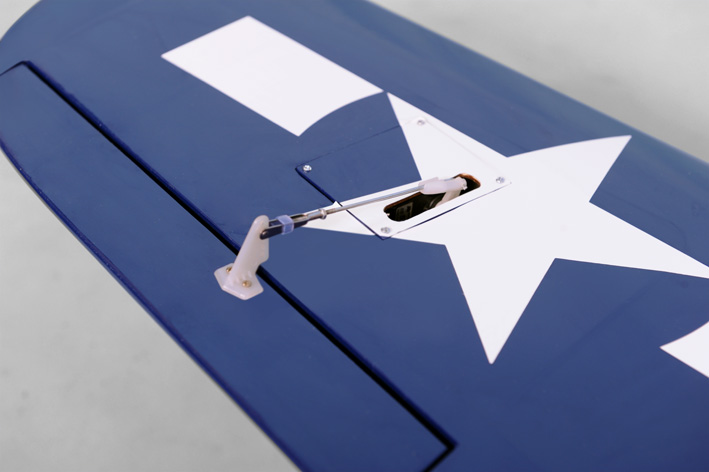

- Servo: 5 standard servo: 2 aileron; 1 elevator; 1 rudder; 1 throttle; 2 servo retract futaba S3170G (not included)
- Recommended receiver battery: 4.8-6V / 800-1200mAh NiMH (not included)
- Servo mount: 21mm x 42 mm
- Propeller: suit with your engine

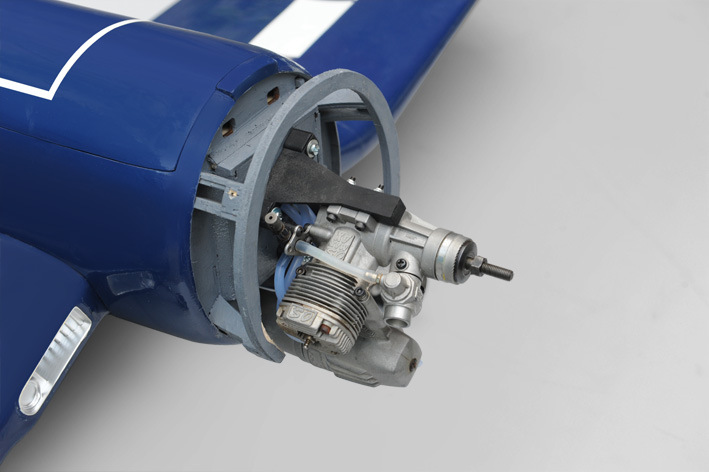

- Engine: .46-.55 / 2-stroke or .52/4-stroke glow engine (not included)
- Motor: brushless outrunner 1000-1400 W, 480 KV (not included)
- Experience level: Intermediate
- Plane type: Scale Military
RECOMMENDED MOTOR AND BATTERY SET UP

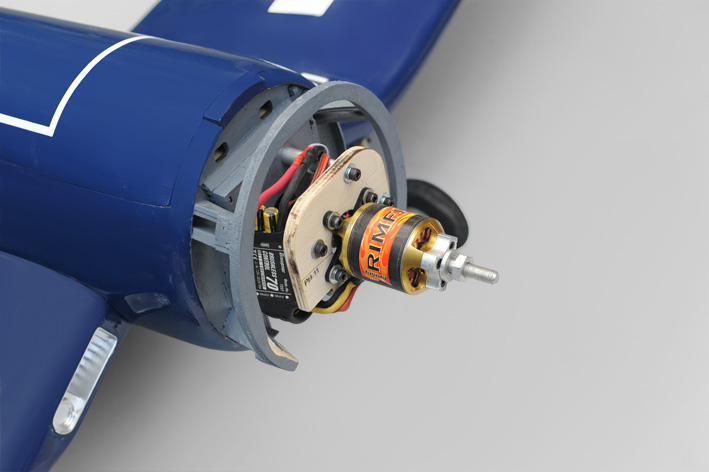

- Motor: RIMFIRE .46-.55 (not included)
- Lipo cell: 6 cells / 4000 – 5500mAh (not included)
- Esc: 50-80A (not included)
Feature
- Designed for compatibility with both GP and EP flight

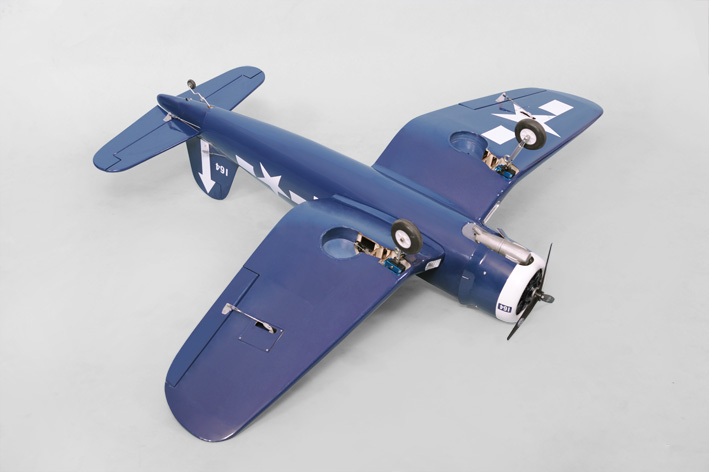

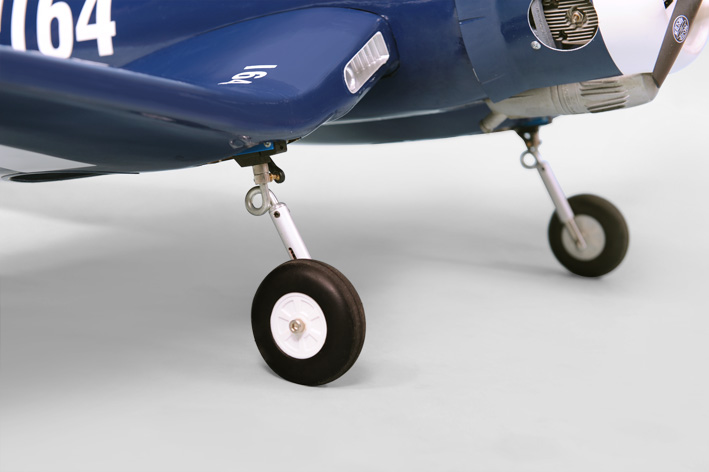

- Retract gear With CNC Suspension Metal Struts included

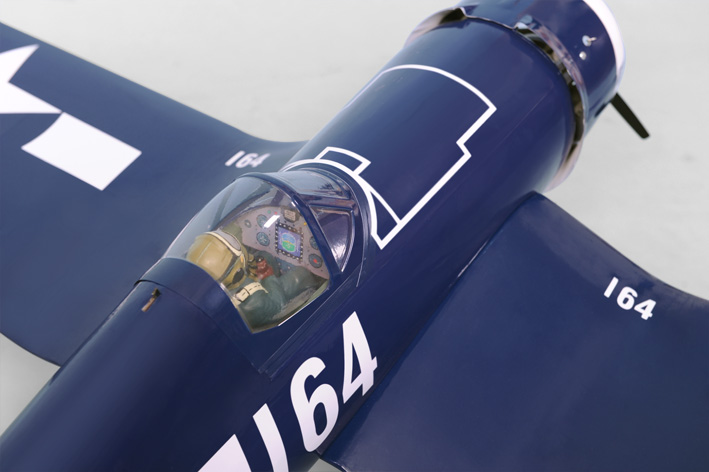

- Full-depth cockpit and instrument panel and pilot included

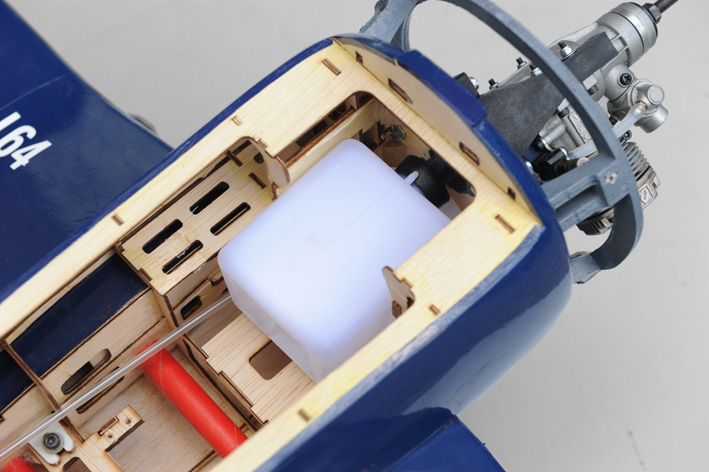

- Top quality balsa/light plywood construction

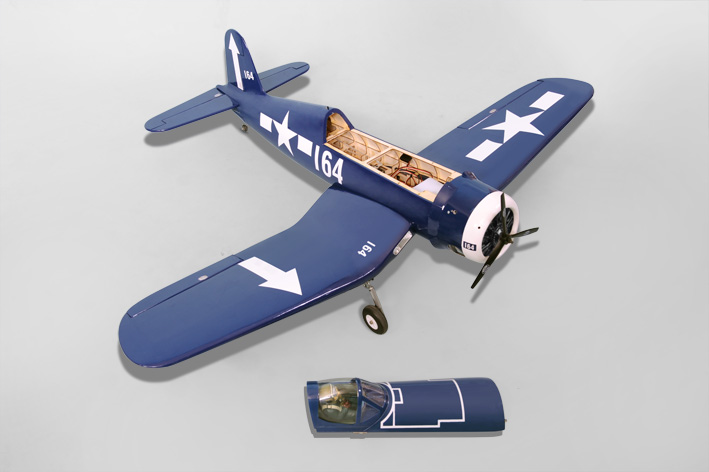

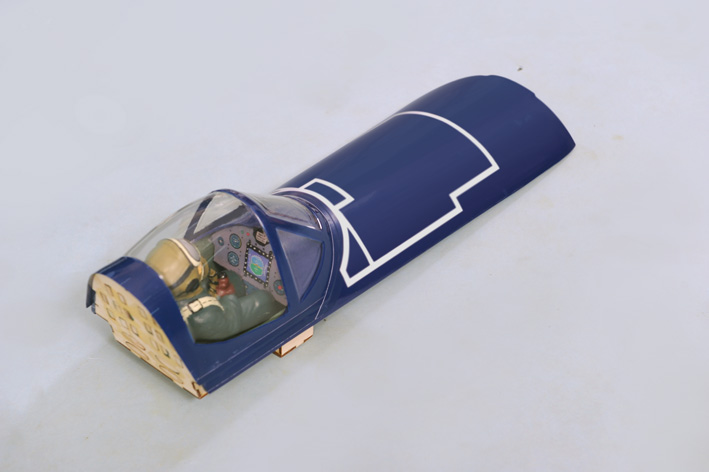

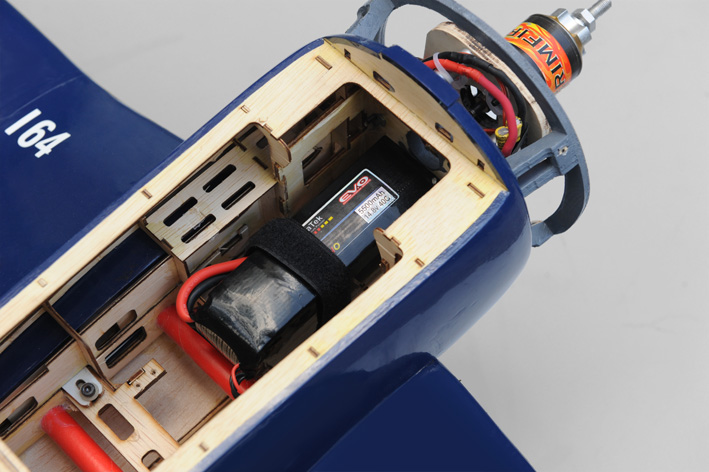

- Removable top hatch for easy change lipo battery and set up radio

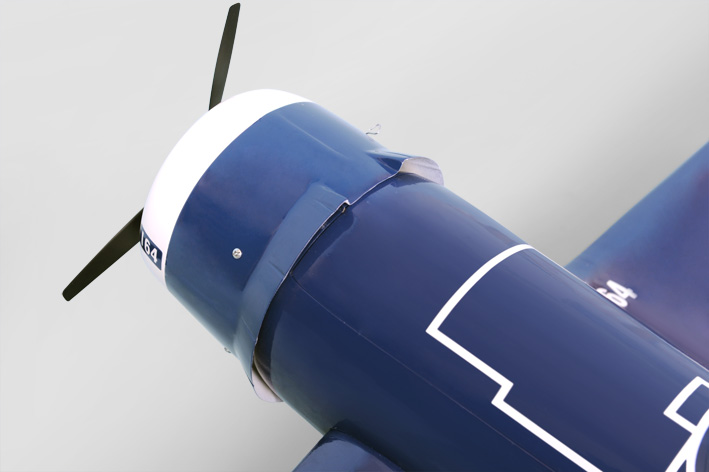

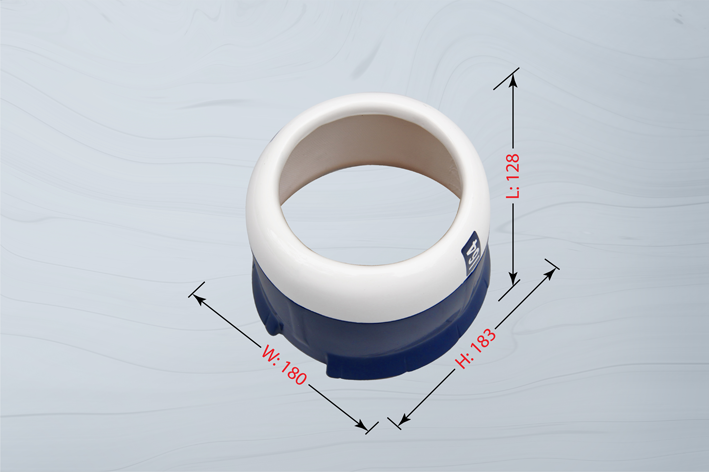

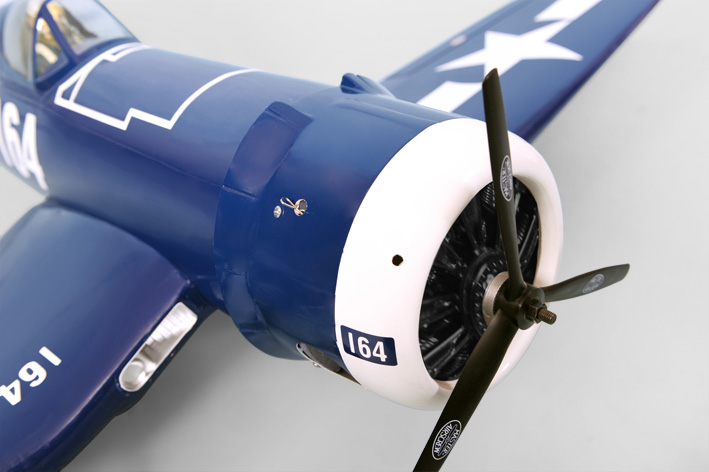

- Scale outline is enhanced by the lightweight fiberglass cowl

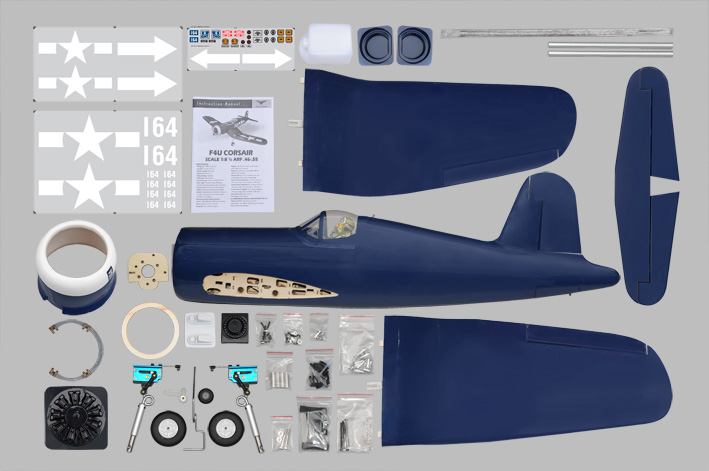

- High-quality hardware package included
Colour chart
- Corsair Blue ( #21019)
- Sky Blue (# 21053)
- Cream (# 21012)
- White (# 21010)
- Ferrari Red (# 21023)
Packing
BOX DIMENSION
- 1044mm X 395mm X 208mm (L x W x H)
