PH142 - TIGER MOTH 30-35CC

PH142 - TIGER MOTH 30-35CC

Introducing

  As the RAF's primary trainer, the Tiger Moth inspired the confidence of fledgling pilots with its exceptionally forgiving flight characteristics.The Tiger Moth went on to become a huge success all over the world and was used by several air forces, it wasn't replaced by the RAF until 1952 when the DH Chipmunk entered service, the "Tiggy" is to this day a very popular choice with pilots all over the world and is known to be rewarding to fly.

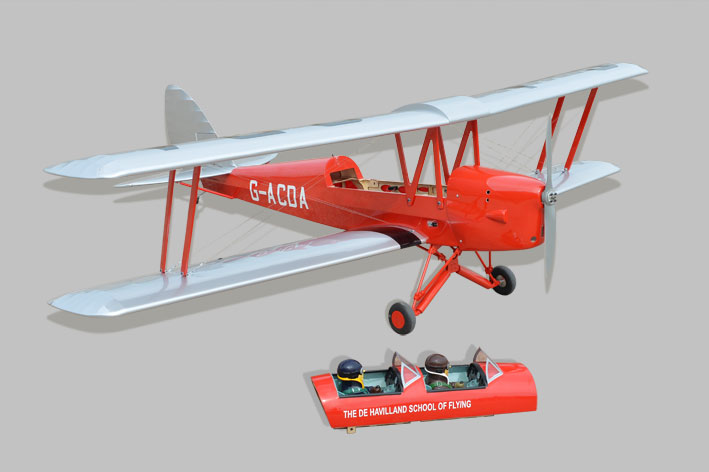

   Phoenix Model has brilliantly captured the spirit of the Tiger Moth with this outstanding, giant-scale recreation. Complete with scale rigging wire, wing struts and undercarriage. The removable canopy hatch allows easy access for battery changes should you choose to set this model up with an electric power system. The wings are removable should you want to disassemble it for transportation or storage.

Technical data

- Wingspan: 2270mm (89.4in)
- Length: 1870mm (73. 6 in)
- Flying weight: 8.4-8.9 kg
- Wing area: 154 dm2
- Wing loading: 69g/dm2
- Wing type: Naca profile
- Spinner size: scale type (not included)
- Radio: 4 channel minimum (not included)
- Servo:  6 standard hi-torque servo: 2 aileron; 2 elevator; 1 rudder; 1 throttle (not included)
- Recommended receiver battery: 4.8-6V / 1200-2000mAh NiMH (not included)
- Propeller: suit with your engine
- Engine: 30-35cc gas engine (not included)
- Motor: brushless outrunner 2500 W, 250 KV (not included)
- Experience level: Intermediate
- Plane type: Scale Civilian
RECOMMENDED MOTOR AND BATTERY SET UP
- Motor: RIMFIRE 1.60 (not included)
- Lipo cell: 12 cells / 5000 – 6000mAh (not included)
- Esc: 80-100A (not included)

Feature

- Designed for compatibility with both GP and EP flight

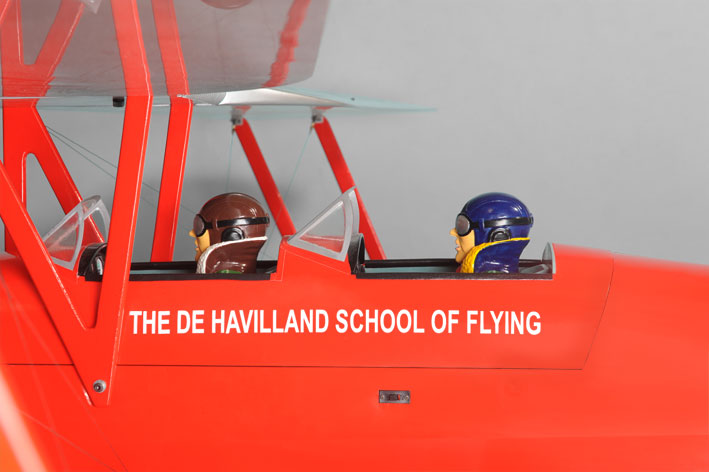

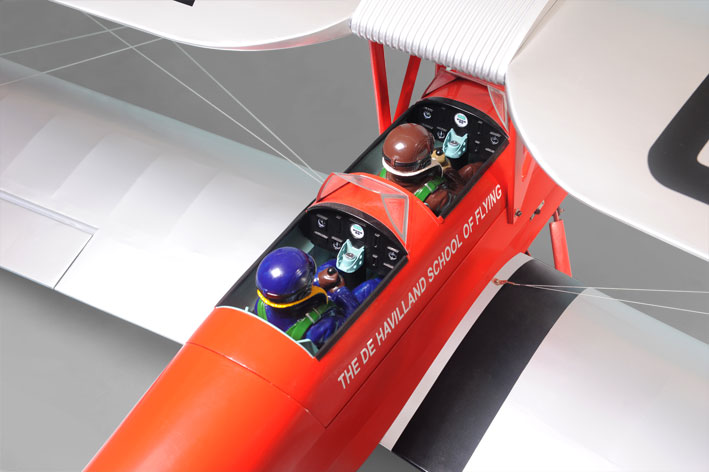

- Detailed instrument panels
- True-to-scale outline
- Top quality balsa/light plywood construction
- Scale wire rigging

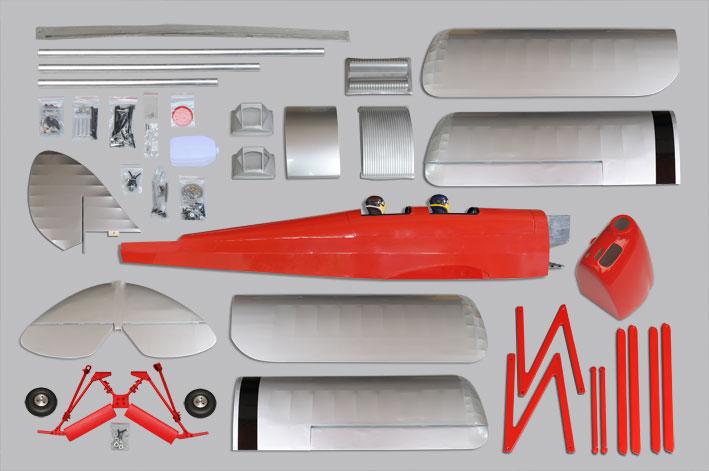

- All hardware included

Colour chart

-  Silver              ( #21091)
-  Ferrari Red    ( #21023)
-  Black               (# 21071)

Packing

BOX DIMENSION
   - 1509mm X 405mm X 353mm (L x W x H)

PH142 - TIGER MOTH 30-35CC

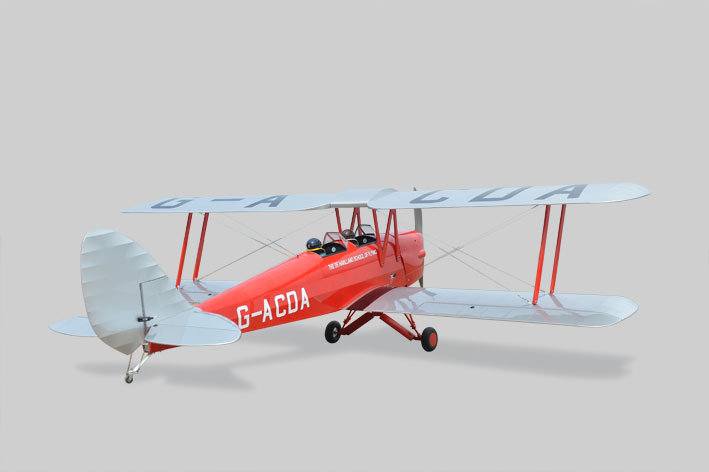

2776ef4d-f36f-411c-8b70-f9fddaed89aa-PH142-Tiger-Moth-01.jpg - Aircraft model - phoenixmodel
c1b9831e-0f2a-47a8-b340-c5f018307aca-PH142-Tiger-Moth-02.jpg - Aircraft model - phoenixmodel

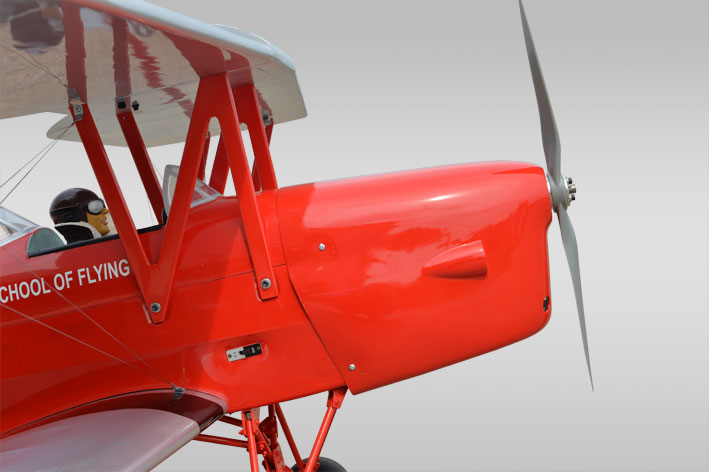

4a2e6951-a68a-4511-a898-fa3c0f3635a7-PH142-Tiger-Moth-03.jpg - Aircraft model - phoenixmodel

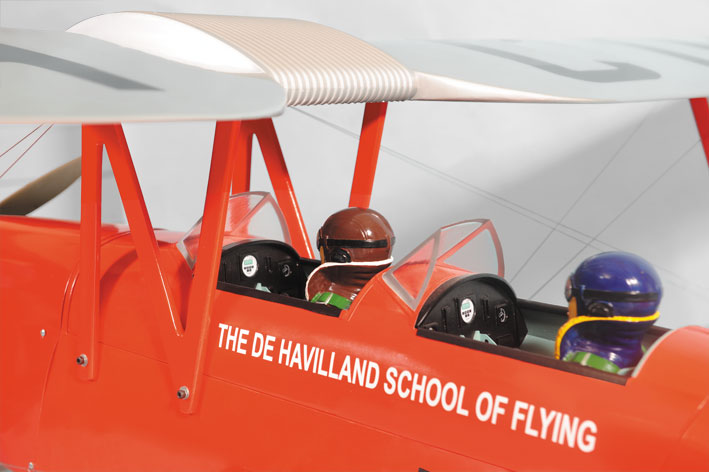

d898e36a-4152-44c1-afbc-ff0937c7421f-PH142-Tiger-Moth-04.jpg - Aircraft model - phoenixmodel
49a722e1-37ab-472b-8034-afda7a503b9b-PH142-Tiger-Moth-05.jpg - Aircraft model - phoenixmodel
c0e6c76b-441d-472f-bca2-e355fb1b9399-PH142-Tiger-Moth-06.jpg - Aircraft model - phoenixmodel

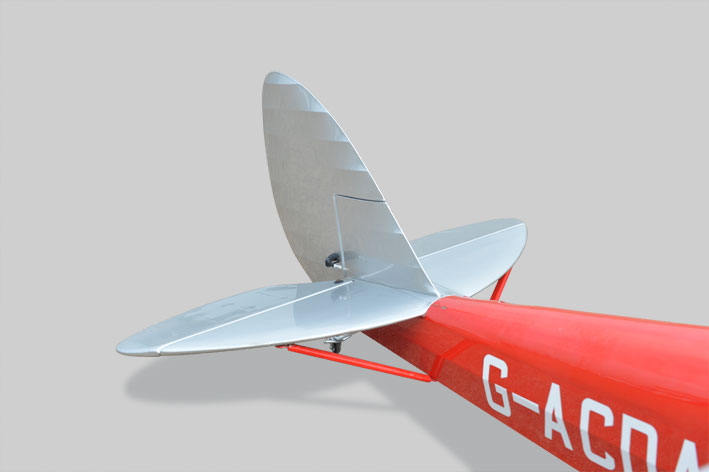

7a3f6db3-3bef-4e21-a3b2-956539dc6eee-PH142-Tiger-Moth-07.jpg - Aircraft model - phoenixmodel
9eacfc01-feeb-4693-bd8a-c0a16d486cf6-PH142-Tiger-Moth-08.jpg - Aircraft model - phoenixmodel

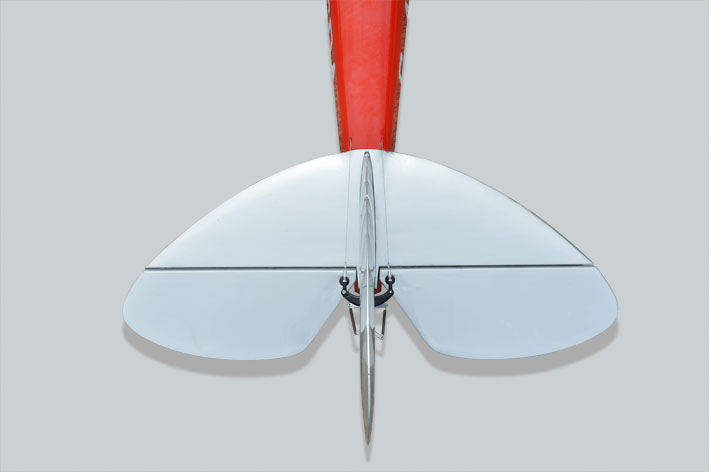

10ae1304-b754-4504-9fa3-9aca1c008d02-PH142-Tiger-Moth-09.jpg - Aircraft model - phoenixmodel
47d81ee5-2a8c-4489-ac5e-8039b7eac2b0-PH142-Tiger-Moth-10.jpg - Aircraft model - phoenixmodel

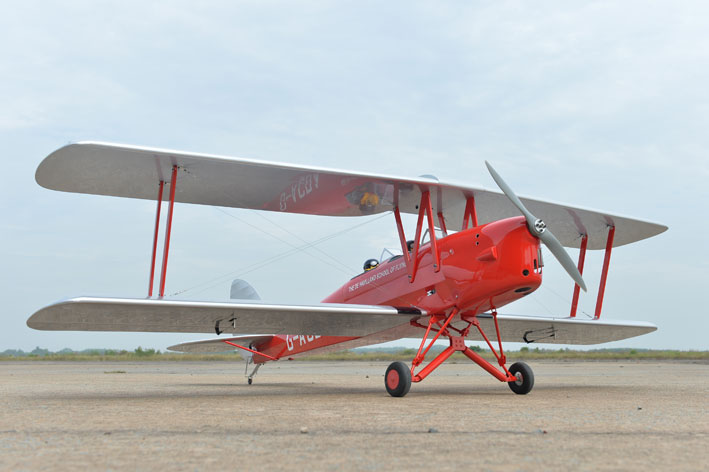

PH142-Tiger-Moth-11.jpg - Aircraft model - phoenixmodel

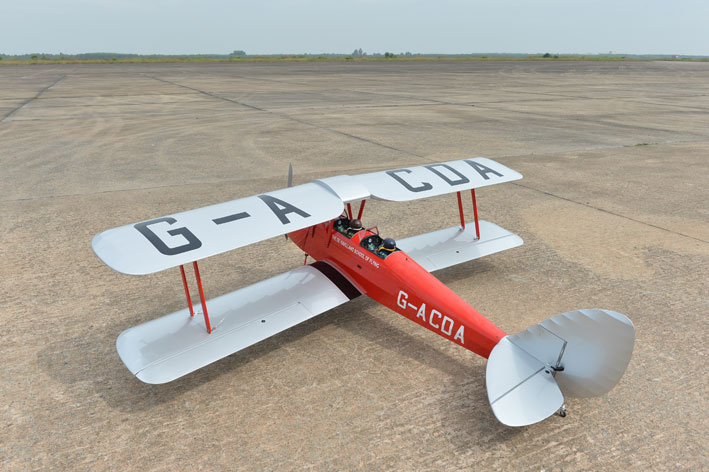

8c074794-aff5-44fe-8dac-41458e911110-PH142-Tiger-Moth-12.jpg - Aircraft model - phoenixmodel
be53f0cc-38ee-4645-bca2-df48b2aef82c-PH142-Tiger-Moth-13.jpg - Aircraft model - phoenixmodel
b093bf9a-6e71-412e-8737-4e0fcadaf07b-PH142-Tiger-Moth-14.jpg - Aircraft model - phoenixmodel

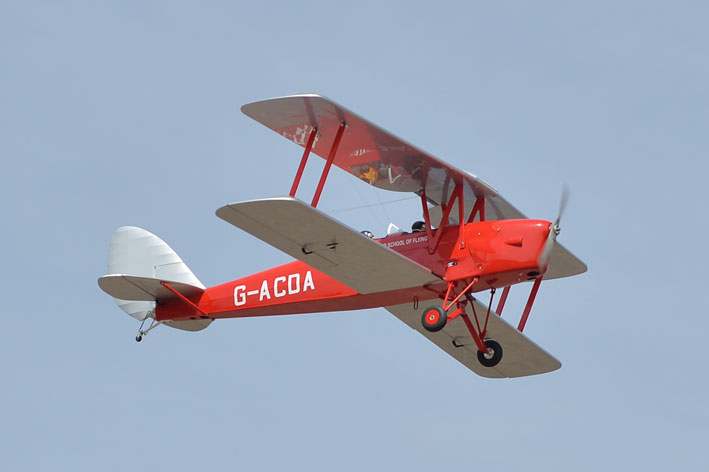

df4df204-6e7e-49c4-88e9-c118faa64dc3-PH142-Tiger-Moth-15.jpg - Aircraft model - phoenixmodel
d6b8cc28-adf3-4117-b675-209f1a0c67ce-PH142-Tiger-Moth-16.jpg - Aircraft model - phoenixmodel

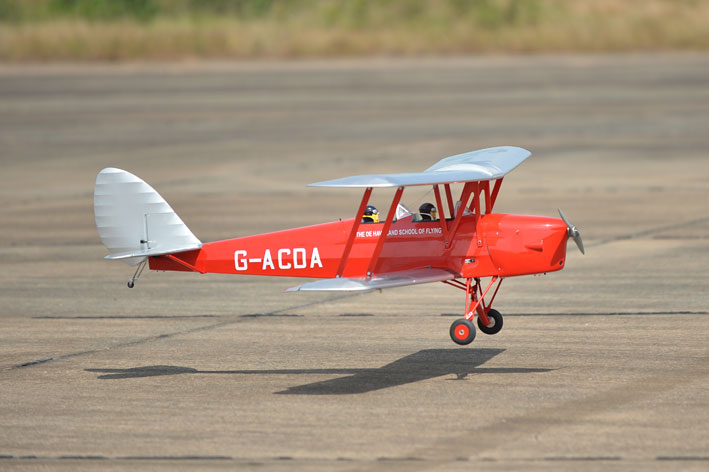

625e2daf-1c46-4697-8a42-d112435735ef-PH142-Tiger-Moth-17.jpg - Aircraft model - phoenixmodel
b93a3826-36de-43e8-8628-fd48bd7d1ca0-PH142-Tiger-Moth-18.jpg - Aircraft model - phoenixmodel

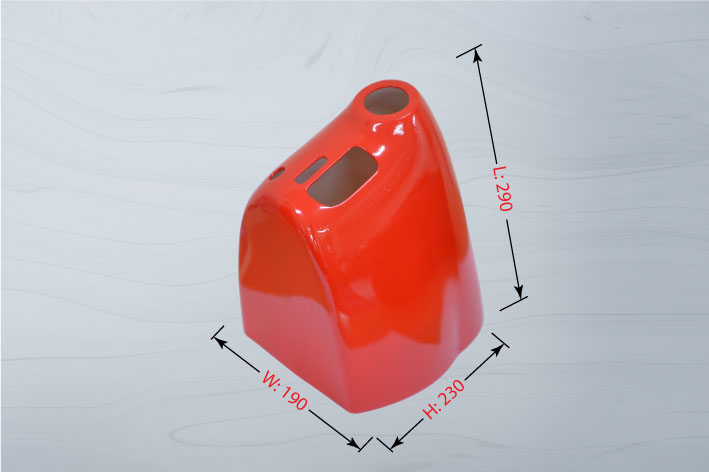

f1ed97c0-ea90-404e-aac8-695037374f72-PH142-Tiger-Moth-19.jpg - Aircraft model - phoenixmodel
