Introducing

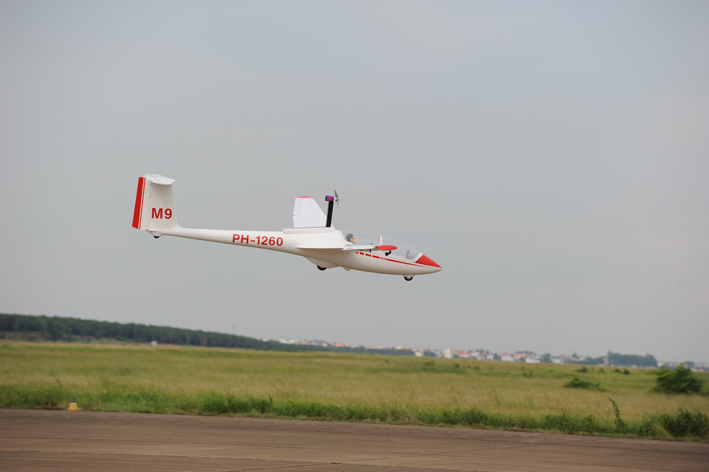

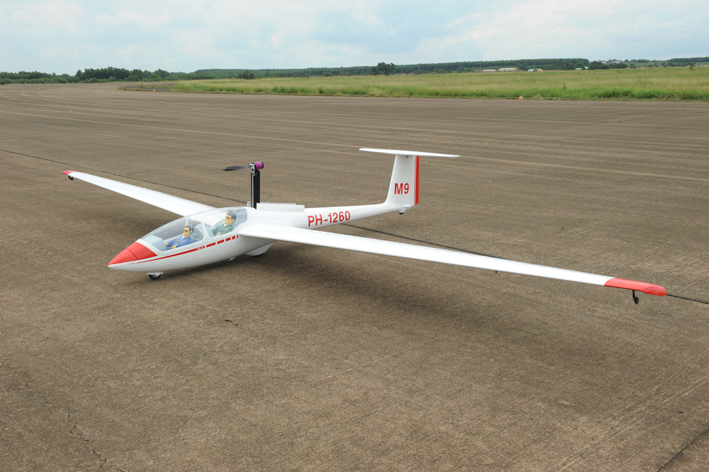

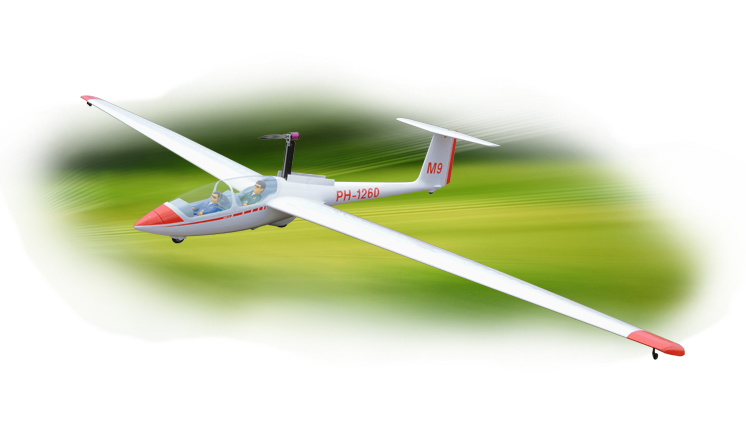

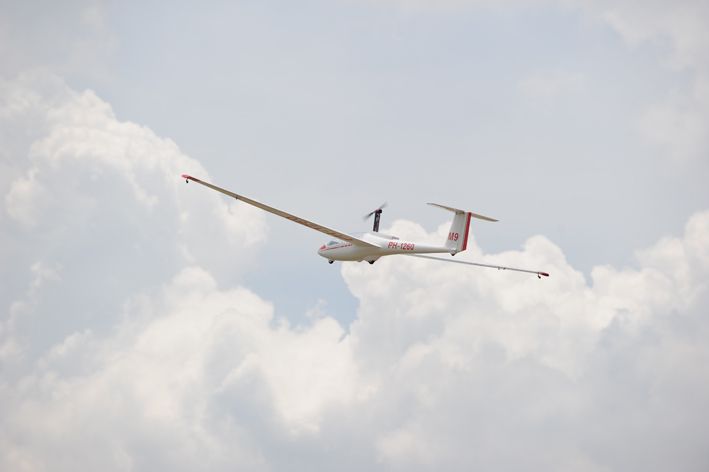

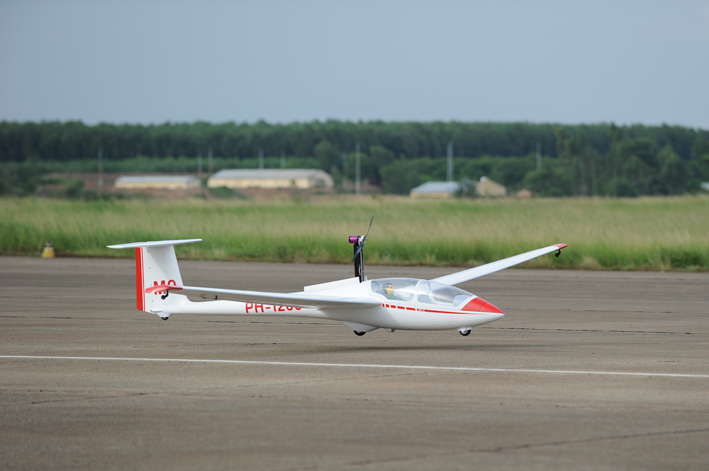

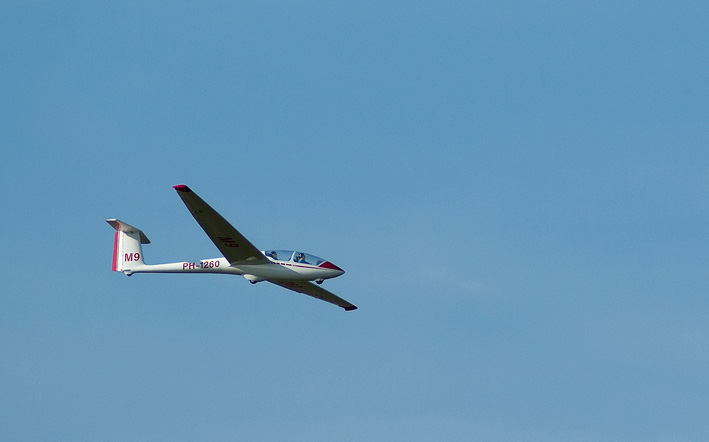

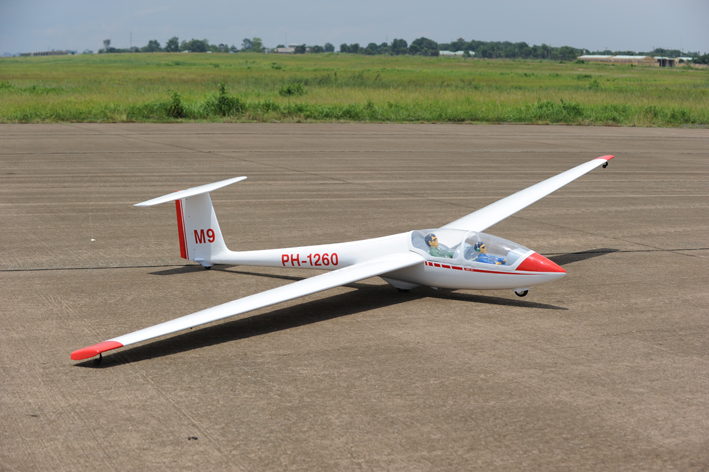

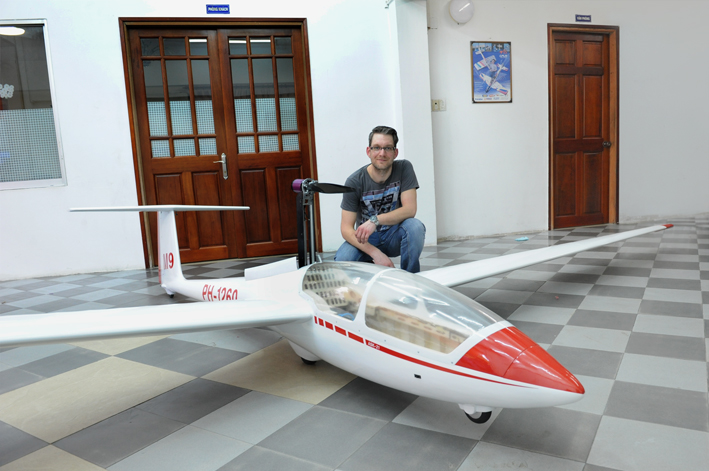

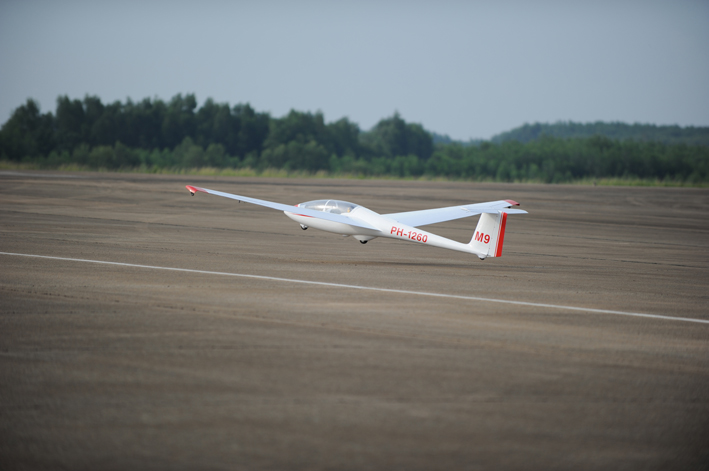

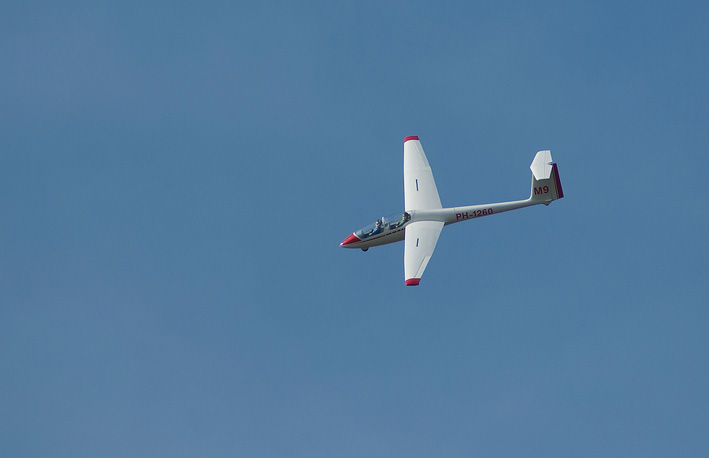

The ASK-21 plane is an elegant, fully-functional many channel aircraft that, at altitude, is capable of loops and rolls, as well as thermal or slope soaring that's popular around the world. Lightweight and sleek, its is to offer the silky-smooth experience of flying a Giant-Scale sailplane. The ASK-21 is one of the most famous of Phoenix Model.
Technical data
- Wingspan: 6500mm (255.9 in)
- Length: 3257mm (128,2 in)
- Flying weight: 18-24 kg
- Wing area: 266.5 dm2
- Wing loading: 69g/dm2
- Wing type: HQ - Wortmann airfoils
- Radio: 6 channel minimum (not included)
- Servo: 10 standard hi-torque servo: 4 aileron; 2 elevator; 1 rudder;1 retract SLS; 2 window (not included)
- Recommended receiver battery: 6.0V 2400/2600mAh NiMH (2) (not included)
- Servo mount: 21mm x 42 mm
- Flap: 2-4 electric flaps 440mm (not included)
- Propeller: suit with your engine
- Motor: brushless outrunner 2600-3000 W, 149 KV (not included)
- Experience level: Intermediate
- Plane type: Giant Scale Sailplane
RECOMMENDED MOTOR AND BATTERY SET UP
- Motor: hacker brushless a60-18l kv149 (not included)
- Propeller: hacker 20x13; 23x12 foilding (not included)
- Lipo cell: 12 cells / 5000 – 6000mAh (not included)
- Esc: 120-160A / HV (not included)
Feature
-Elegant scale appearance with outstanding thermal performance

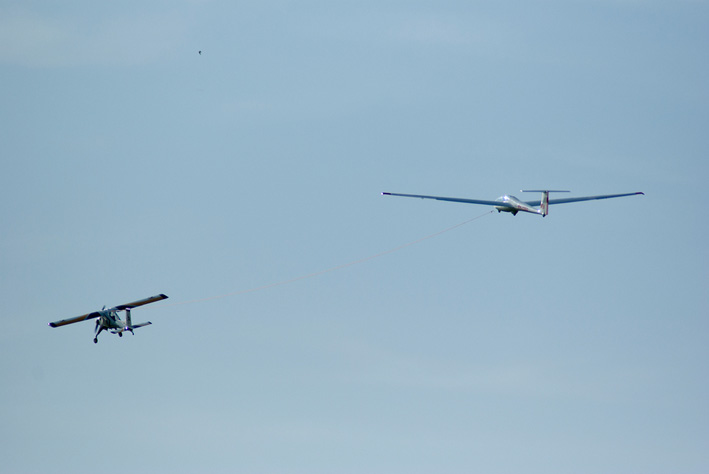

-Perfect for ridge slope soaring or towed to height looking for thermals

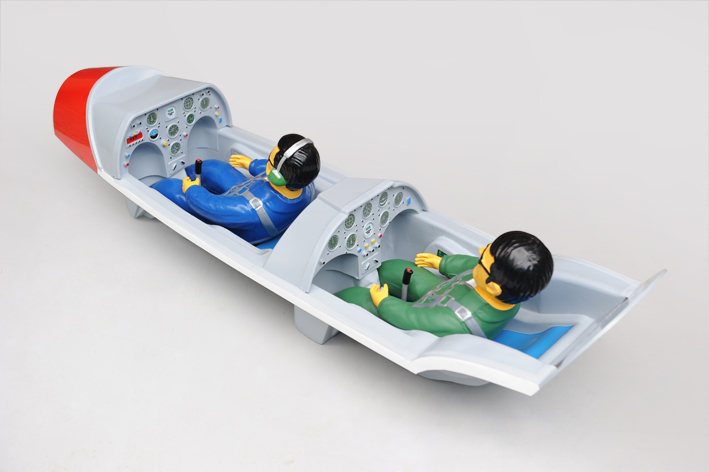

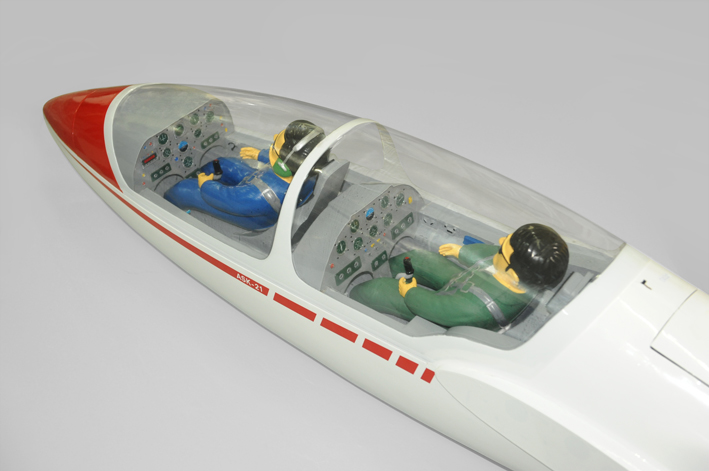

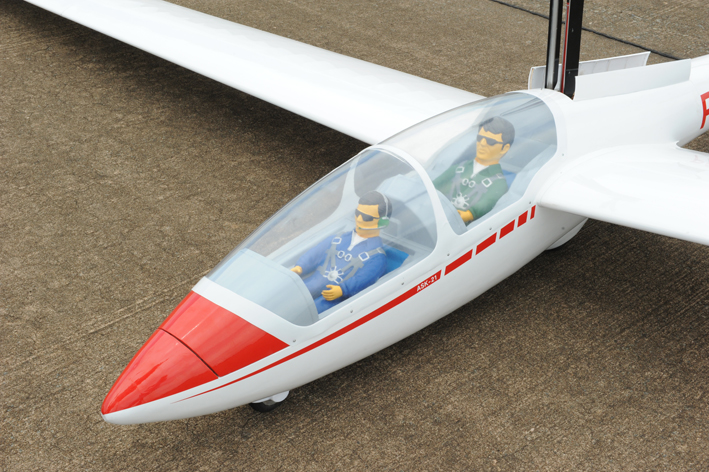

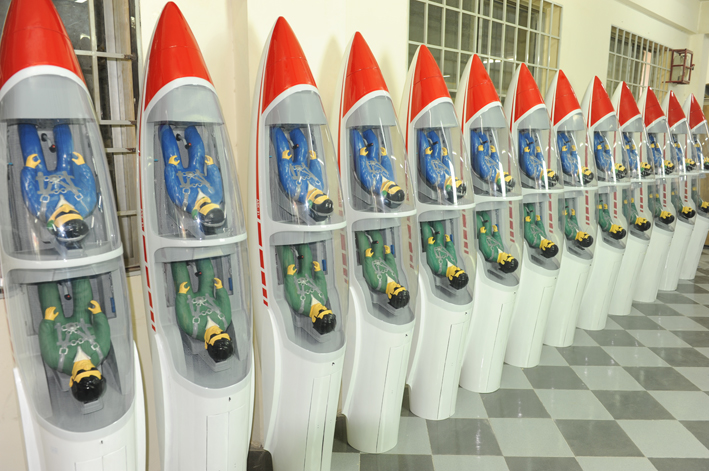

-Detailed scale cockpit with ultra lightweight pilot included
-Extremely lightweight laser-cut all-wood construction
-Separate fuselage and wing structure allows compact transportation
-High-quality hardware package included

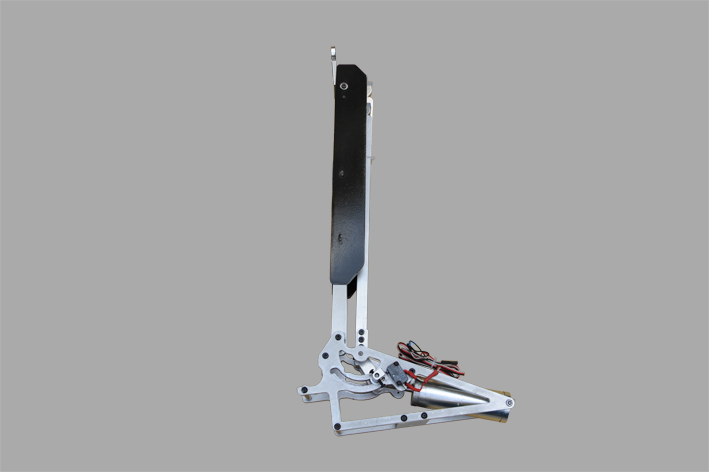

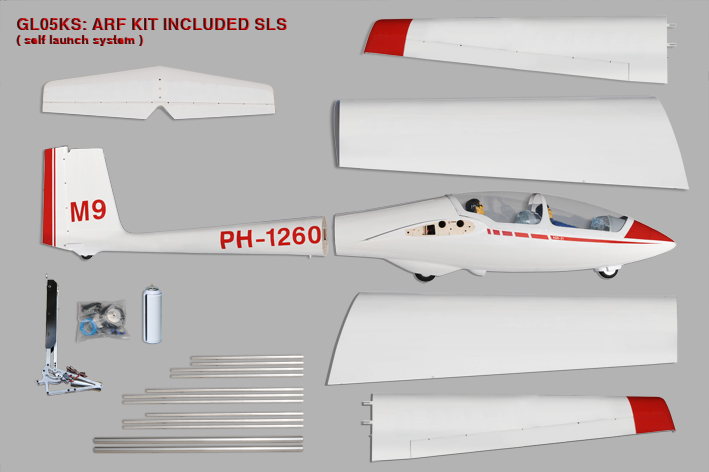

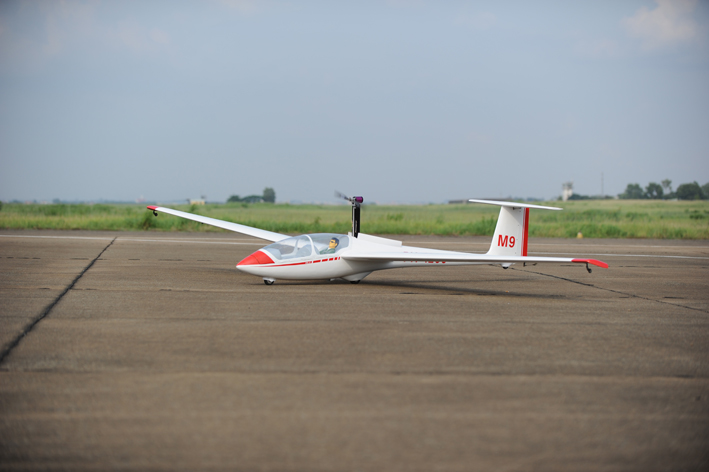

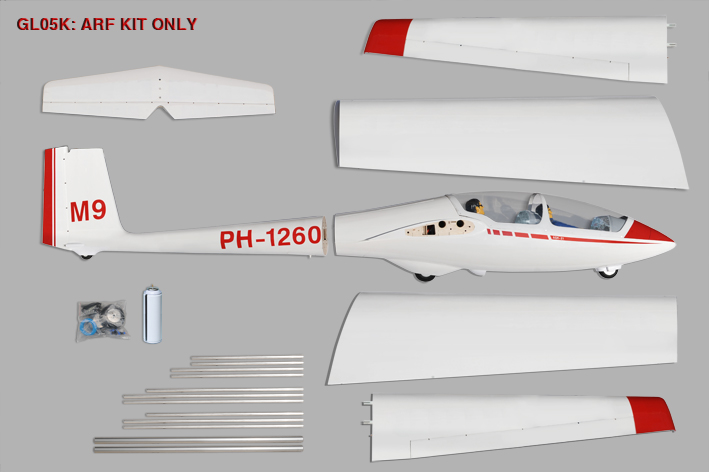

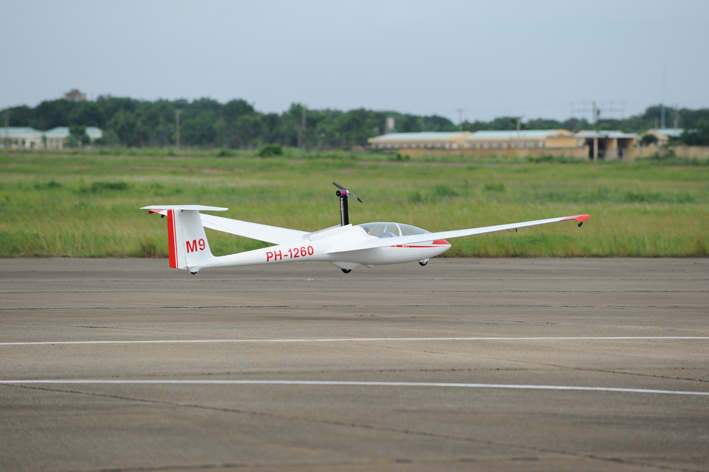

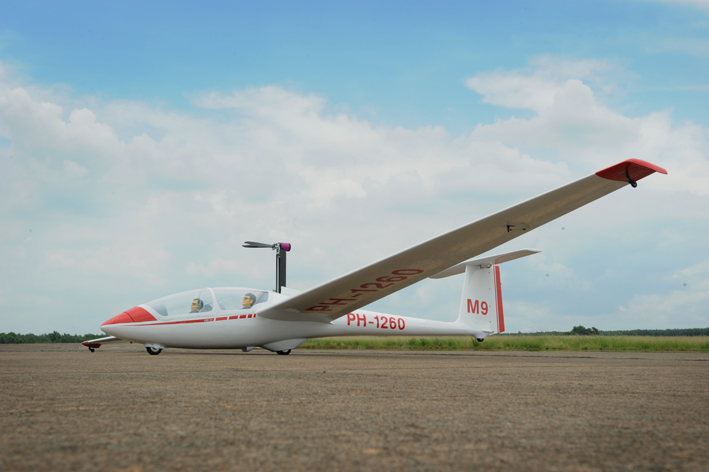

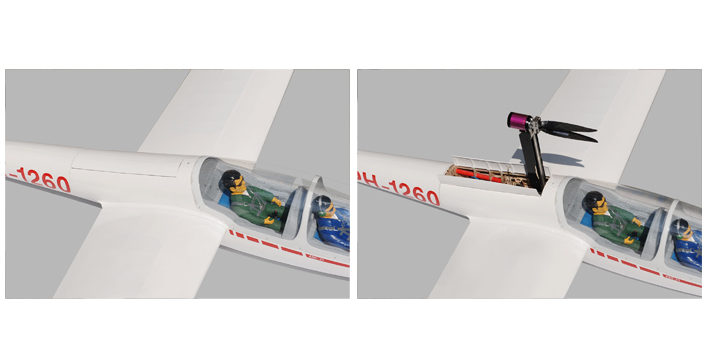

- Available with two version : GL05K: ASK-21 kit ARF only (not included SLS) and GL05KS: ASK-21 kit ARF + SLS (self launch system)
Colour chart
- White (# 21010)
- Ferrari Red (# 21023)
