Introducing

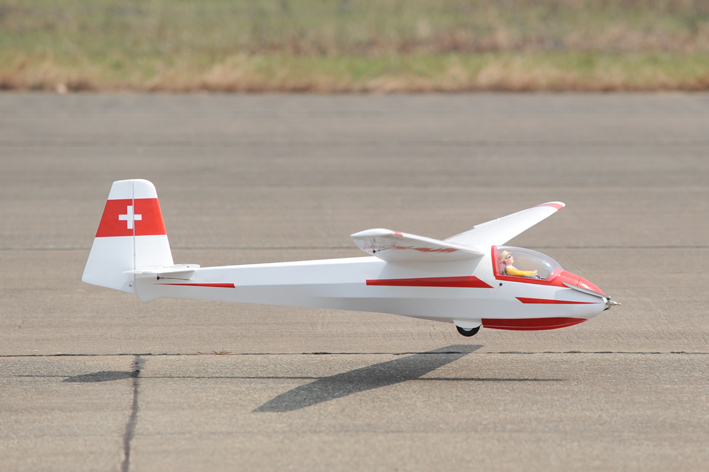

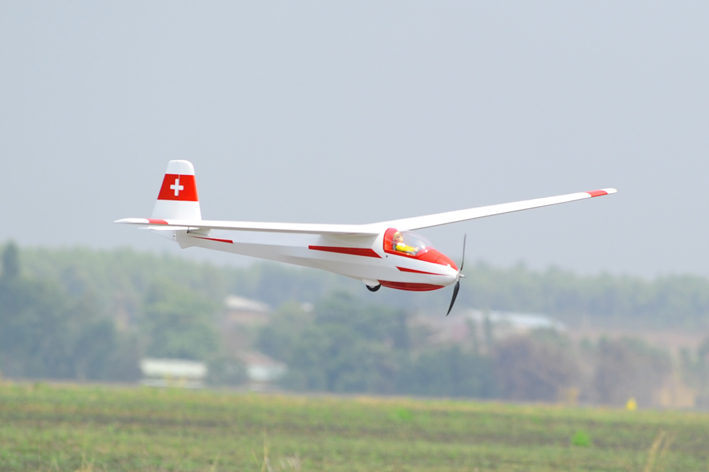

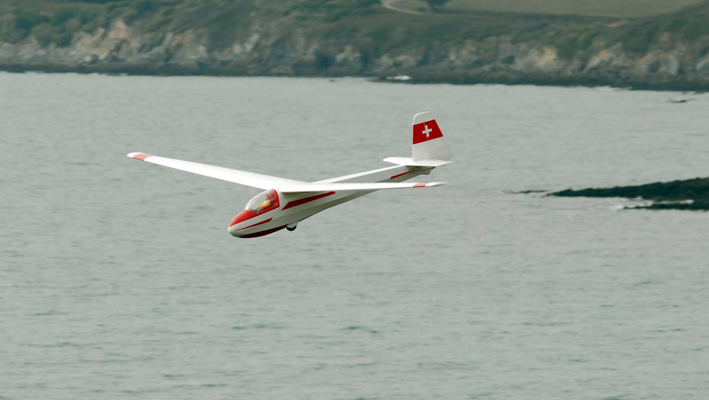

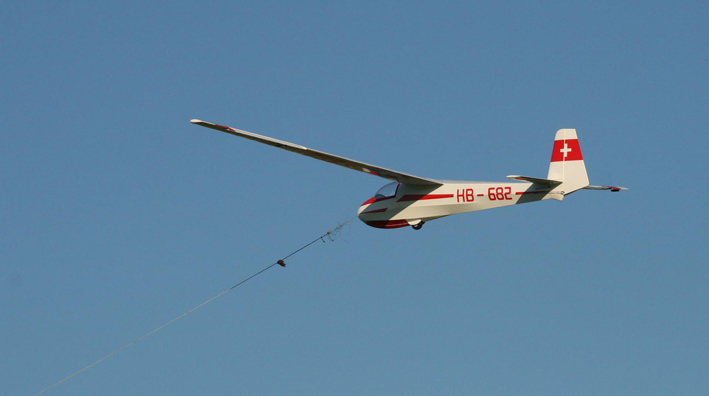

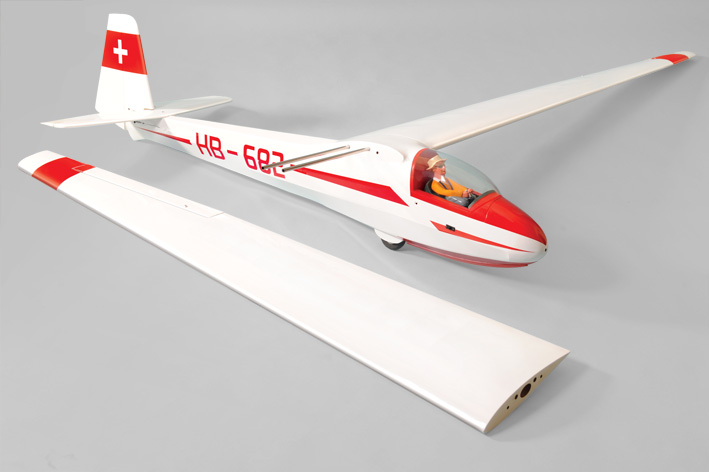

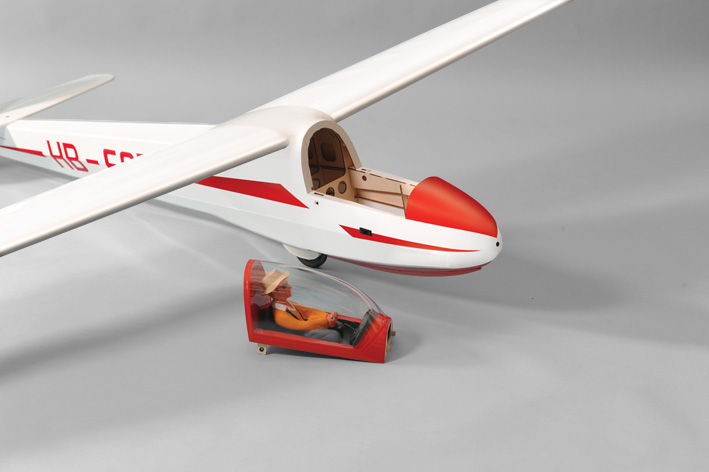

Phoenix Model introduces the Ka-8b ,a scale 3.5m sailplane designed with the sport enthusiast in mind. Built by expert craftsmen. The Ka-8b Glider is equally at home on the slope or aerotowed using its releasable tow hook or electric motor .
Technical data
- Wingspan: 3500mm (137.8 in)
- Length: 1650mm (64.96 in)
- Flying weight: 3700-4000 gr
- Wing area: 75 dm2
- Wing loading: 49g/dm2
- Wing type: HQ profile
- Radio: 6 channel minimum (not included)

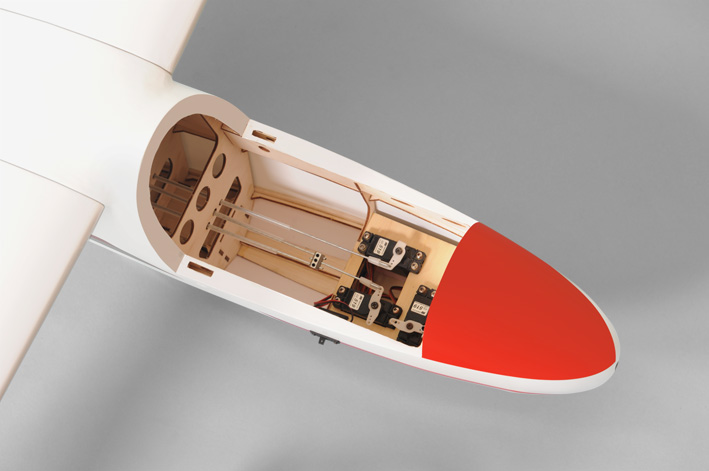

- Servo: 4 standard servo: 2 aileron; 1 elevator; 1 rudder (not included)
- Recommended receiver battery: 6.0V 1200mAh NiMH (not included)
- Servo mount: 21mm x 42 mm

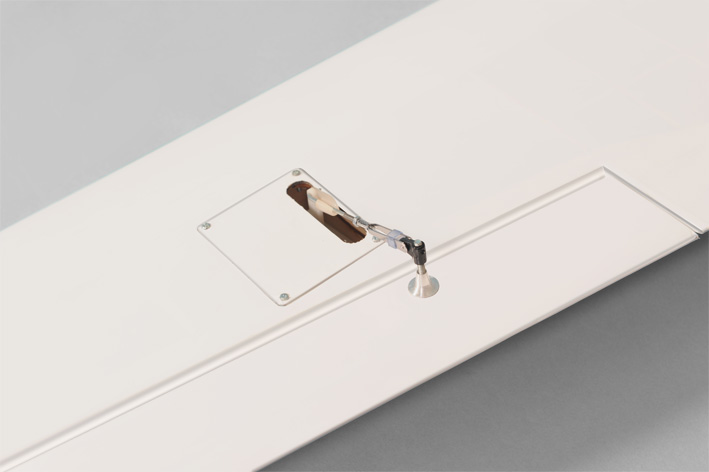

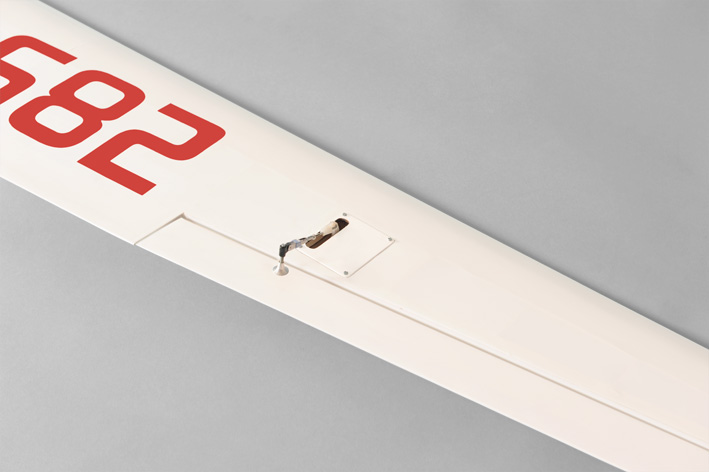

- Flap: 2 electric flaps 440mm (not included)
- Propeller: suit with your engine
- Motor: brushless outrunner 1000-1200 W, 800 KV (not included)
- Experience level: Intermediate
- Plane type: Scale Sailplane

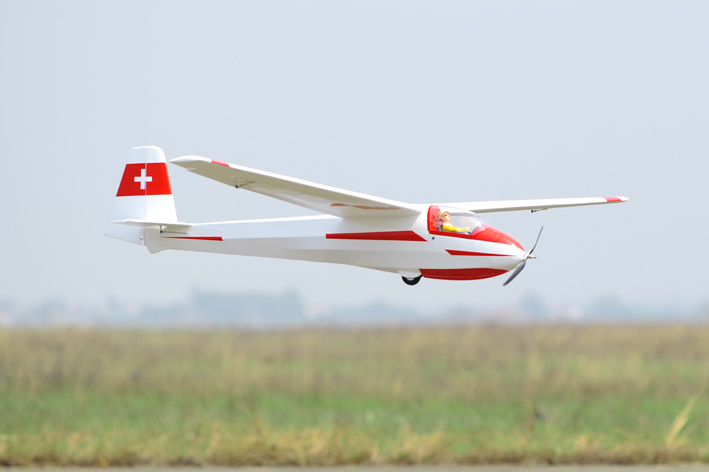

RECOMMENDED MOTOR AND BATTERY SET UP
- Motor: Rimfire .46 (not included)
- Propeller: 12x6; 14x6 foilding (not included)
- Lipo cell: 3-4 cells / 3000 – 3200mAh (not included)
- Esc: 80-100A (not included)
Feature
- Elegant scale appearance with outstanding thermal performance
- Extremely lightweight laser-cut all-wood construction
- Bolt-on two-piece wing for easy transport and storage
- Great scale looks that will grace any flying site

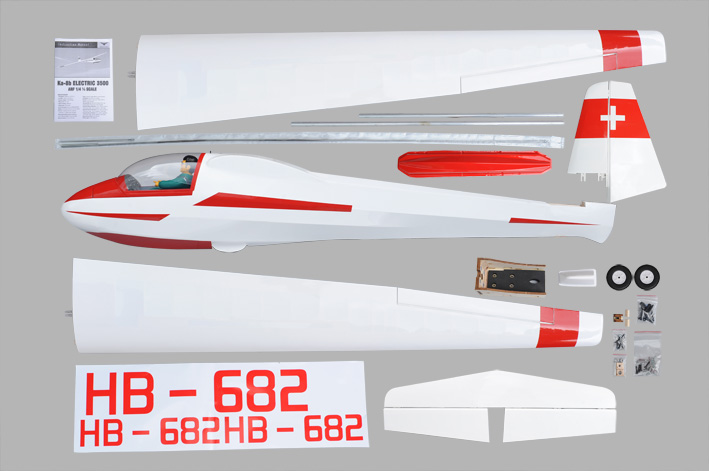

- High-quality hardware package included
Colour chart
- White (# 21010)
- Ferrari Red (# 21023)
Packing
BOX DIMENSION
- 1769mm X 475mm X 168mm (L x W x H)
