Introducing

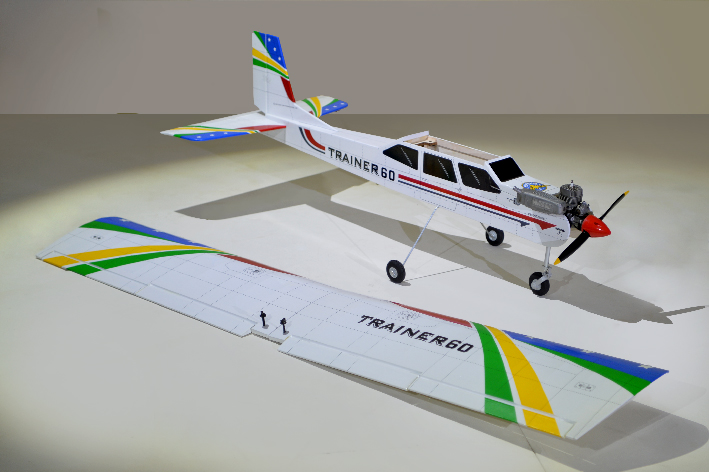

This plane is a well designed for .91-15cc size trainer for beginner pilots. It has sturdy all balsa/ply wood construction and is very stable in flight. Bigger wing and bigger wing area helps give a more stable flight. 3 degree wing dihedral gives a good balance flight stability and agility. All the hardware are included (servo wire, fuel tank, wheel/landing gear, etc). You only need to seperately purchase the nitro engine and radio system, and can fly this plane after 1-2 hours of installation.
Technical data
- Wingspan: 1883mm (74.1 in)
- Length: 1444mm (56.8 in)
- Flying weight: 3500-4200 gr
- Wing area: 64.7 dm2
- Wing loading: 62g/dm2
- Wing type: Naca airfoils
- Covering type: V-kote film
- Spinner size: Plastic 58mm (included)
- Radio: 6 channel minimum (not included)
- Servo: 7 standard servo: 2 aileron; 2 flap; 1 elevator; 1 rudder; 1 throttle (not included)
- Recommended receiver battery: 4.8-6V / 800-1200mAh NiMH (not included)
- Servo mount: 21mm x 42 mm
- Propeller: suit with your engine
- Engine: .91/15cc / 2-stroke (not included)
- Motor: brushless out runner
- Experience level: Beginer
- Plane type: Trainer
RECOMMENDED MOTOR AND BATTERY SET UP
- Motor: Rimfire.60 (not included)
- Lipo cell: 6 cells / 4000 – 5500mAh (not included)
- Esc: 60-100A (not included)
Feature
- Designed for compatibility with both GP and EP flight
- Extremely lightweight laser-cut all-wood construction
- All hardware included
Colour chart
Not update...
Packing
BOX DIMENSION
- 1314mm X 360mm X 208mm (L x W x H)
