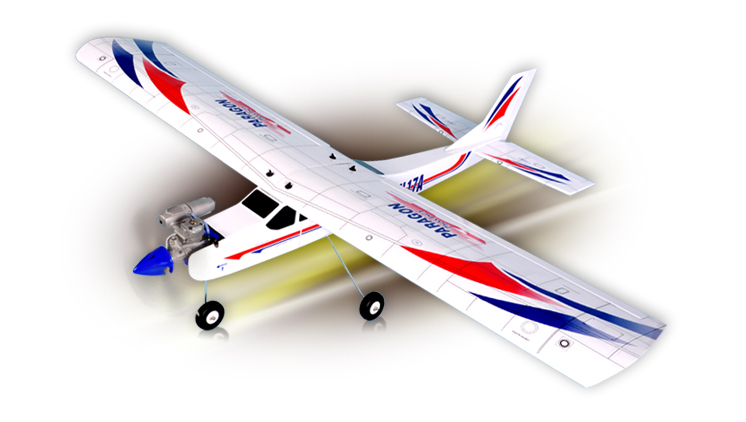

PH004 – PARAGON .46-.55

PH004 – PARAGON .46-.55

Introducing

    Comes in attracted, easy to see color scheme, the Paragon by Phoenix Model is a great first glow RC airplane that makes learning to fly as uncomplicated as possible, on a decent size classic high-wing trainer, making it easier to see, easier to control and providing you with self-righting flight characteristics and more time to react if something goes wrong.

Technical data

- Wingspan: 1583mm (62.3in)
- Length: 1240mm (48.8 in)
- Flying weight: 2600-2800 gr
- Wing area: 44.3 dm2
- Wing loading: 65g/dm2
- Wing type: Naca airfoils
- Covering type: V-kote film
- Spinner size: Plastic 58mm (included)
- Radio: 4 channel minimum (not included)
- Servo: 5 standard servo: 2 aileron; 1 elevator; 1 rudder; 1 throttle (not included)
- Recommended receiver battery: 4.8-6V / 800-1200mAh NiMH (not included)
- Servo mount: 21mm x 42 mm
- Propeller: suit with your engine
- Engine: .40-.46 / 2-stroke (not included)
- Motor: brushless outrunner
- Experience level: Beginer
- Plane type: Trainer
RECOMMENDED MOTOR AND BATTERY SET UP
- Motor: RIMFIRE .46 (not included)
- Lipo cell: 4-6 cells / 4000-5000 mAh (not included)
- Esc: 50-60A (not included)

Feature

- Designed for compatibility with both GP and EP flight
- Extremely lightweight laser-cut all-wood construction
- All hardware included

Colour chart

Not update...

Packing

BOX DIMENSION
   - 1083mm X 421mm X 108mm (L x W x H)

PH004 – PARAGON .46-.55

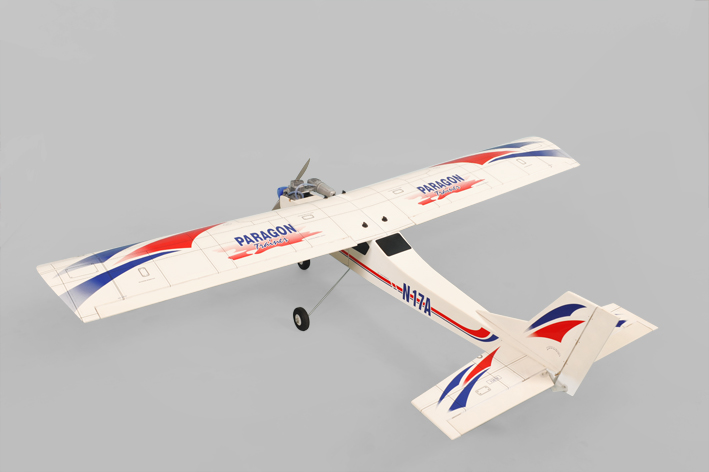

e711c981-4b82-4bfe-a7c1-f1d896b25b74-Paragon-1.jpg - Aircraft model - phoenixmodel

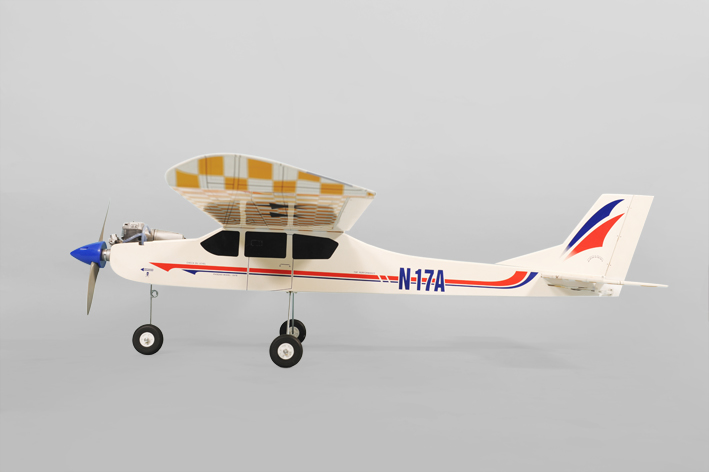

1349c908-ceb2-443c-a845-34a8b0ab014e-Paragon-2.jpg - Aircraft model - phoenixmodel

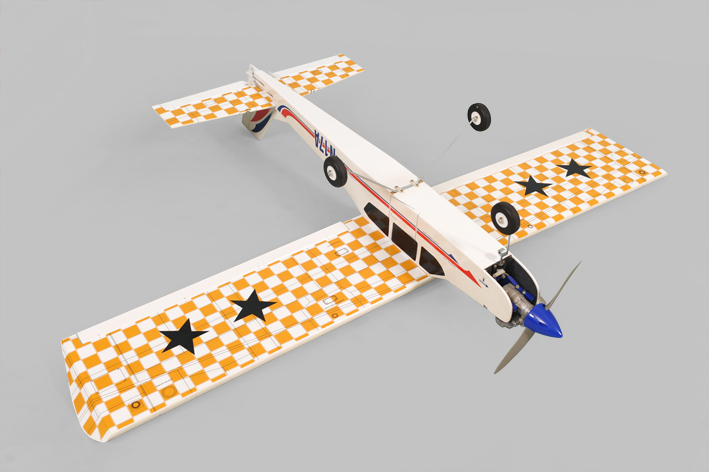

7ffeb54e-0aba-4d25-8c02-dc277a3f8e62-Paragon-3.jpg - Aircraft model - phoenixmodel

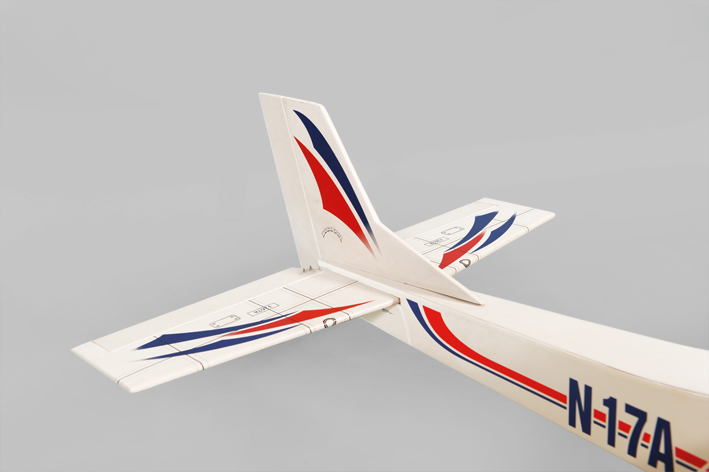

0273a780-da3e-45fa-a2a0-44a50e8682f0-Paragon-4.jpg - Aircraft model - phoenixmodel

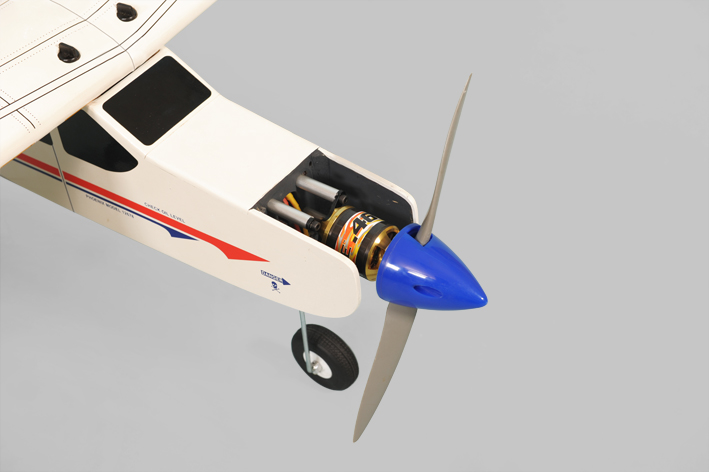

c1504259-c092-40dd-b131-f28c220d1650-Paragon-5.jpg - Aircraft model - phoenixmodel

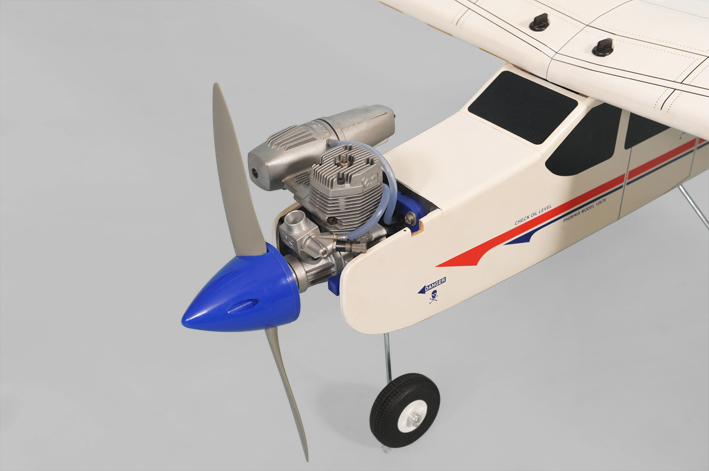

aefb3f7d-49a4-4660-b2ea-44c9202c3f1c-Paragon-6.jpg - Aircraft model - phoenixmodel

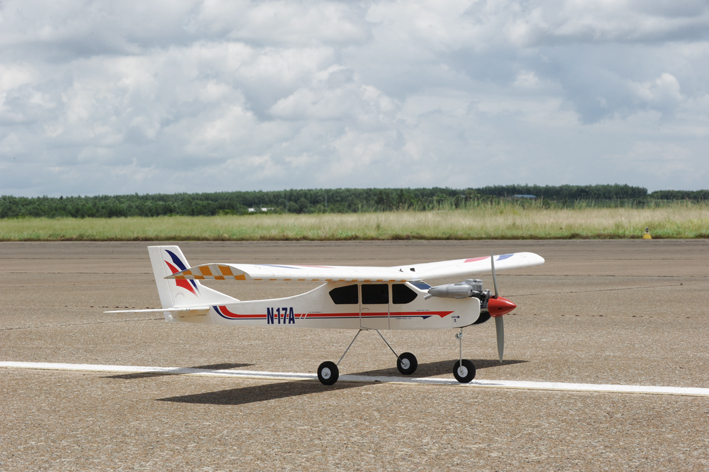

7326c5e8-afe3-4b79-964d-dfd71c974d08-Paragon-7.jpg - Aircraft model - phoenixmodel

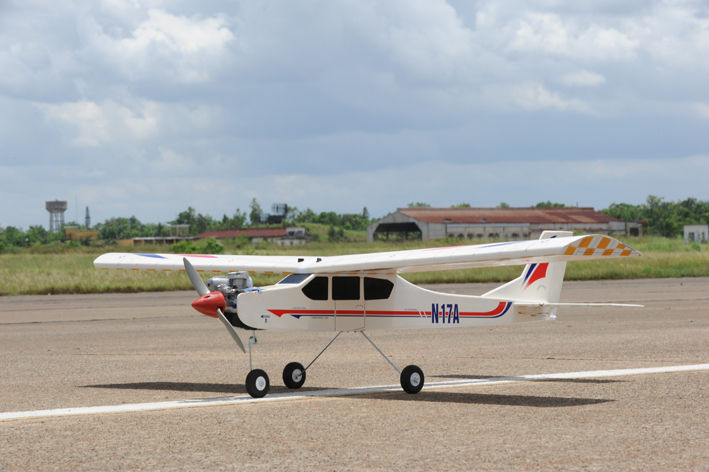

6cf65bb0-e922-4c82-aba6-8c8a6598c8f4-Paragon-8.jpg - Aircraft model - phoenixmodel

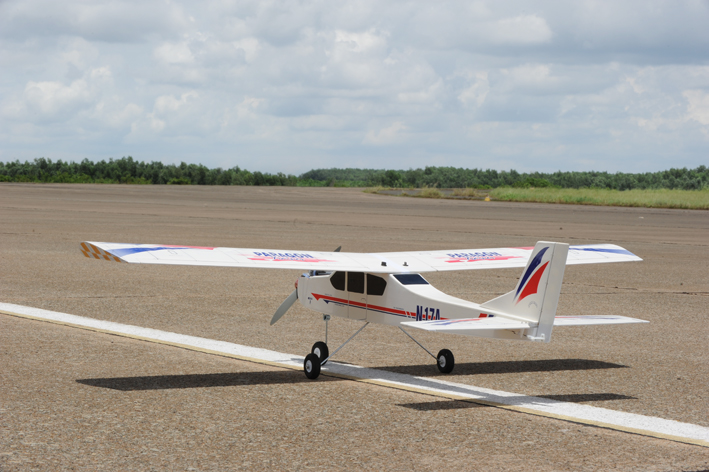

08b77124-75ab-45f7-b765-721b35a296ba-Paragon-9.jpg - Aircraft model - phoenixmodel

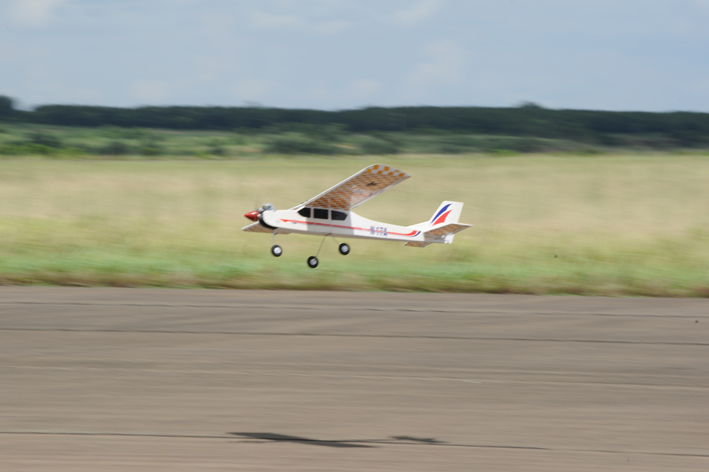

88ac001a-d461-447d-ab40-77696b4576e7-Paragon-10.jpg - Aircraft model - phoenixmodel

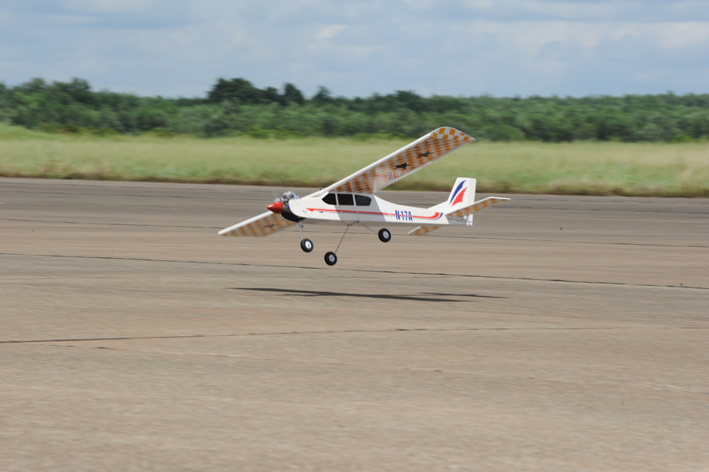

21b9eb63-a51f-4e8b-ad2e-1456d31e10b2-Paragon-11.jpg - Aircraft model - phoenixmodel

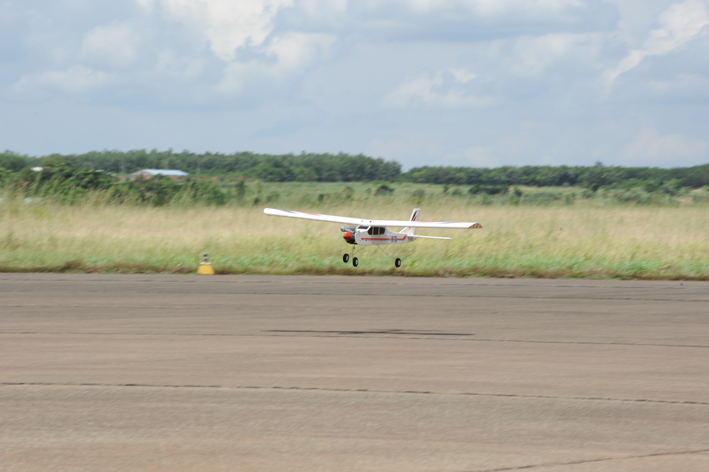

179496eb-f60f-4dd7-b807-72fff7612011-Paragon-12.jpg - Aircraft model - phoenixmodel

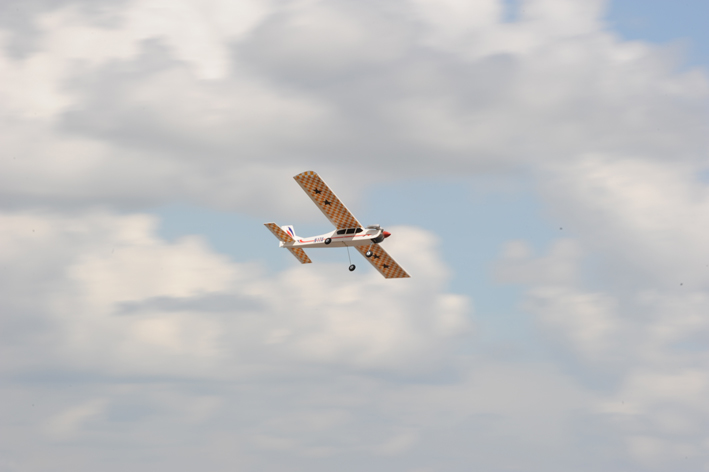

443592f0-b337-4878-b158-a628f3482598-Paragon-13.jpg - Aircraft model - phoenixmodel

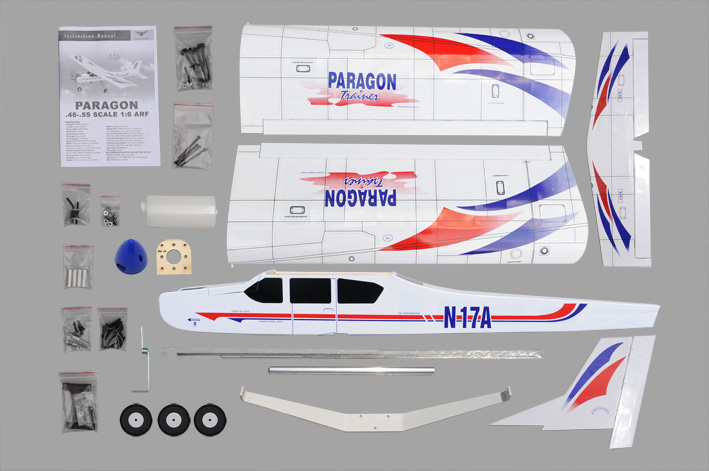

Paragon-14.jpg - Aircraft model - phoenixmodel
