Introducing

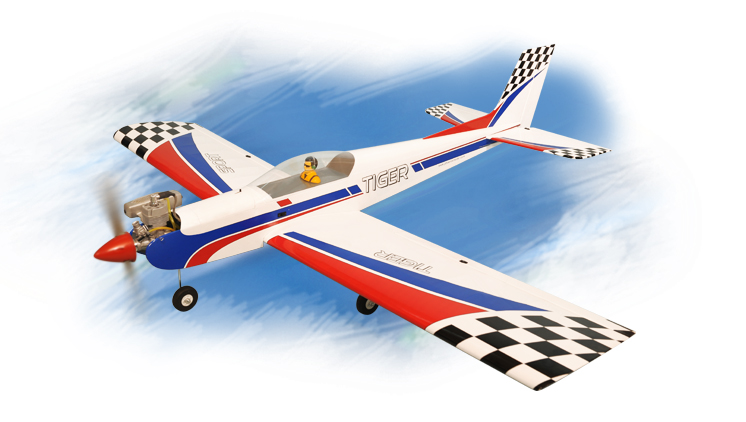

The Tiger 60 is designed for beginners and intermediate-level pilots. Its semi-symmetrical wings, make it easy to fly at slow speeds. All wood construction. Factory pre-covered with beautiful color graphics. Pre-glued and pinned hinges on all control surfaces. All the hardware are included (servo wire, fuel tank, wheel/landing gear, etc). You only need to separately purchase the nitro engine and radio system.
Technical data
- Wingspan: 1800mm (70.8in)
- Length: 1605mm (63.2 in)
- Flying weight: 3700-4200 gr
- Wing area: 55.8 dm2
- Wing loading: 75g/dm2
- Wing type: Naca airfoils
- Covering type: V-kote film
- Spinner size: Plastic 70mm (included)
- Radio: 4 channel minimum (not included)
- Servo: 6 standard servo: 2 aileron; 2 elevator; 1 rudder; 1 throttle (not included)
- Recommended receiver battery: 4.8-6V / 800-1200mAh NiMH (not included)
- Servo mount: 21mm x 42 mm
- Propeller: suit with your engine

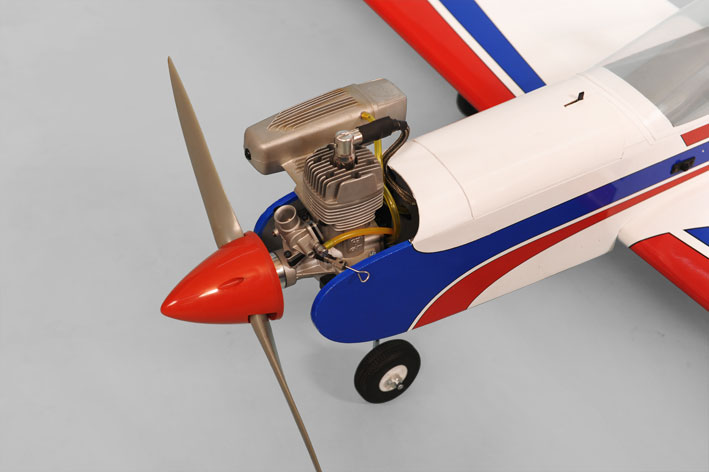

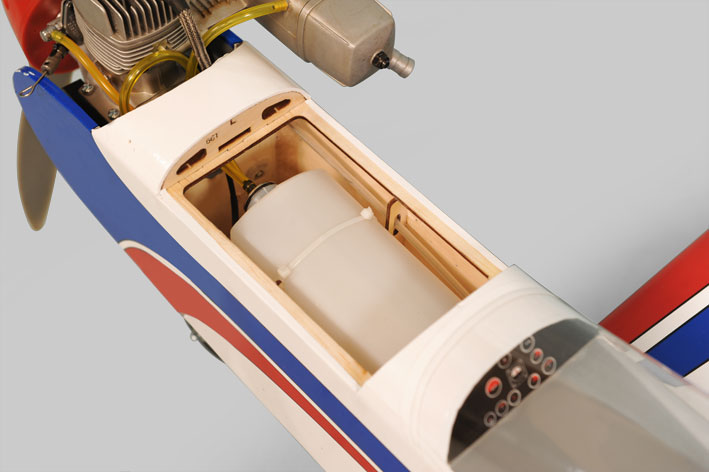

- Engine: .91 / 2-stroke plug engine; 15cc gas engine (not included)
- Motor: brushless out runner (not included)
- Experience level: Intermediate
- Plane type: Low wing sport
RECOMMENDED MOTOR AND BATTERY SET UP

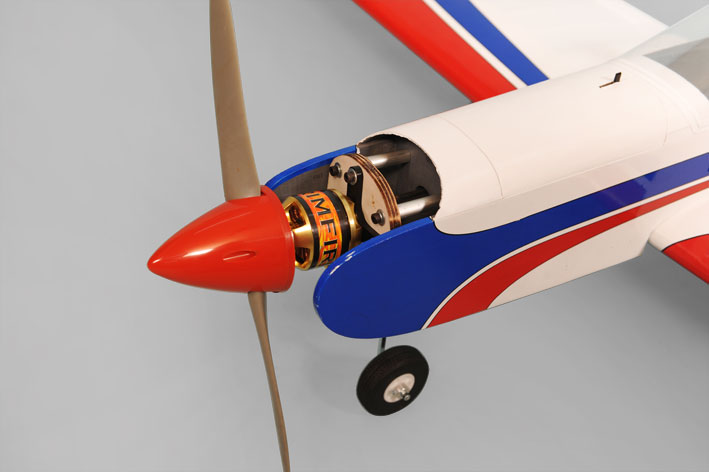

- Motor: Rimfire.60 (not included)

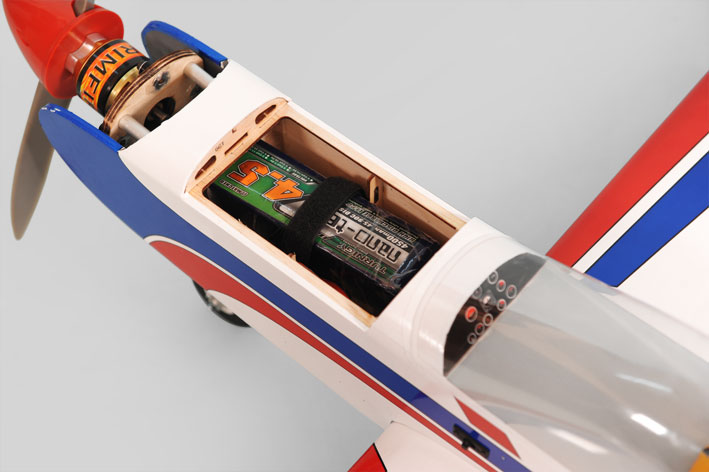

- Lipo cell: 6 cells / 4000 – 5500mAh (not included)
- Esc: 60-100A (not included)
Feature
- Designed for compatibility with both GP and EP flight
- Extremely lightweight laser-cut all-wood construction

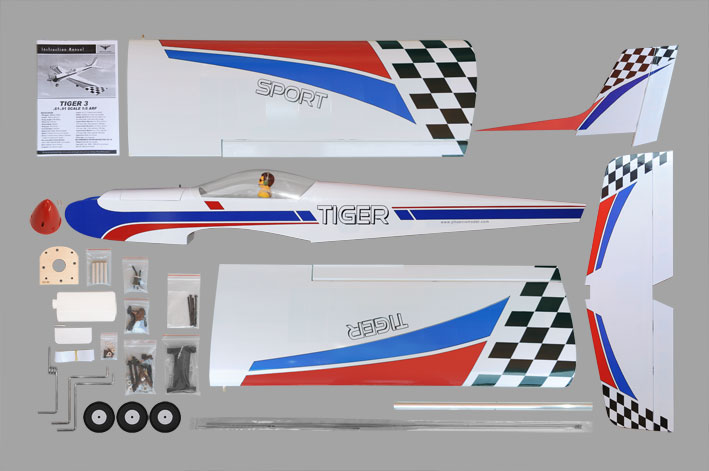

- All hardware included
Colour chart
Not update...
Packing
BOX DIMENSION
- 1314mm X 360mm X 208mm (L x W x H)
