PH188 – AURORA .46-.55

PH188 – AURORA .46-.55

Introducing

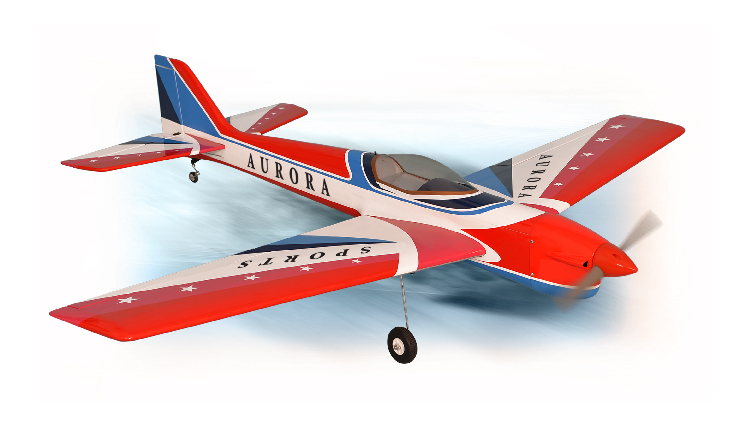

   The Aurora ARF is the perfect size and performance package for the club sport aerobatic pilot.
   Whether you like to fly fast or slow, prefer smooth precision aerobatics or F3A pattern, the Aurora can provide the aerobatic performance you are looking for. The Phoenix Model Aurora features traditional all wood construction and has the kind of finish, accuracy and performance that only balsa models can offer!

Technical data

- Wingspan: 1500mm (59.1in)
- Length: 1335mm (52.5 in)
- Flying weight: 2600-2800 gr
- Wing area: 38.4 dm2
- Wing loading: 70g/dm2
- Wing type: Naca airfoils
- Spinner size: Plastic 58mm (included)
- Radio: 4 channel minimum (not included)
- Servo: 5 standard servo: 2 aileron; 1 elevator; 1 rudder; 1 throttle (not included)
- Recommended receiver battery: 4.8-6V / 800-1200mAh NiMH (not included)
- Servo mount: 21mm x 42 mm
- Propeller: suit with your engine

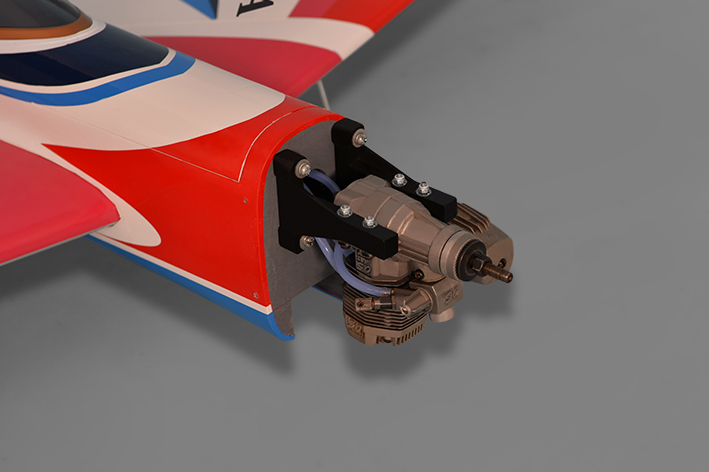

- Engine: .46-.55 / 2-stroke or .52/4-stroke glow engine (not included)
- Motor: brushless outrunner 1000-1400 W, 480 KV (not included)
- Experience level: Intermediate
- Plane type: Low wing sport f3a
RECOMMENDED MOTOR AND BATTERY SET UP

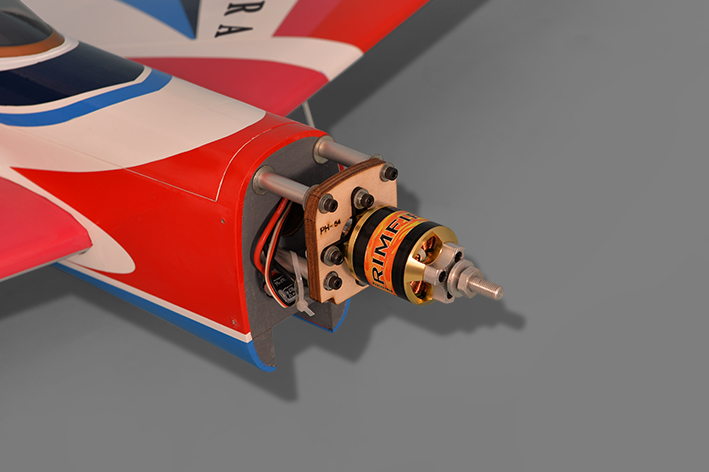

- Motor: RIMFIRE .46-.55 (not included)
- Lipo cell: 6 cells / 4000 – 5500mAh (not included)
- Esc: 50-80A (not included)

Feature

- Designed for compatibility with both GP and EP flight

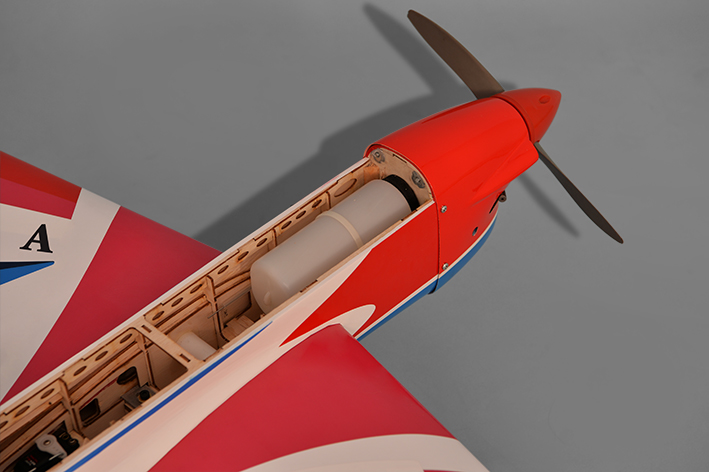

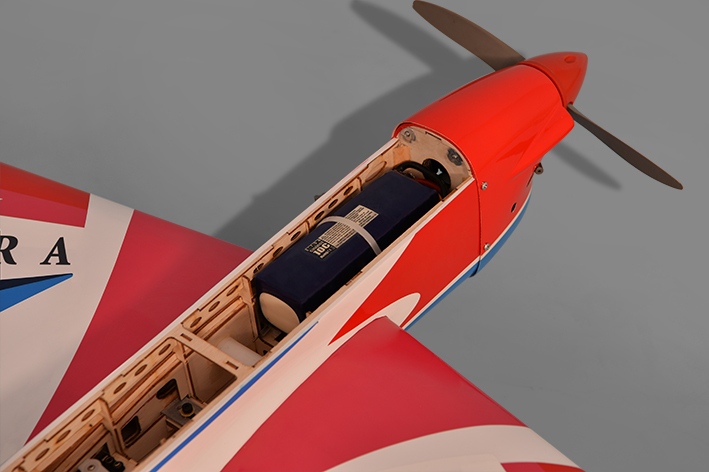

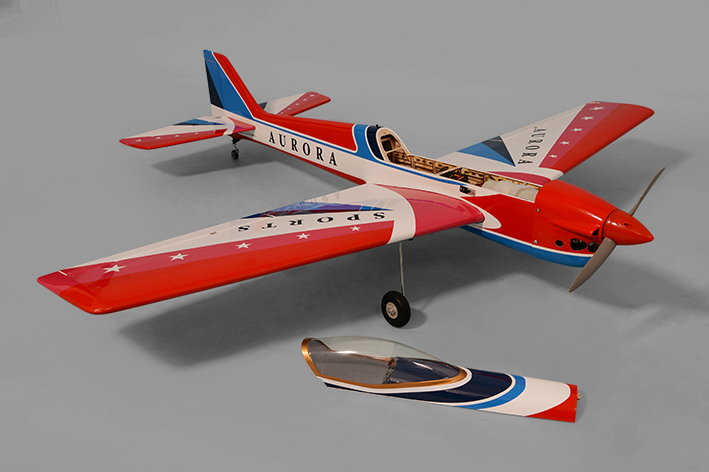

- Removable top hatch for easy access to the interior of the plane
- 2-stroke, 4-stroke glow or electric option
- Strong Light Weight Construction
- High-quality hardware package included

Colour chart

-   Ferrari Red     (# 21023)
-  White             (# 21010)
-  Corsair Blue    ( #21019)
-  Sky Blue        (# 21053)
-  Pink                (# 21024)
-  Grey               (# 21011)

Packing

BOX DIMENSION
   - 1204mm X 345mm X 198mm (L x W x H)

PH188 – AURORA .46-.55

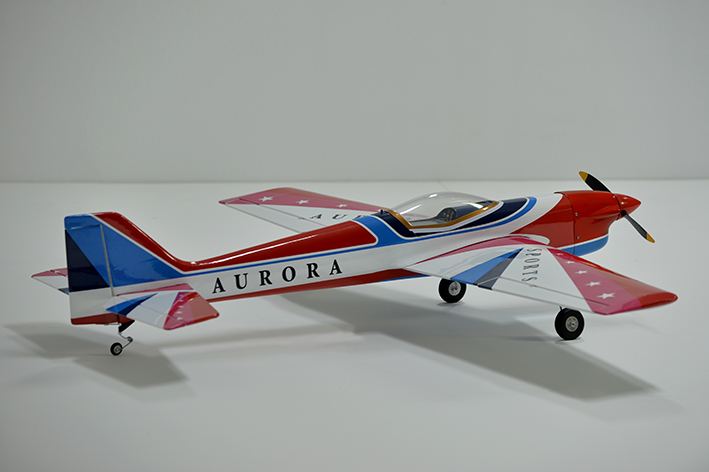

PH188-AURORA-01.jpg - Aircraft model - phoenixmodel

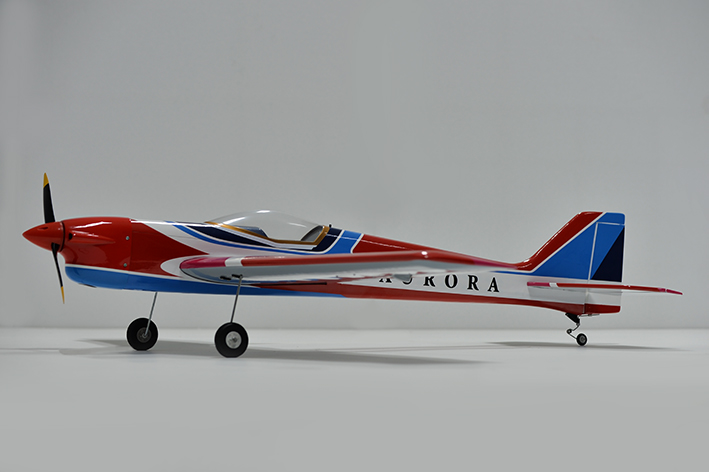

PH188-AURORA-02.jpg - Aircraft model - phoenixmodel

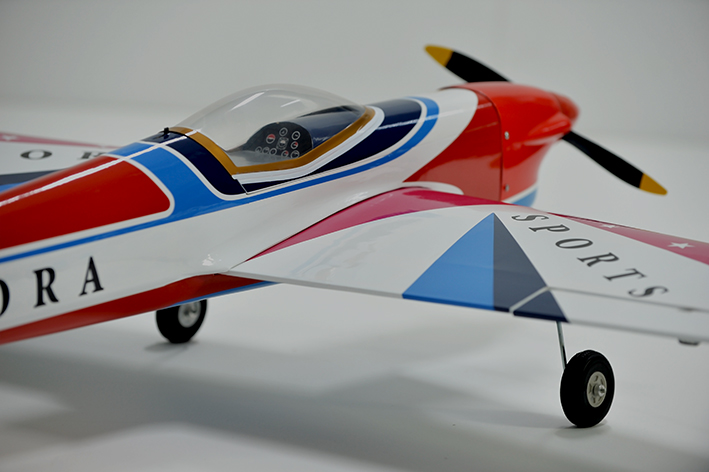

PH188-AURORA-03.jpg - Aircraft model - phoenixmodel

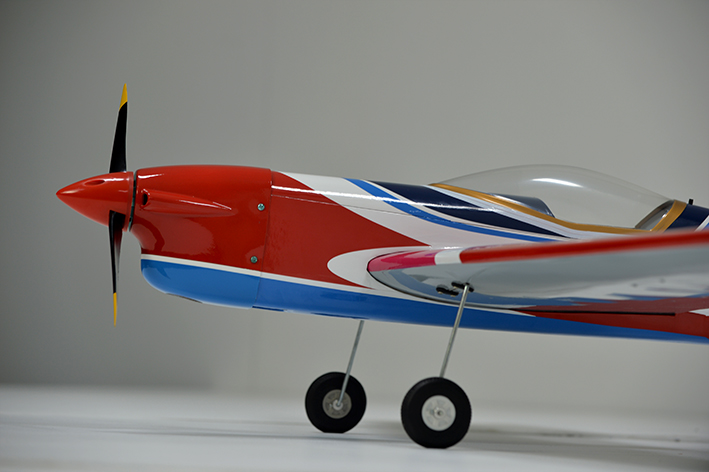

PH188-AURORA-04.jpg - Aircraft model - phoenixmodel

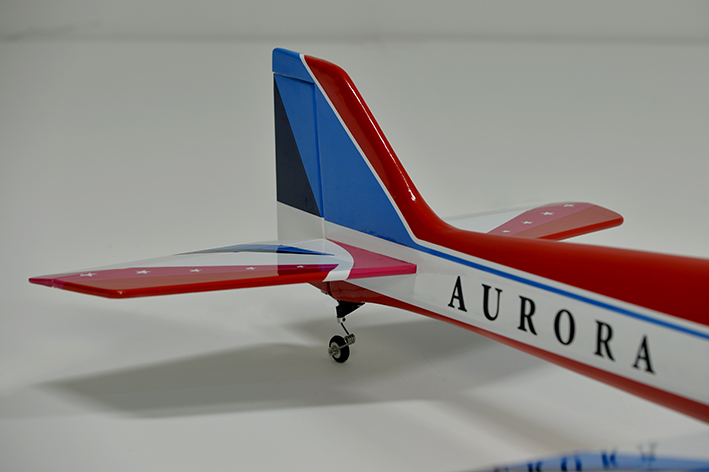

PH188-AURORA-05.jpg - Aircraft model - phoenixmodel
PH188-AURORA-06.jpg - Aircraft model - phoenixmodel

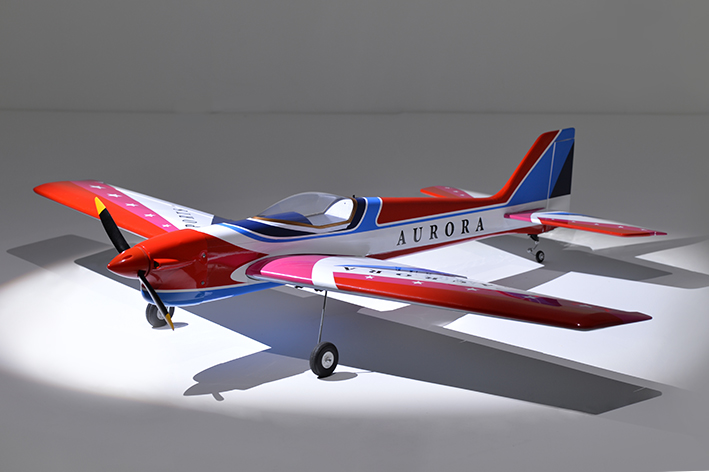

PH188-AURORA-07.jpg - Aircraft model - phoenixmodel
PH188-AURORA-08.jpg - Aircraft model - phoenixmodel
PH188-AURORA-09.jpg - Aircraft model - phoenixmodel

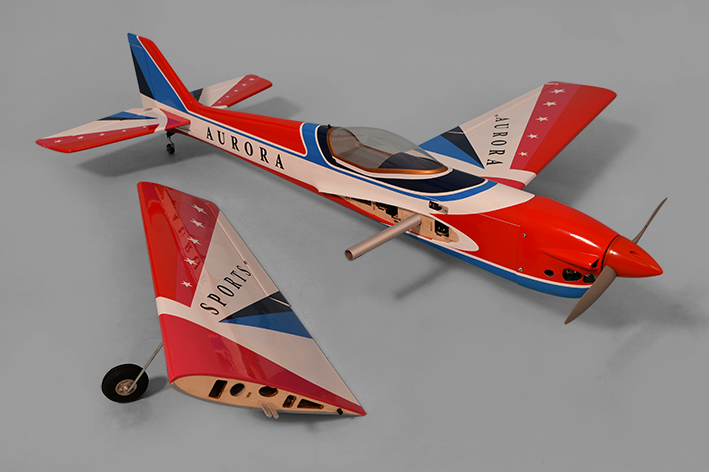

PH188-AURORA-10.jpg - Aircraft model - phoenixmodel
PH188-AURORA-11.jpg - Aircraft model - phoenixmodel
PH188-AURORA-12.jpg - Aircraft model - phoenixmodel
PH188-AURORA-13.jpg - Aircraft model - phoenixmodel
PH188-AURORA-14.jpg - Aircraft model - phoenixmodel

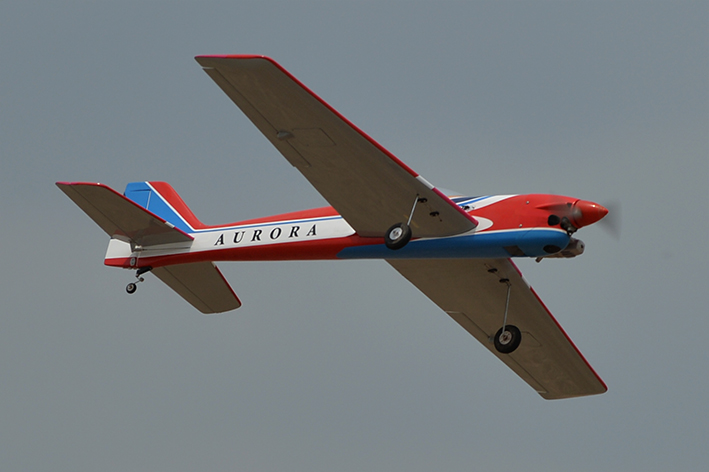

PH188-AURORA-15.jpg - Aircraft model - phoenixmodel
PH188-AURORA-16.jpg - Aircraft model - phoenixmodel
PH188-AURORA-17.jpg - Aircraft model - phoenixmodel

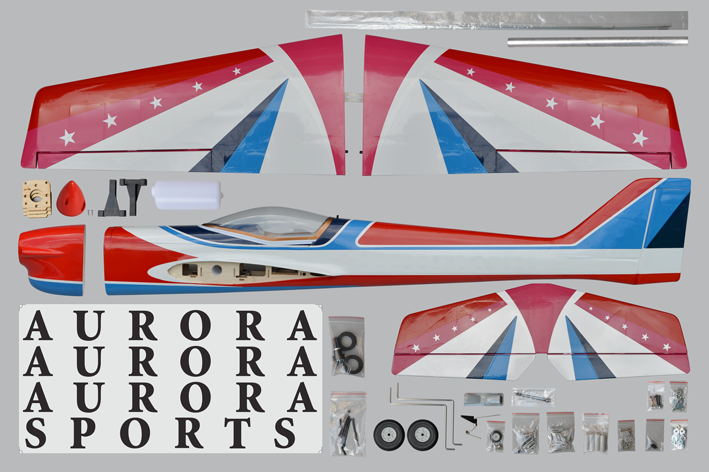

PH188-AURORA-18.png - Aircraft model - phoenixmodel
