Introducing

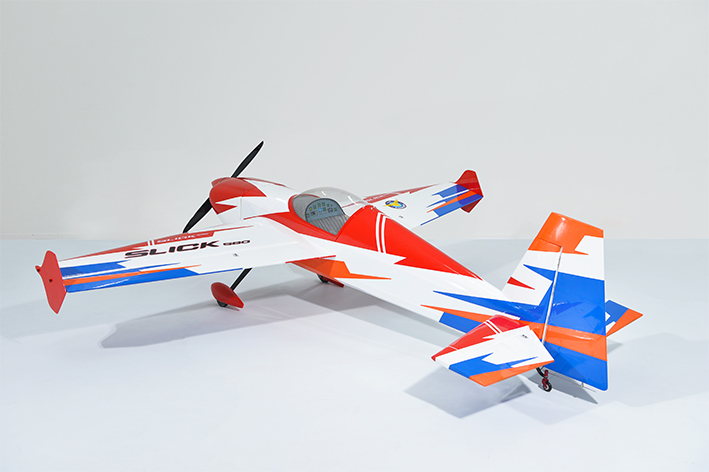

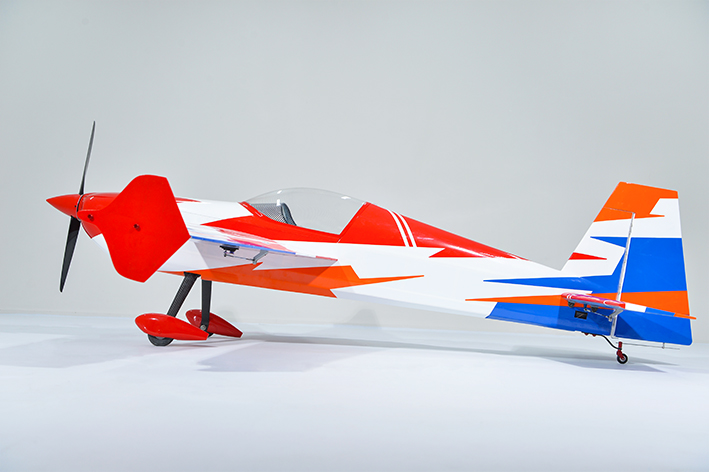

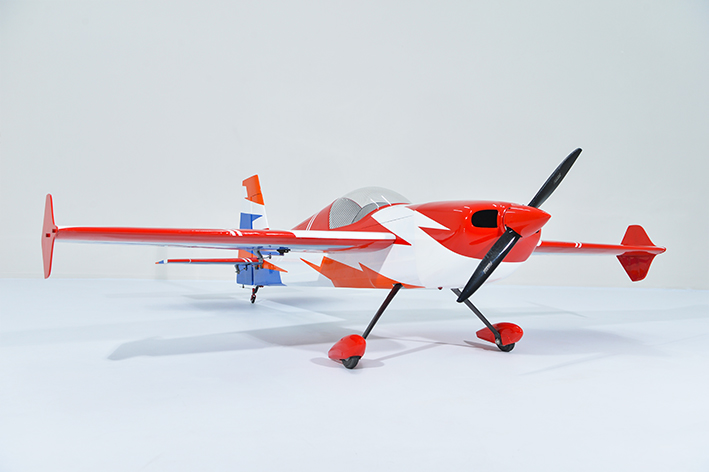

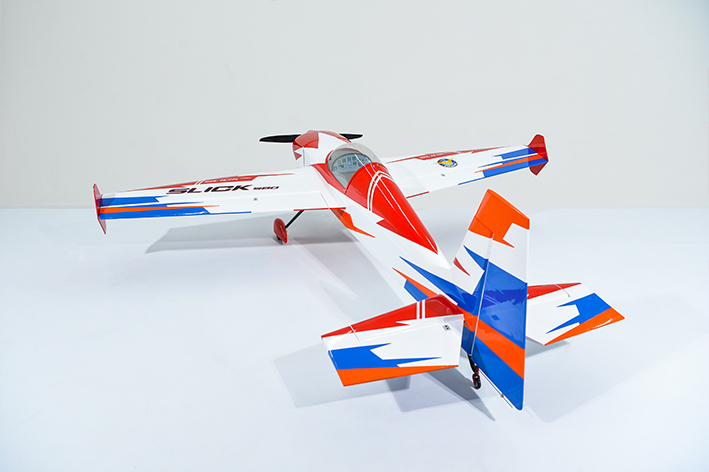

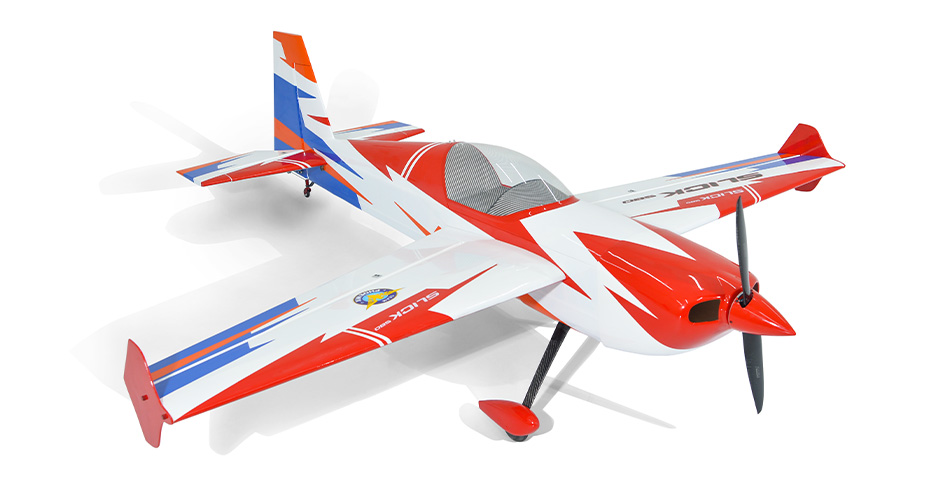

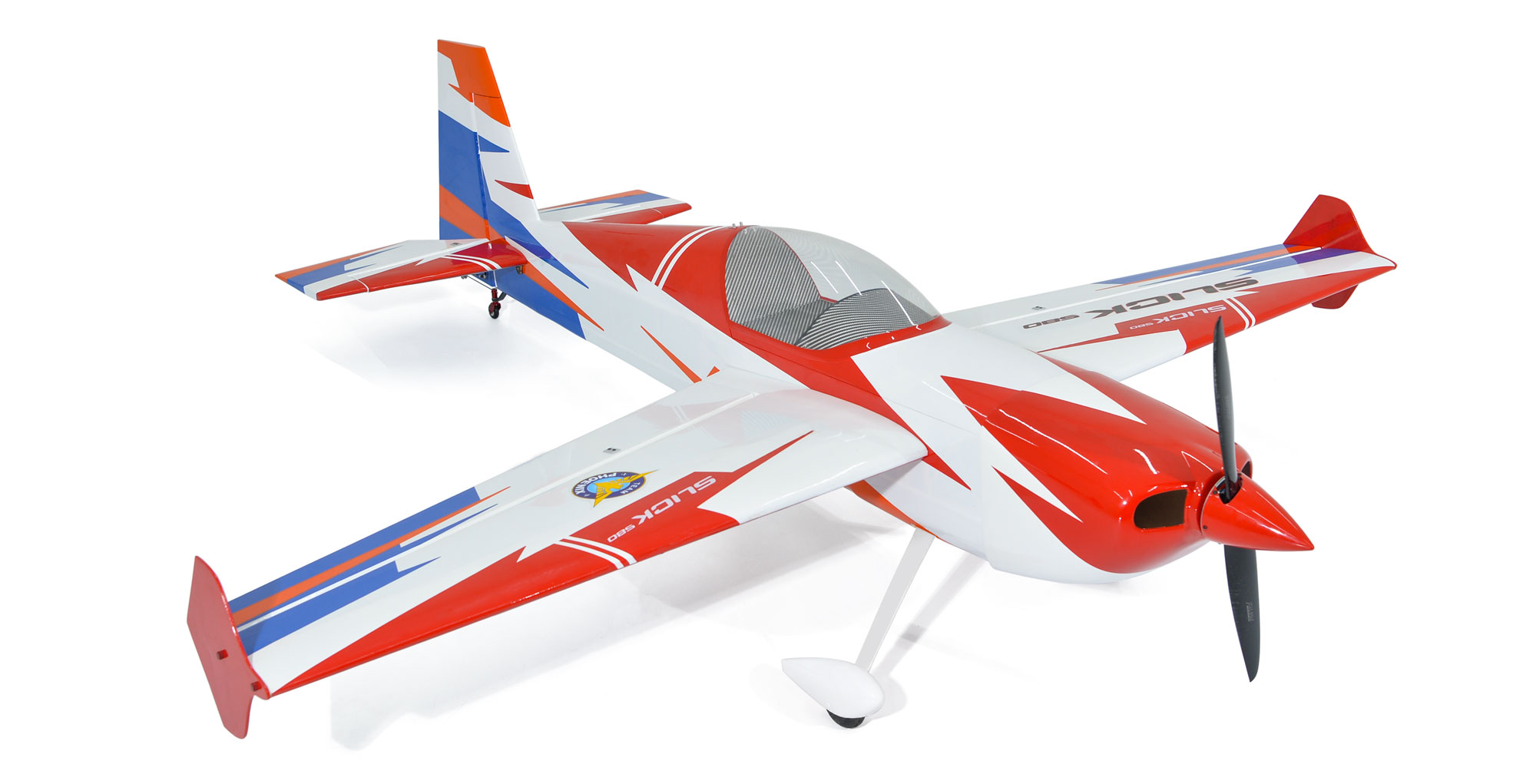

SLICK 580 86,5" 60-70cc ARF V2
Technical data
- Wingspan: 2200mm (86.5 in)
- Length: 2172mm (85.5in)
- Flying weight: 7700-8000 gr
- Wing area: 100 dm2
- Gear type: Carbon fiber for main gear (included)
- Spinner size: Carbon Spinner 95mm (included)
- Gravity CG: 165mm (6.5 in) Back from the leading edge of the wing, at the fuselage
CONTROL SETTINGS:
- Elevator:
Low Rate 8-10 deg. 10-25% expo
3D Rate 45-50 deg. 55-65% expo
- Aileron:
Low Rate 15-20 deg. 40-45% expo
3D Rate 38-40 deg. 60-75% expo
- Rudder:
Low Rate 20 deg 40-50% expo
3D Rate 45-50 deg. 60-80% expo
POWER SYSTEM:
Gas
- Engine 70-76cc Propeller: suit with your engine
- Fuel tank: 500ml
SERVO: Metal gear hi-torque servos
- 2 Aileron: hi-torque 40-55 kg ( Standard size: 20x40mm )
- 2 Elevator: hi-torque 30-40 kg ( Standard size: 20x40mm )
- 1 Rudder: hi-torque 16-22 kg ( Standard size: 20x40mm )
- 1 Throttle: hi-torque 12 kg ( Standard size: 20x40mm ) (Gas Power)

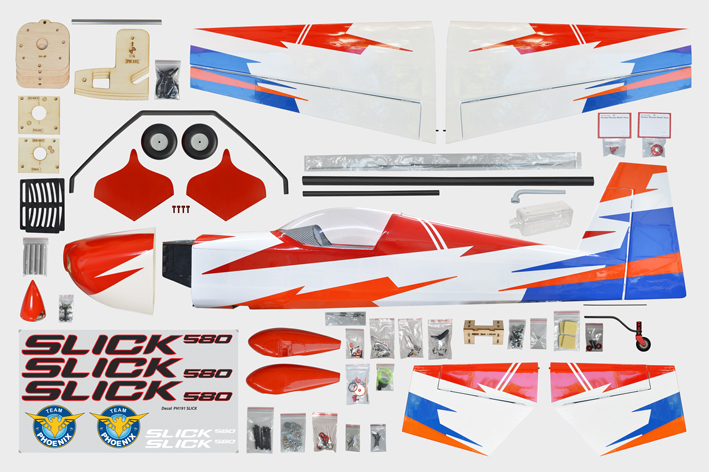

Feature
- Capable of both precise and extreme 3D aerobatics
- Designed for compatibility with both GP flight

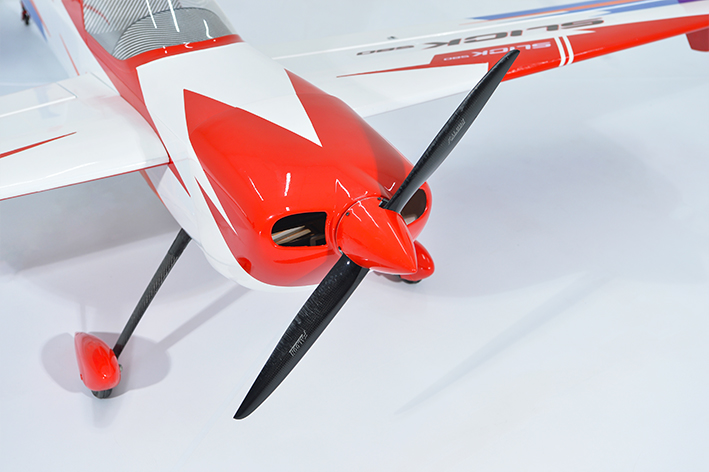

- Factory-painted Carbon fiber Spinner (included)
- Factory-painted Carbon fiber Main langding gear and tail gear (included)

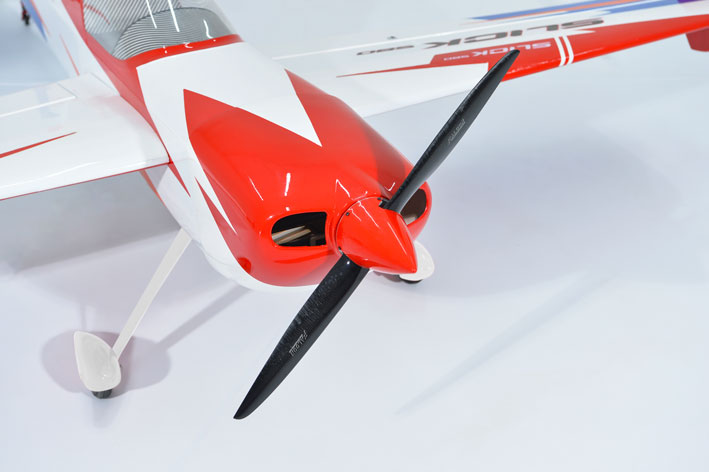

- Factory-painted fiberglass cowling and wheel pants (included)
- Factory-painted fiberglass control horn (included)
- All ball linkages and hexagon metal rod are included (included)

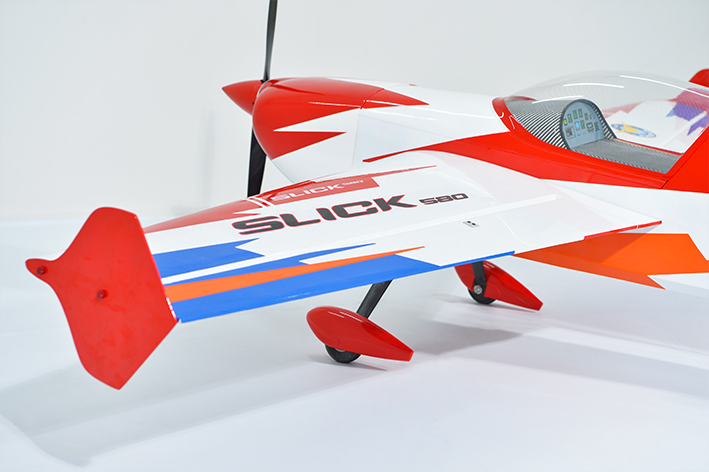

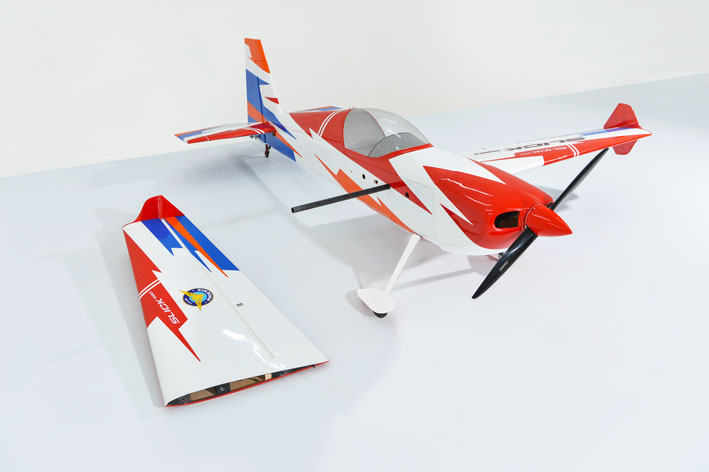

- Plug-in wings with Smart Lock system for fast assembly and easy transport (included)

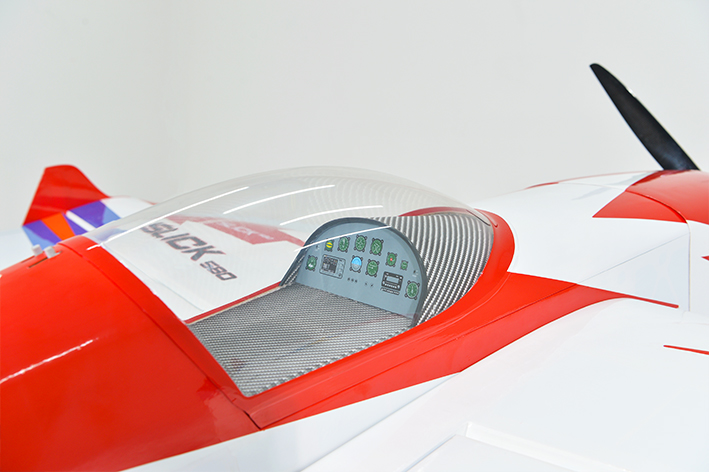

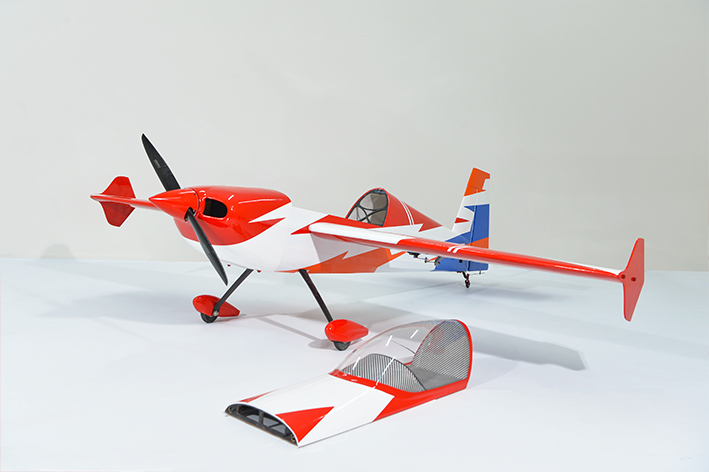

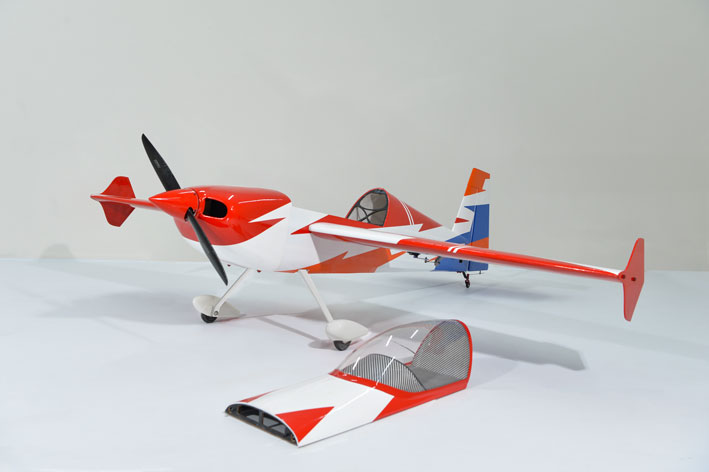

- Removable canopy for easy change lipo battery and set up radio

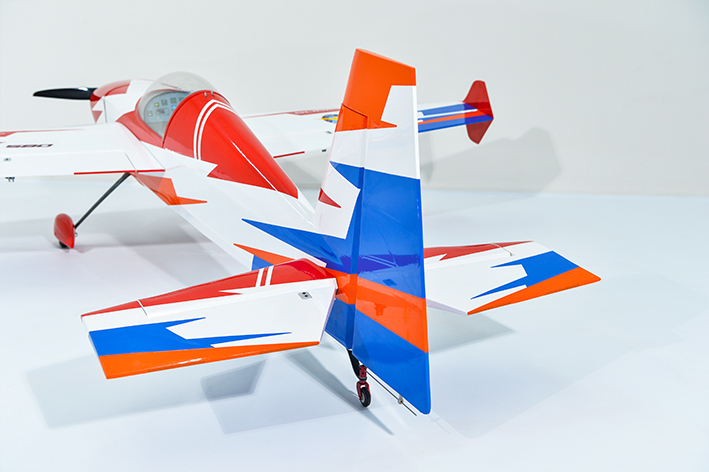

- Removable horizontal stabilizer
- Constructed from high-quality balsa and plywood, reinforced with Composite material for super strong and light weight
- Genuine polyester covering film ensures excellent color durability

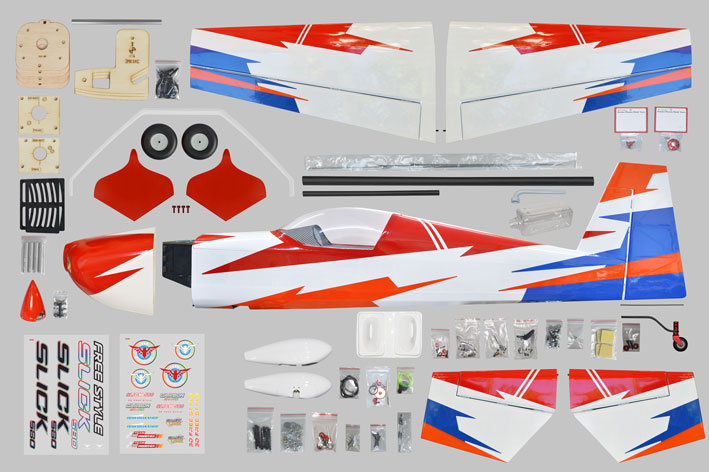

- All high-quality hardware included
Colour chart
- Ferrari Red (# 21023)
- White (# 21010)
- Blue (# 21050)
- Orange (# 21060)
- Grey (# 21011)
Packing
BOX DIMENSION
- 1709mm X 640mm X 318mm (L x W x H)
