Introducing

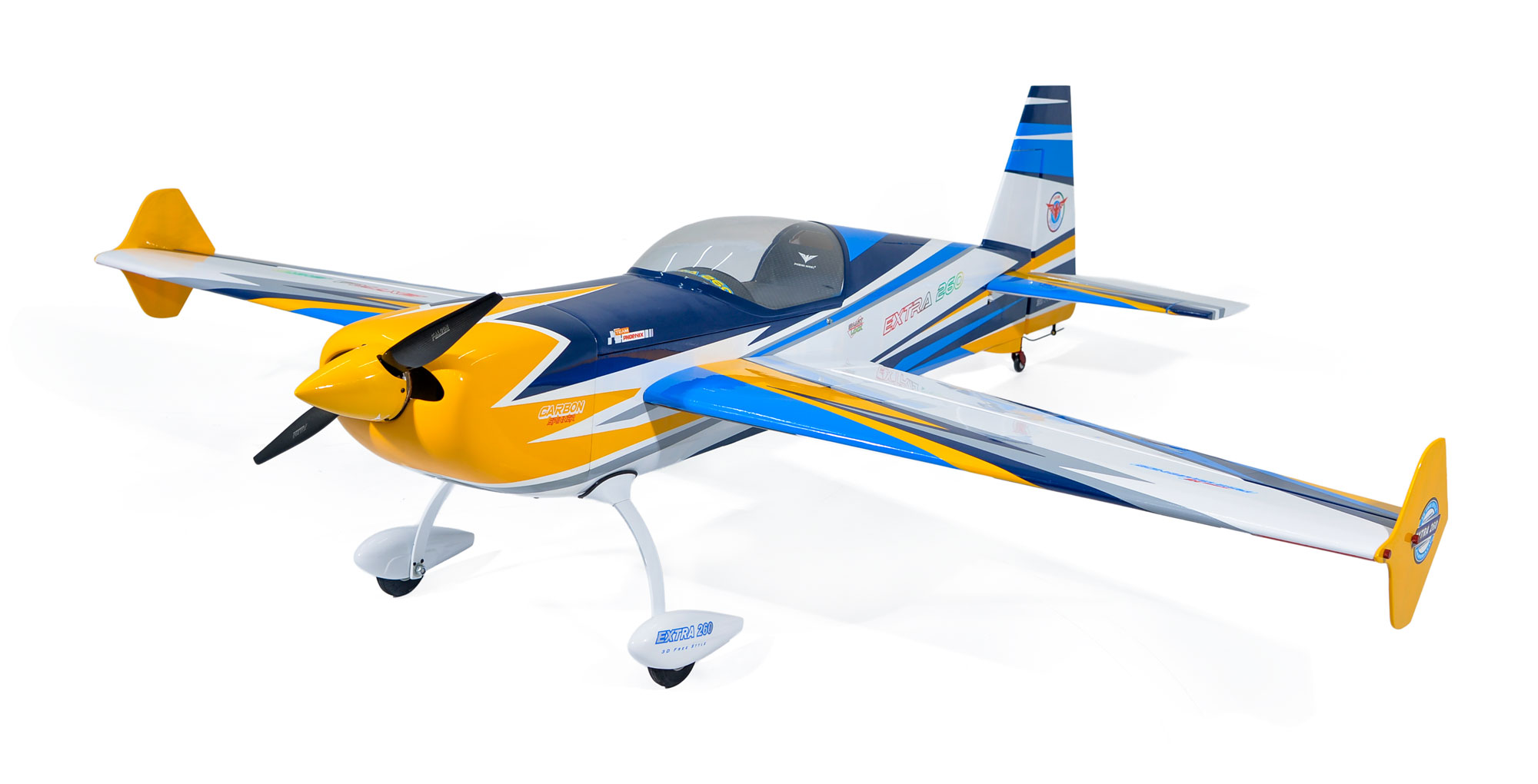

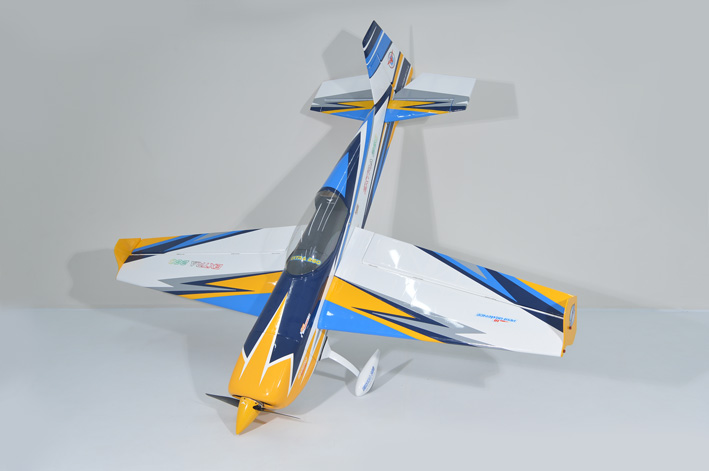

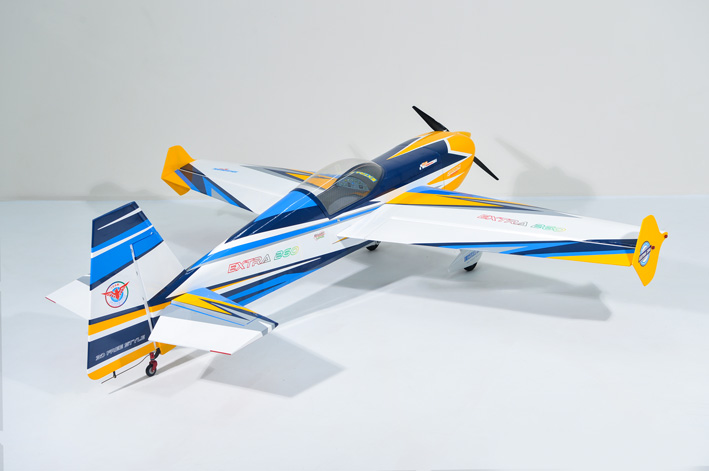

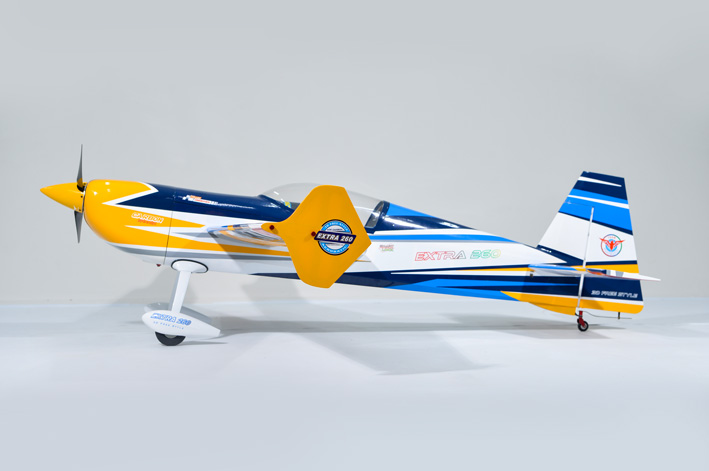

EXTRA 260 78'' SIZE 35CC ARF V2
Technical data
- Wingspan: 2000mm (78 in)
- Length: 1848mm (72.7 in)
- Flying weight: 5700-5900gr
- Gear type: Carbon fiber for main gear (included)
- Spinner size: Carbon Spinner 86mm (included)
- Gravity CG: 145mm (5.7 in) Back from the leading edge of the wing, at the fuselage
CONTROL SETTINGS:
- Elevator:
Low Rate 8-10 deg. 10-25% expo
3D Rate 45-50 deg. 55-65% expo
- Aileron:
Low Rate 15-20 deg. 40-45% expo
3D Rate 38-40 deg. 60-75% expo
- Rudder:
Low Rate 20 deg 40-50% expo
3D Rate 45-50 deg. 60-80% expo
POWER SYSTEM:
Gas
- Engine 35cc Propeller: Carbon gas 20 x 8
- Engine 38cc Propeller: Carbon gas 20 x 9
- Fuel tank: 360ml
Electric
- Motor: GA3500R DUALSKY
- ESC: 120HV
- Battery: Two 6S 3300-3700 mAh
- Prop: 19x10, 20x8 wood or carbon electric
SERVO: Metal gear hi-torque servos
- 2 Aileron: hi-torque 30-40 kg ( Standard size: 20x40mm )
- 2 Elevator: hi-torque 16-22 kg ( Medium size: 18x36mm )
- 1 Rudder: hi-torque 16-22 kg ( Medium size: 18x36mm )
- 1 Throttle: hi-torque 12 kg ( Medium size: 18x36mm ) (Gas Power)
Feature
- Capable of both precise and extreme 3D aerobatics
- Designed for compatibility with both GP-EP flight
- Factory-painted Carbon fiber Spinner (included)

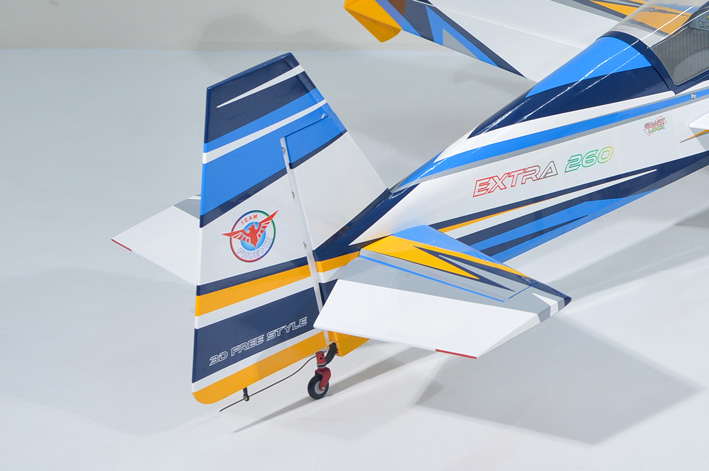

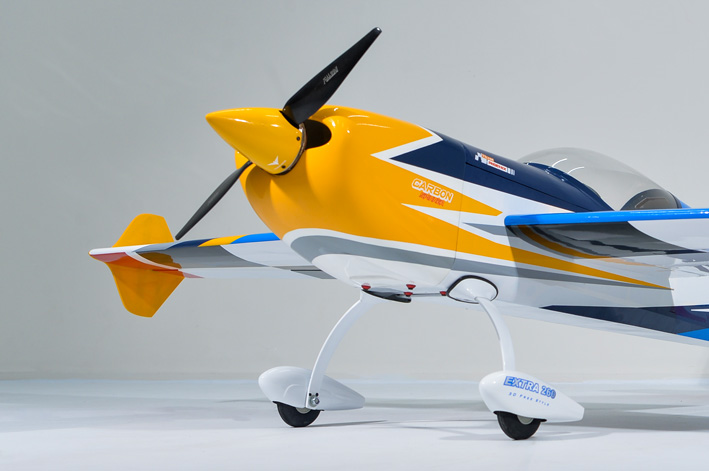

- Factory-painted Carbon fiber Main langding gear and tail gear (included)
- Factory-painted fiberglass cowling and wheel pants (included)
- Factory-painted fiberglass control horn (included)
- All ball linkages and hexagon metal rod are included (included)

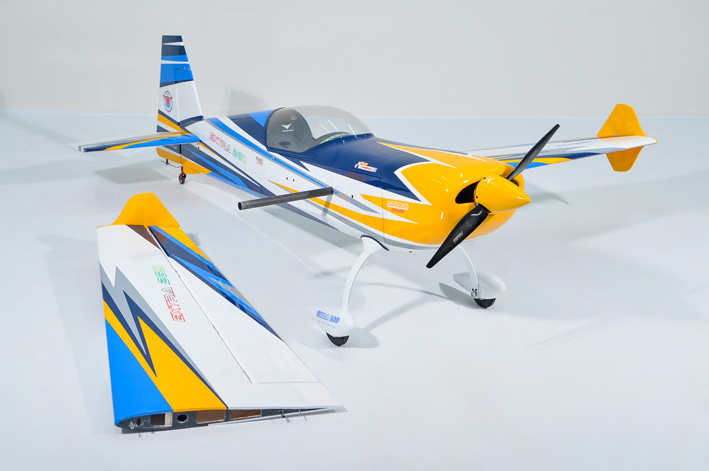

- Plug-in wings with Smart Lock system for fast assembly and easy transport (included)
- Wing Force included for precise and stability (included)

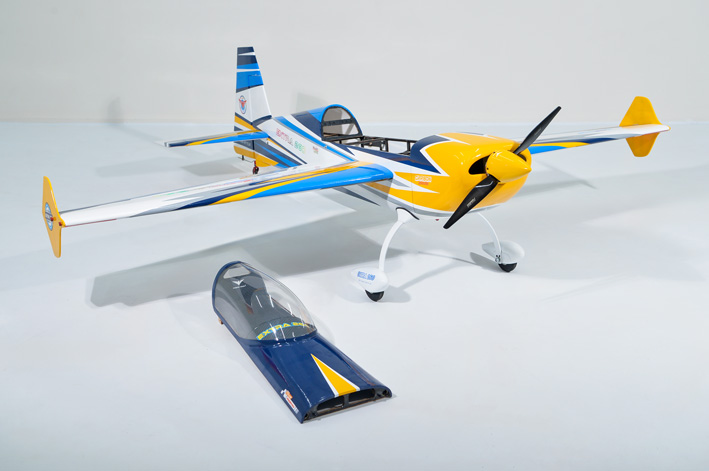

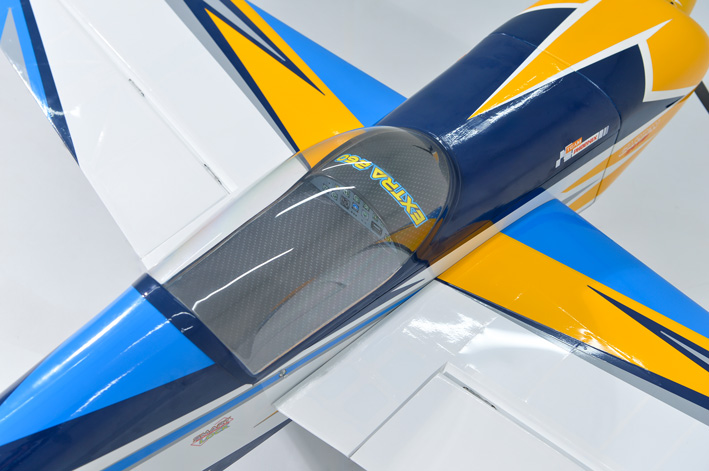

- Removable canopy for easy change lipo battery and set up radio
- Removable horizontal stabilizer

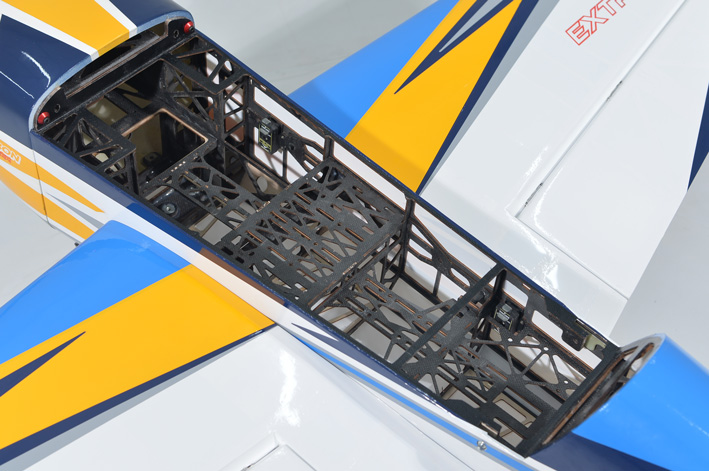

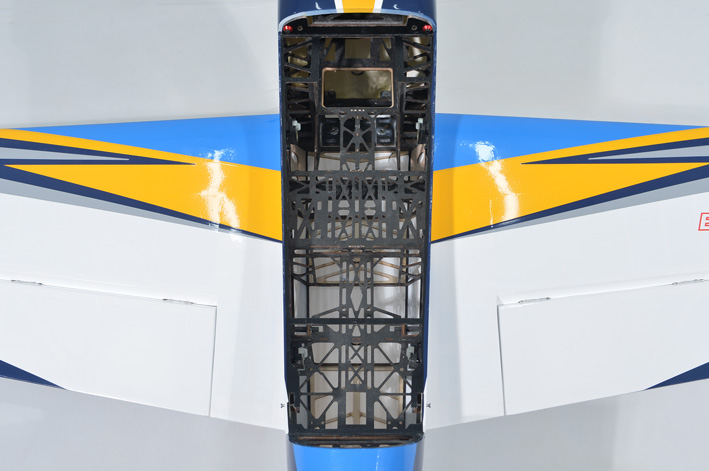

- Constructed from high-quality balsa and plywood, reinforced with Composite material for super strong and light weight
- Genuine polyester covering film ensures excellent color durability

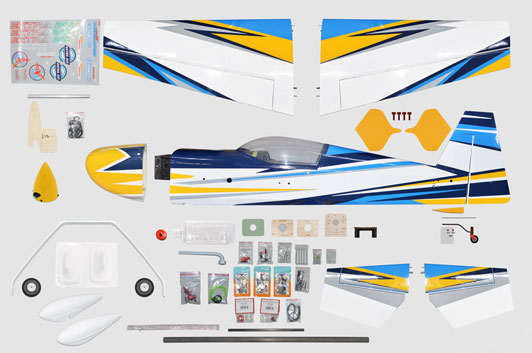

- All high-quality hardware included
Colour chart
- White (# 21010)
- Cub Yellow (# 21030)
- Corsair Blue ( #21019)
- Sky Blue (# 21053)
- Ferrari Red (# 21023)
- Grey (# 21011)
- Black (# 21071)
Packing
Packing
BOX DIMENSION
- mm X mm X mm (L x W x H)
