Introducing

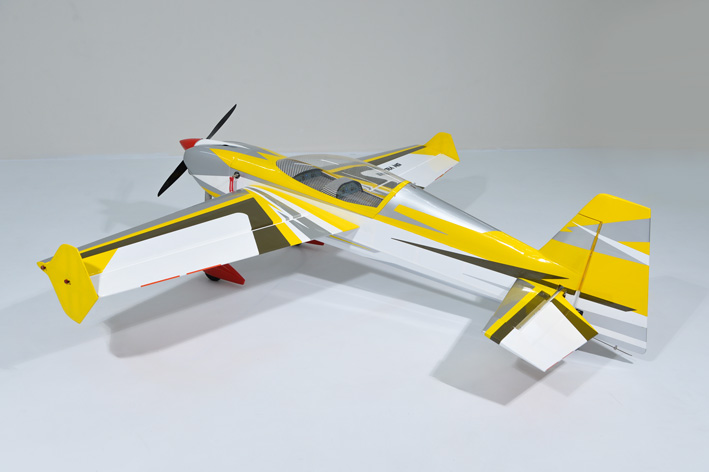

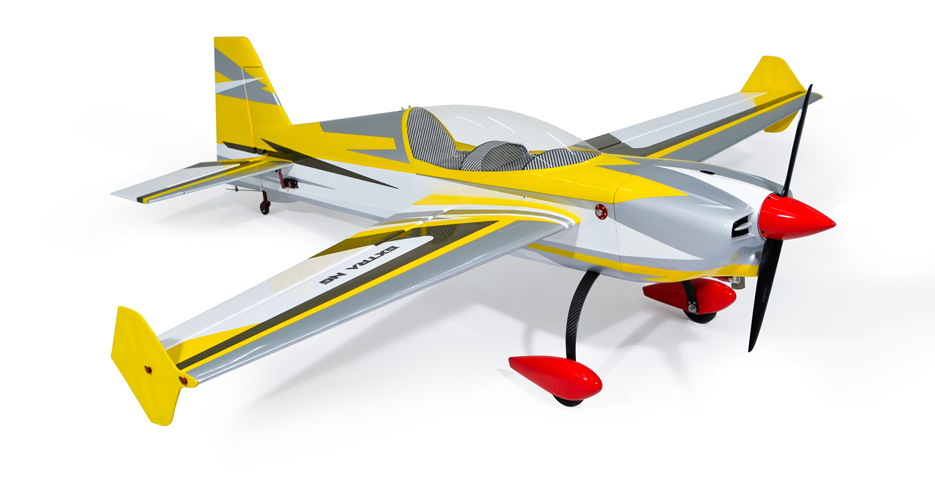

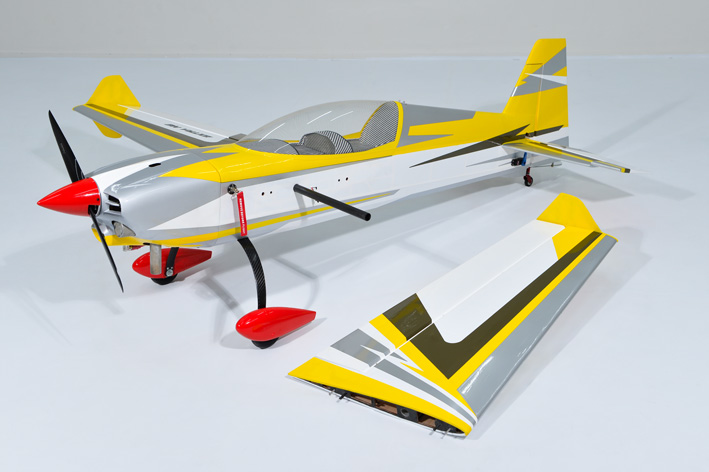

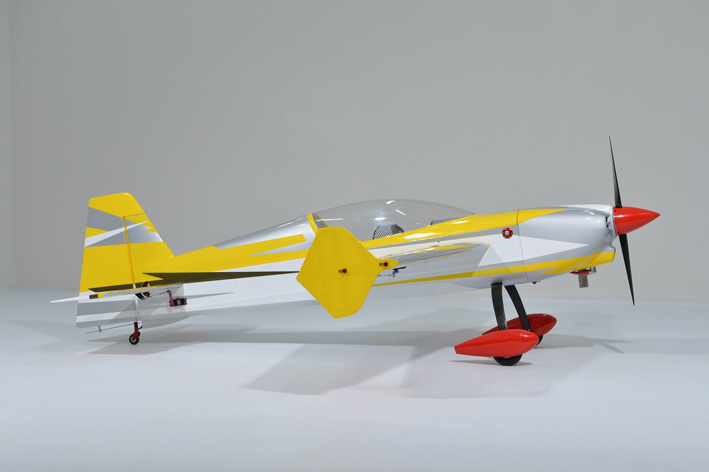

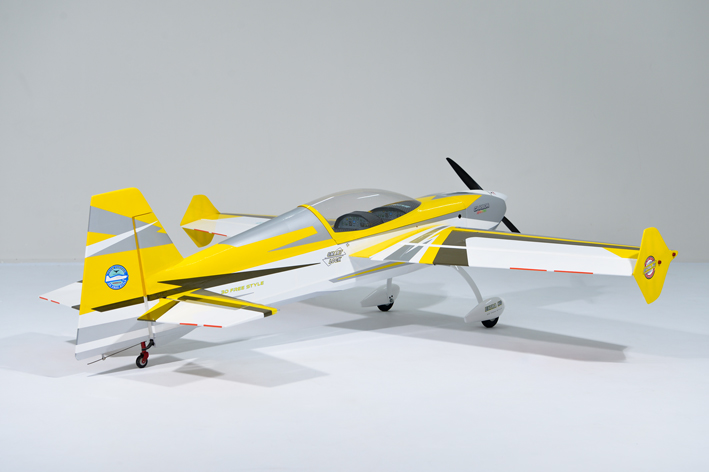

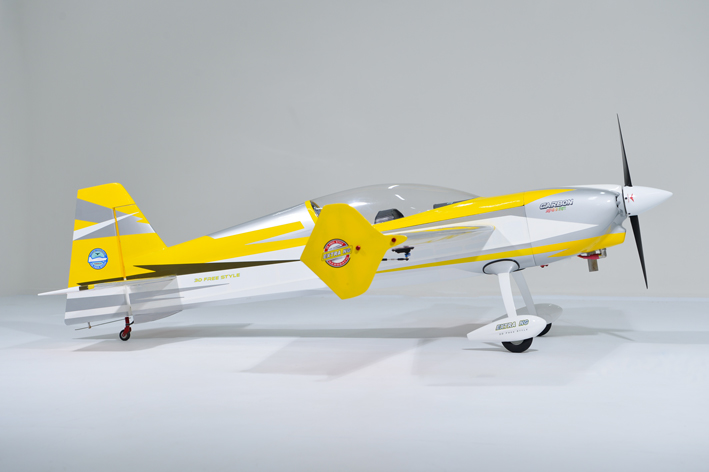

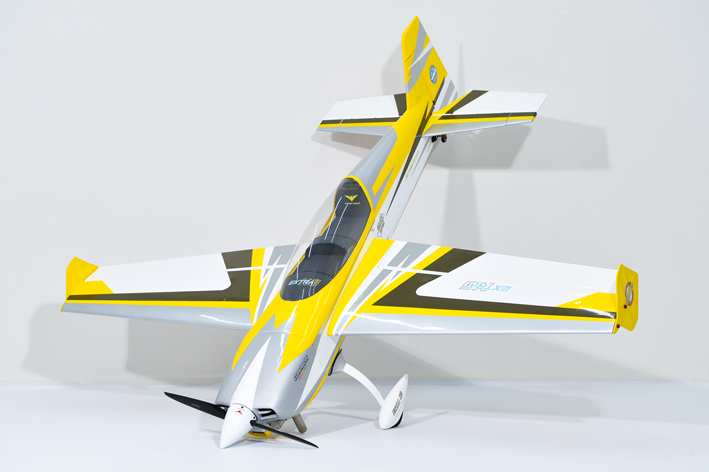

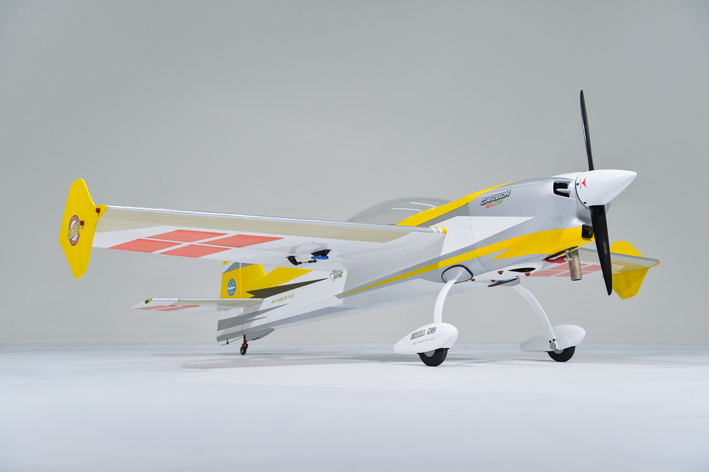

EXTRA NG 74" 35cc ARF V2
Technical data
- Wingspan: 1887mm (74 in)
- Length: 1800mm (70.8 in)
- Flying weight: 5500-5700gr
- Wing area: 66 dm2
- Gear type: Carbon fiber for main gear (included)
- Spinner size: Carbon Spinner 86mm (included)
- Gravity CG: 145mm (5.7 in) Back from the leading edge of the wing, at the fuselage
CONTROL SETTINGS:
- Elevator:
Low Rate 8-10 deg. 10-25% expo
3D Rate 45-50 deg. 55-65% expo
- Aileron:
Low Rate 15-20 deg. 40-45% expo
High Rate 38-40 deg. 60-75% expo
- Rudder:
Low Rate 20 deg 40-50% expo
High Rate 45-50 deg. 60-80% expo
POWER SYSTEM:
Gas
- Engine 35cc Propeller: Carbon gas 20 x 8
- Engine 38cc Propeller: Carbon gas 20 x 9
- Fuel tank: 360ml
Electric
- Motor: GA3500R DUALSKY
- ESC: 120HV
- Battery: Two 6S 3300-3700 mAh
- Prop: 19x10, 20x8 wood or carbon electric
SERVO: Metal gear hi-torque servos
- 2 Aileron: hi-torque 30-40 kg ( Standard size: 20x40mm )
- 2 Elevator: hi-torque 16-22 kg ( Medium size: 18x36mm )
- 1 Rudder: hi-torque 16-22 kg ( Medium size: 18x36mm )
- 1 Throttle: hi-torque 12 kg ( Medium size: 18x36mm ) (Gas Power)
Feature
- Capable of both precise and extreme 3D aerobatics
- Designed for compatibility with both GP flight

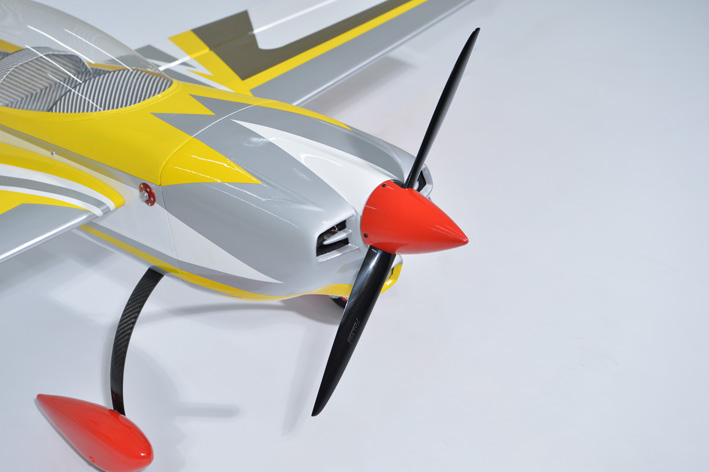

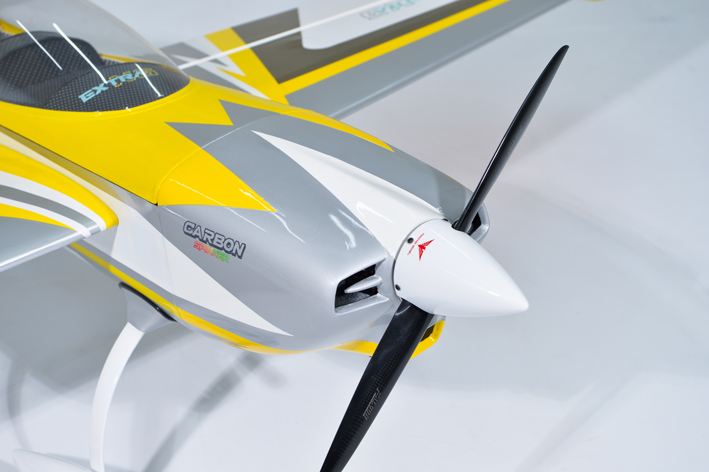

- Factory-painted Carbon fiber Spinner (included)

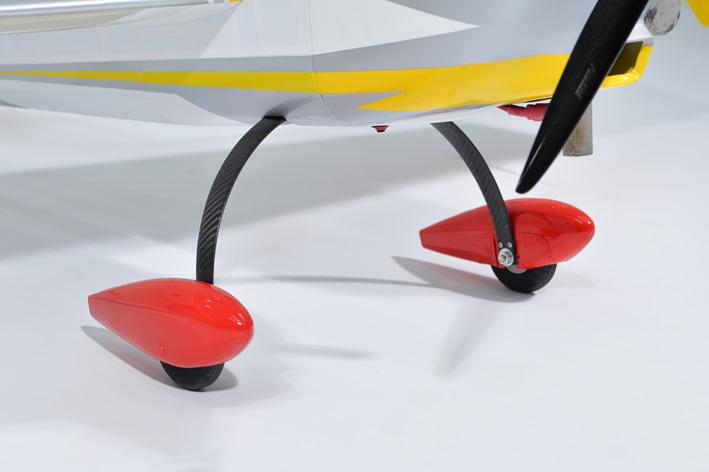

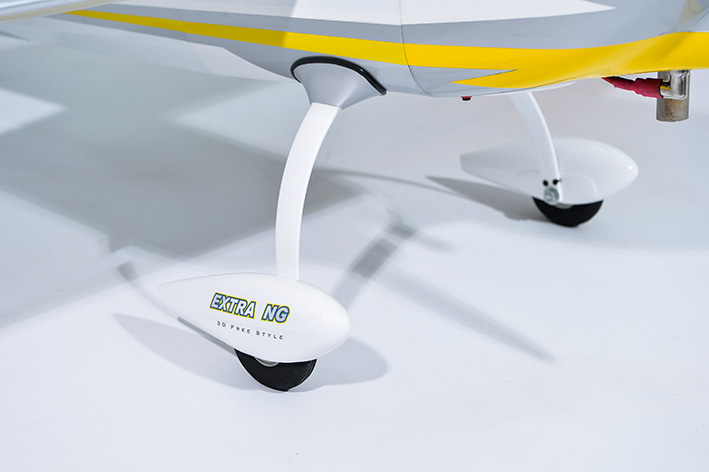

- Factory-painted Carbon fiber Main langding gear and tail gear (included)
- Factory-painted fiberglass cowling and wheel pants (included)
- Factory-painted fiberglass control horn (included)
- All ball linkages and hexagon metal rod are included (included)

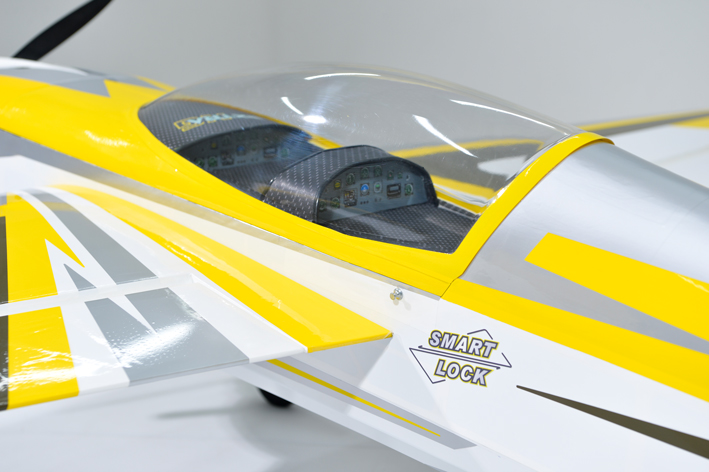

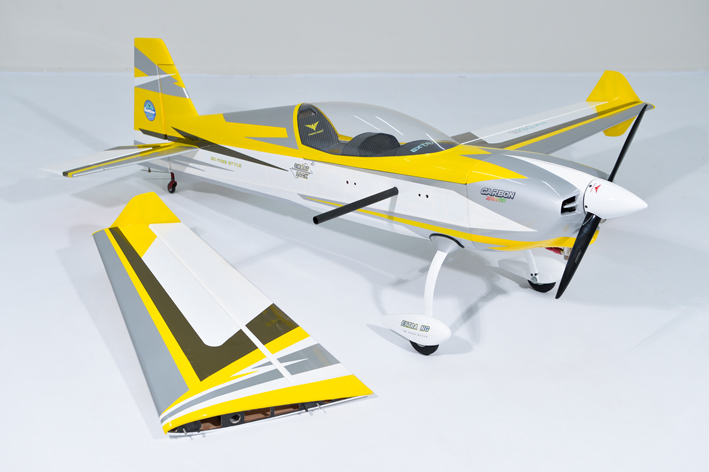

- Plug-in wings with Smart Lock system for fast assembly and easy transport (included)

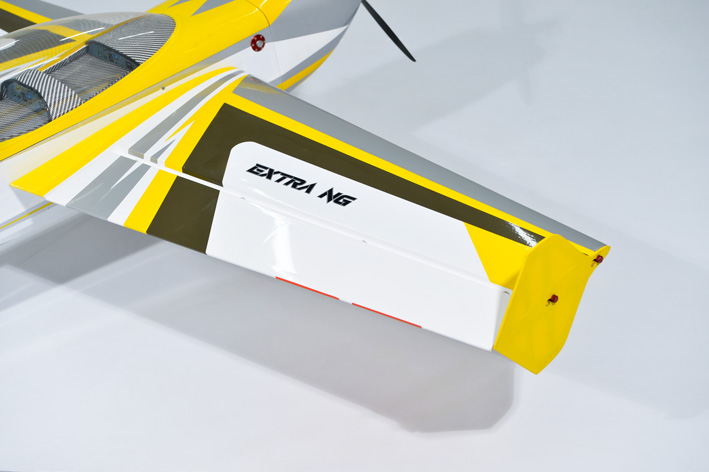

- Wing Force included for precise and stability (included)

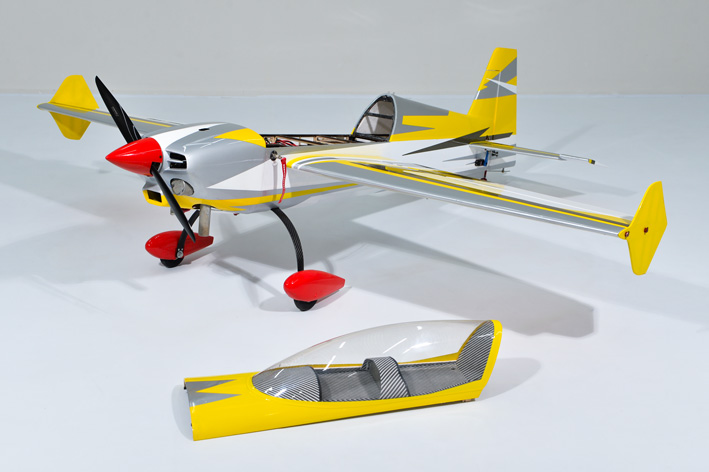

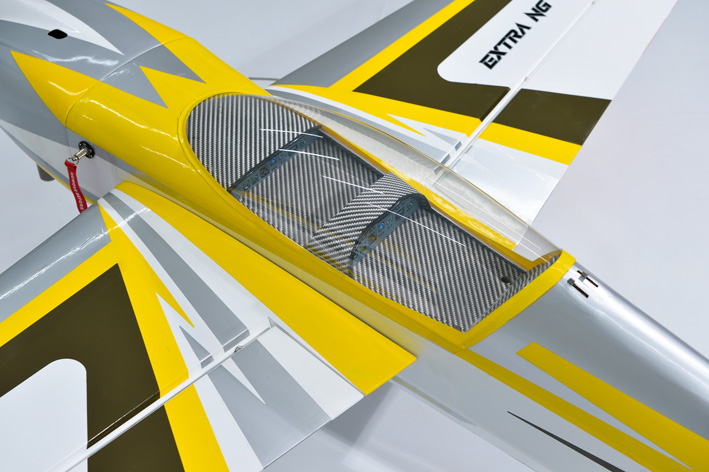

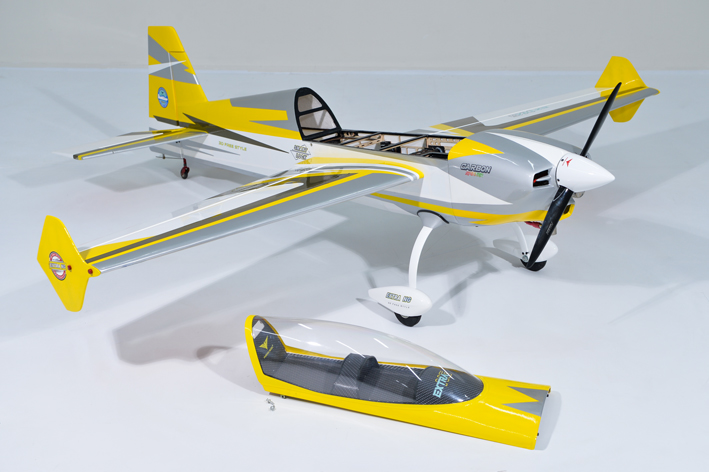

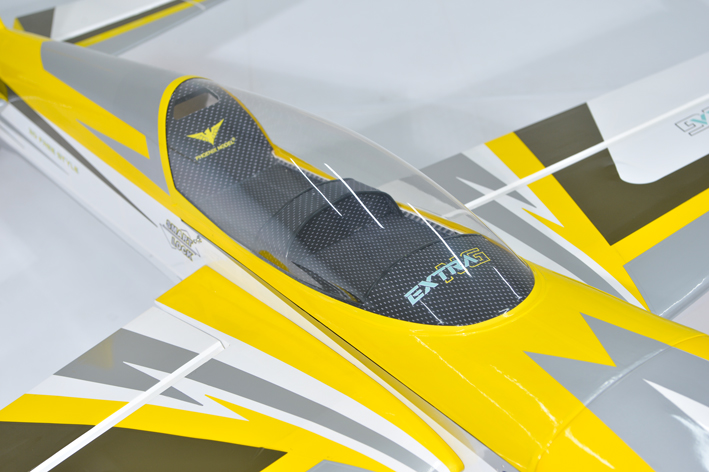

- Removable canopy for easy change lipo battery and set up radio

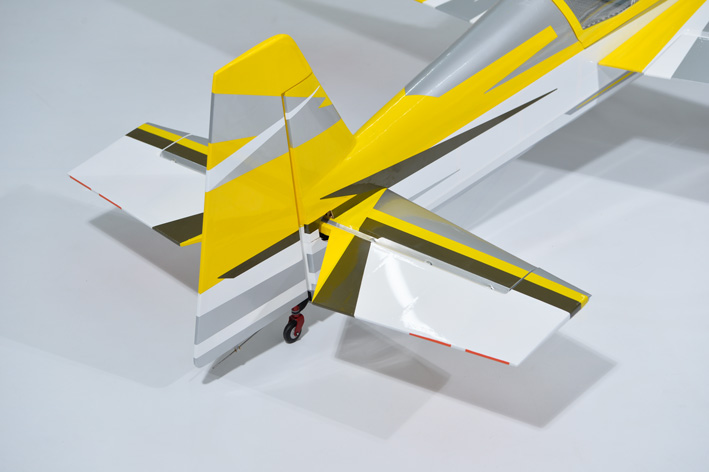

- Removable horizontal stabilizer

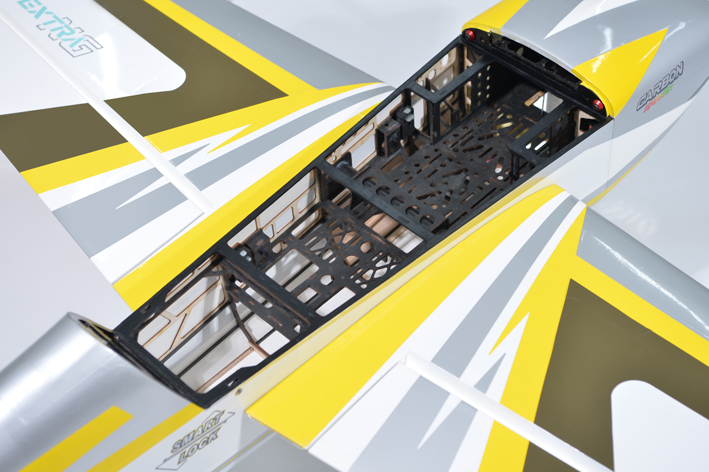

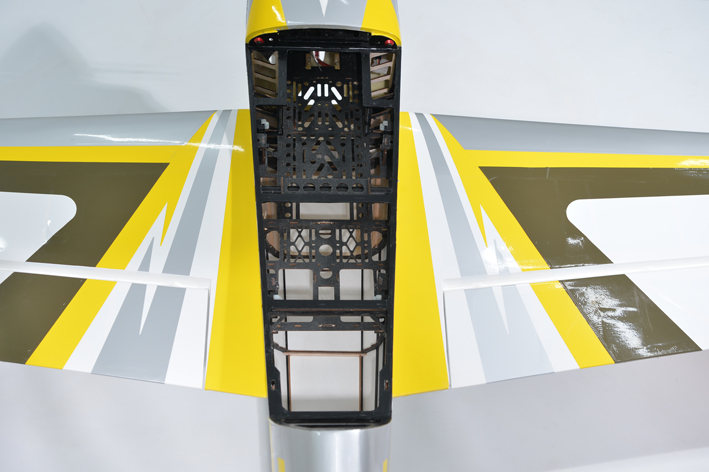

- Constructed from high-quality balsa and plywood, reinforced with Composite material for super strong and light weight
- Genuine polyester covering film ensures excellent color durability
- All high-quality hardware included
Colour chart
- Cadmium Yellow (# 21033)
- White (# 21010)
- Silver (# 21091)
- Olive Drab (# 21018)
- Orange (# 21060)
- Cream (# 21012)
Packing
BOX DIMENSION
- 1459mm X 565mm X 288mm (L x W x H)
