Introducing

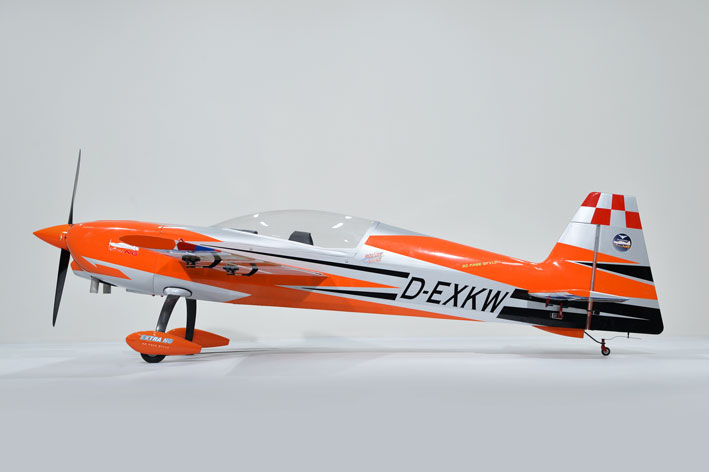

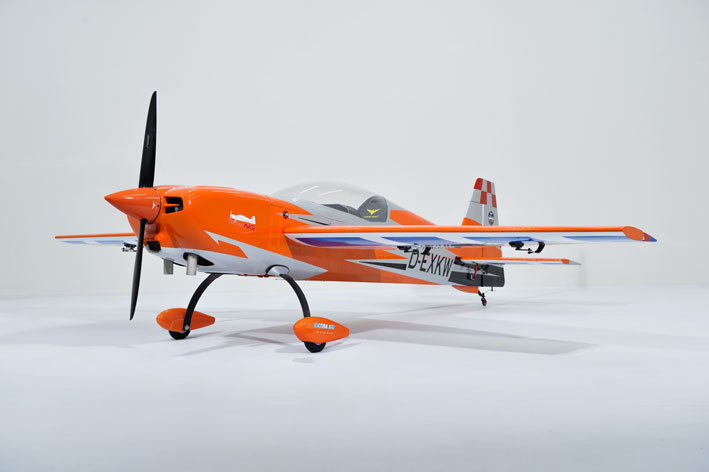

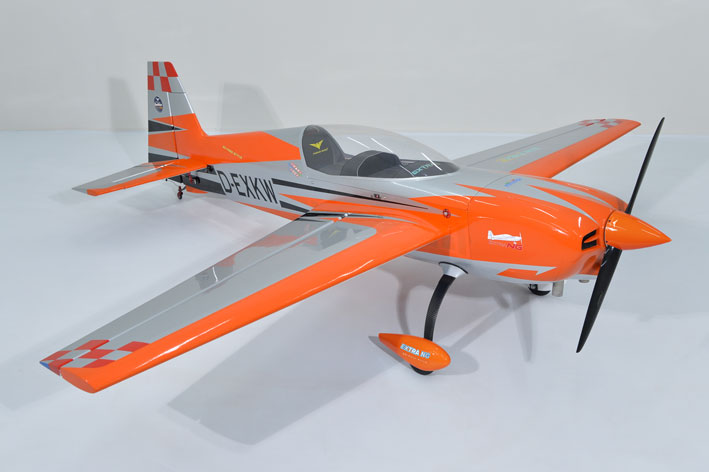

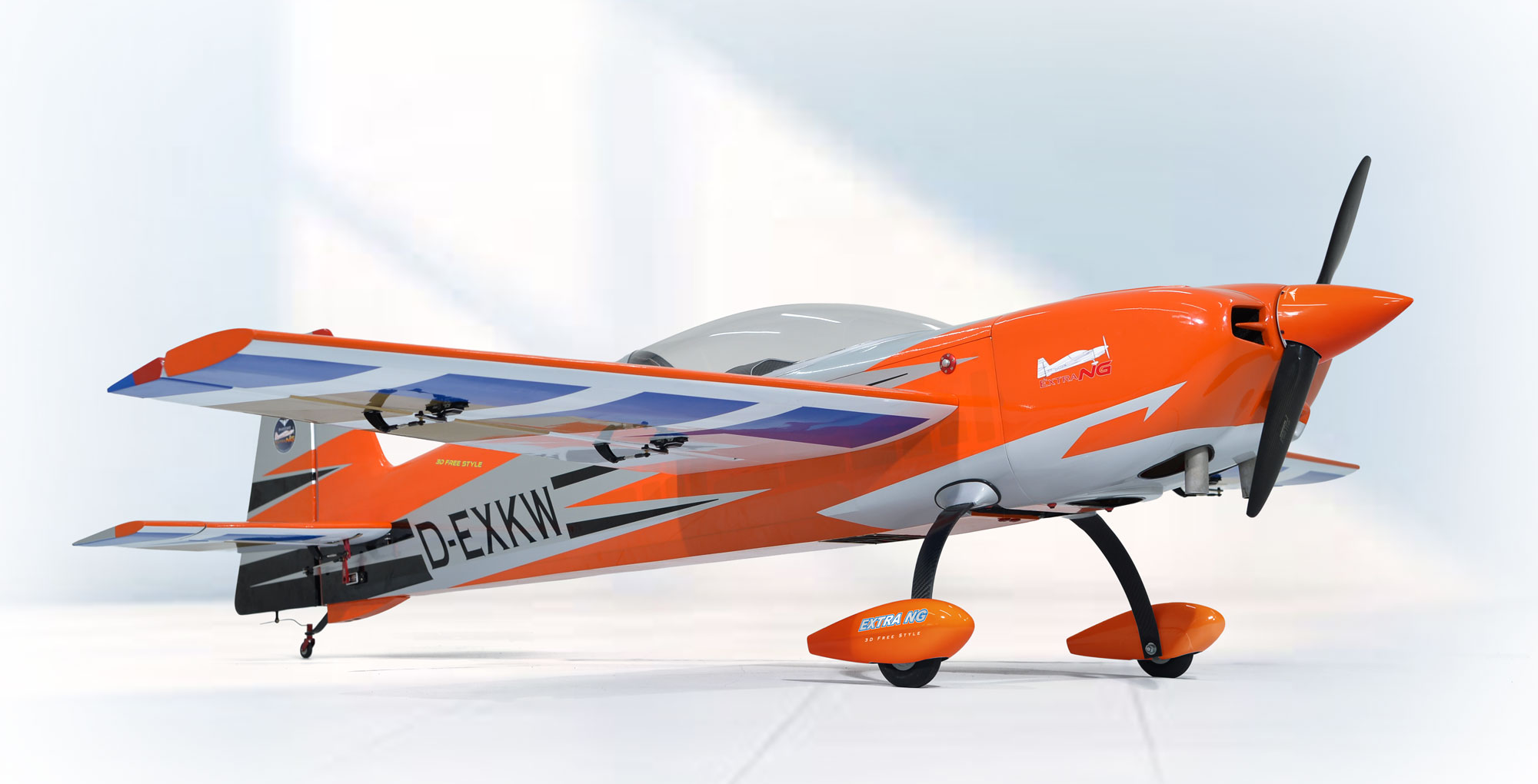

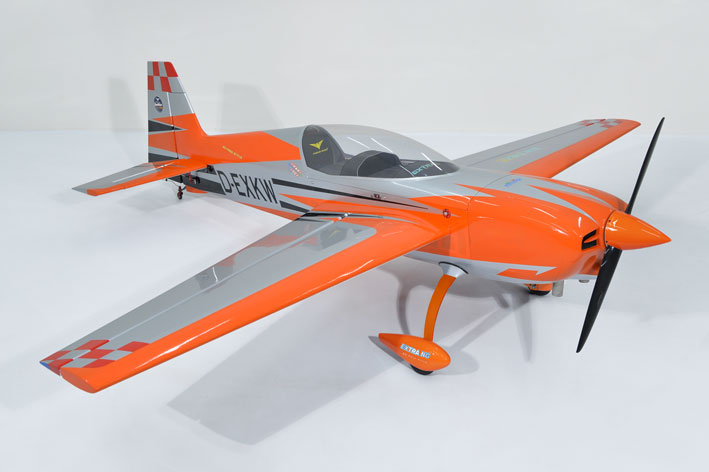

EXTRA NG 105" 120cc ARF V2
Technical data
- Wingspan: 2680mm (105.5 in)
- Length: 2551mm (100.4 in)
- Flying weight: 12550 - 12800 gr
- Wing area: 122 dm2
- Wing loading: 102.8 g/dm2
- Gear type: Carbon fiber for main gear (included)
- Spinner size: 115mm (included)
- Radio: 6 channel minimum (not included)
- Servo: 9 standard hitorque servo (up 25kg): 4 aileron; 2 elevator; 2 rudder; 1 throttle (not included)
- Propeller: suit with your engine
- Engine: 120CC Gas engine (not included)
- Ailerons:
Low rate: 18-20 degrees, 30-40% exponential
High rate: 40-45 degrees, 50-60% exponential
- Elevators:
Low rate: 10-12 degrees, 18-20% exponential
High rate: 45-60 degrees, 50-60% exponential
- Rudder:
Low rate: 20 degrees, 50-60% exponential
High rate: 45-55 degrees, 60-80% exponential
- Experience level: Intermediate
- Plane type: Aerobatic
Feature
- Capable of both precise and extreme 3D aerobatics
- Designed for compatibility with both GP flight

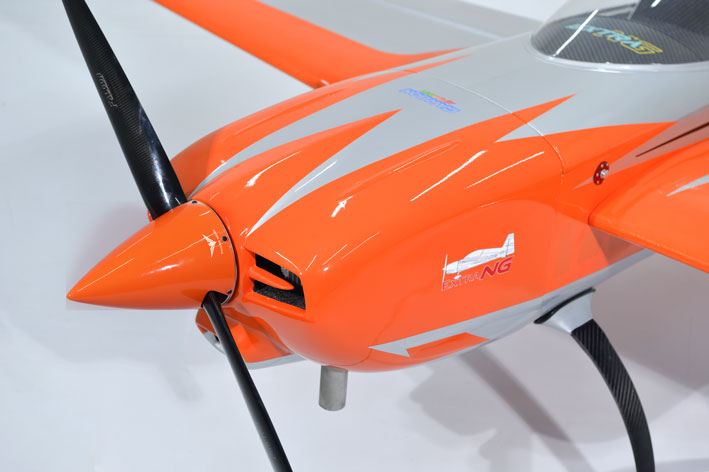

- Factory-painted Carbon fiber Spinner (included)

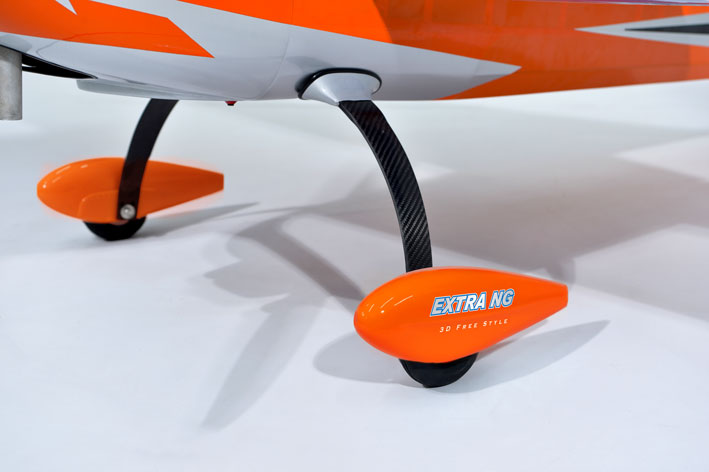

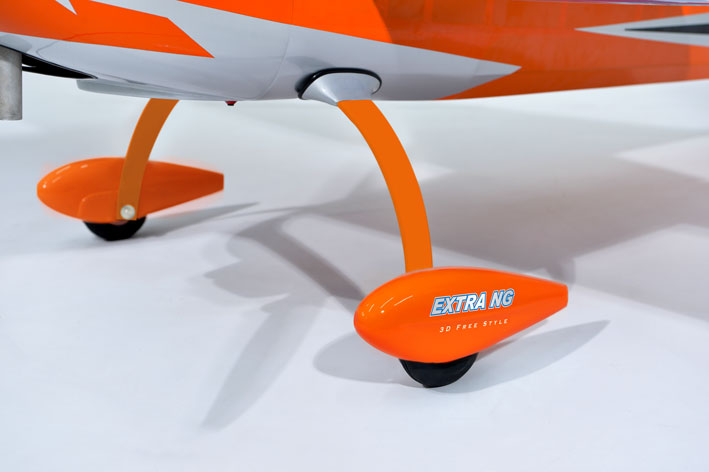

- Factory-painted Carbon fiber Main langding gear and tail gear (included)
- Factory-painted fiberglass cowling and wheel pants (included)
- Factory-painted fiberglass control horn (included)
- All ball linkages and hexagon metal rod are included (included)

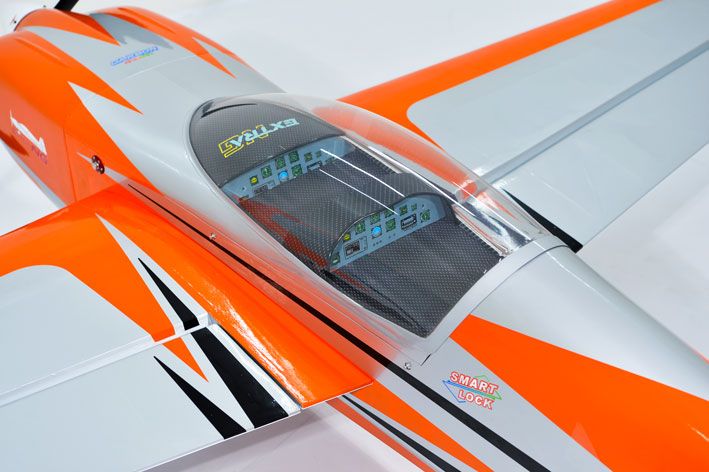

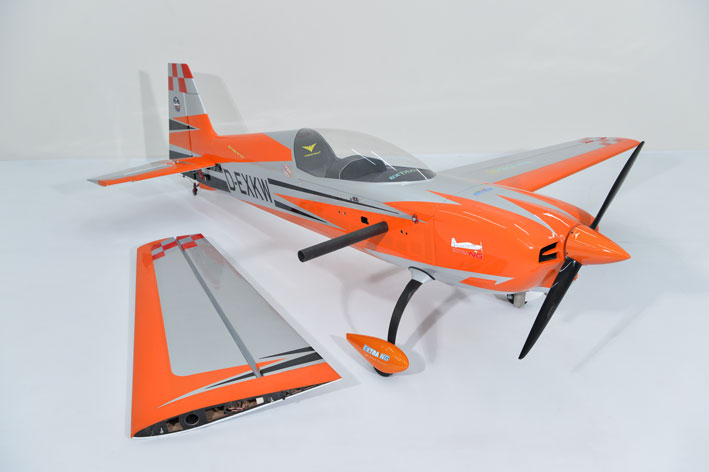

- Plug-in wings with Smart Lock system for fast assembly and easy transport (included)

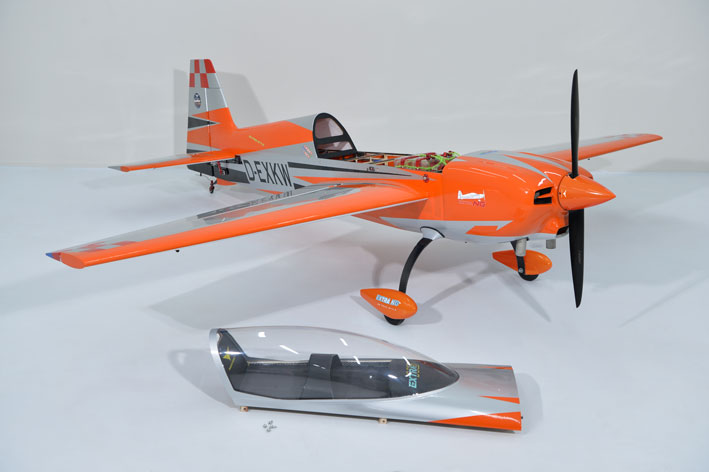

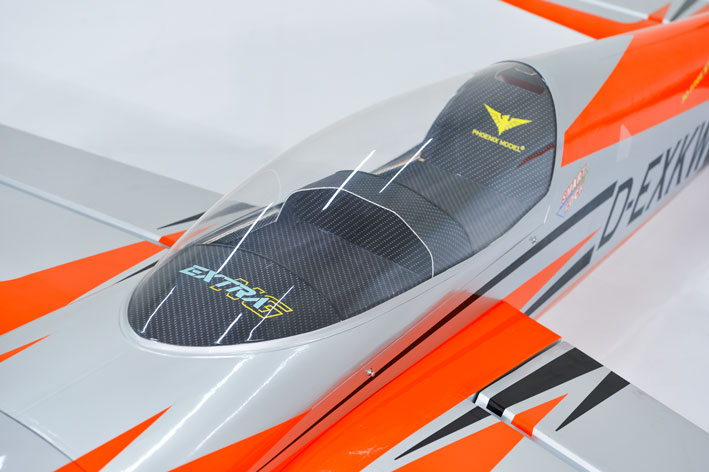

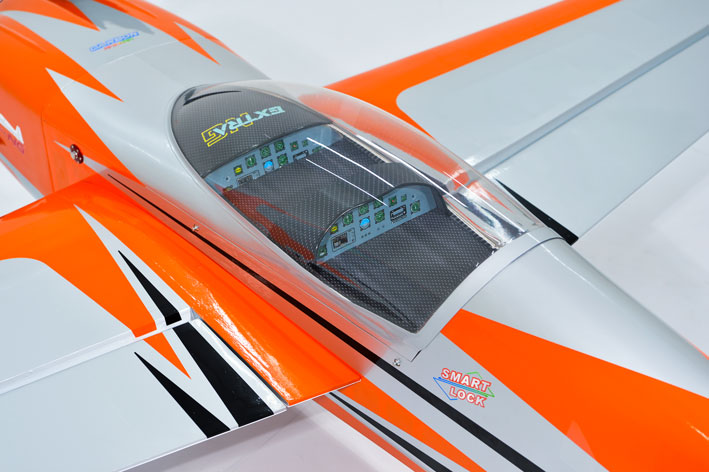

- Removable canopy for easy change lipo battery and set up radio
- Removable horizontal stabilizer

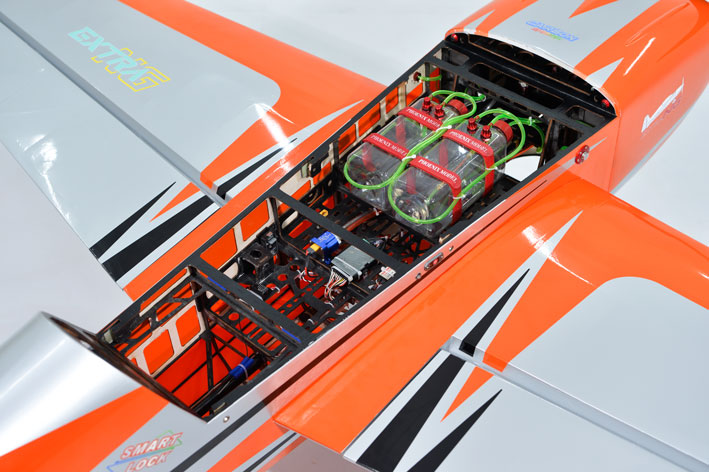

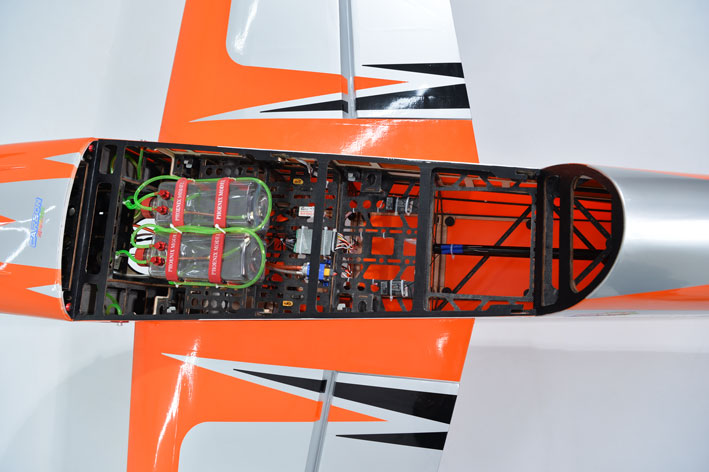

- Constructed from high-quality balsa and plywood, reinforced with Composite material for super strong and light weight
- Genuine polyester covering film ensures excellent color durability

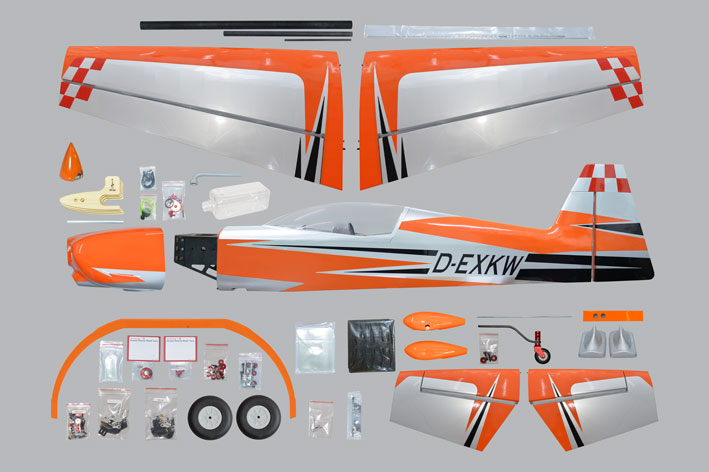

- All high-quality hardware included
Colour chart
- Orange (# 21060)
- Black (# 21071)
- Ferrari Red (# 21023)
- Grey (# 21011)
- Silver (# 21091)
- Gold (# 21092)
- Blue (# 21050)
Packing
BOX DIMENSION
- 2,059mm X 715mm X 388mm (L x W x H)
