Introducing

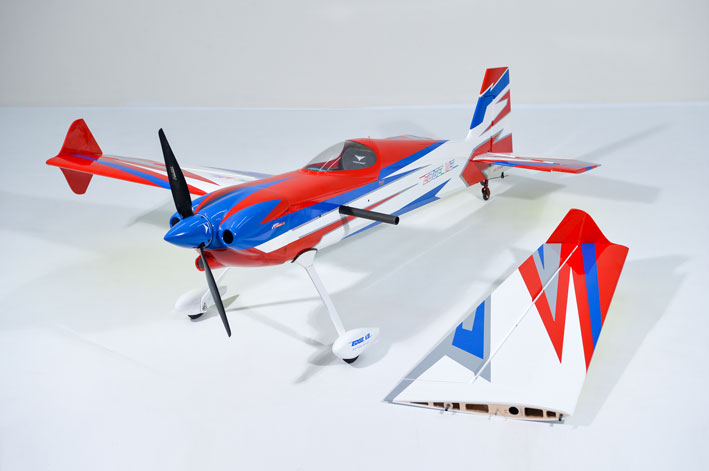

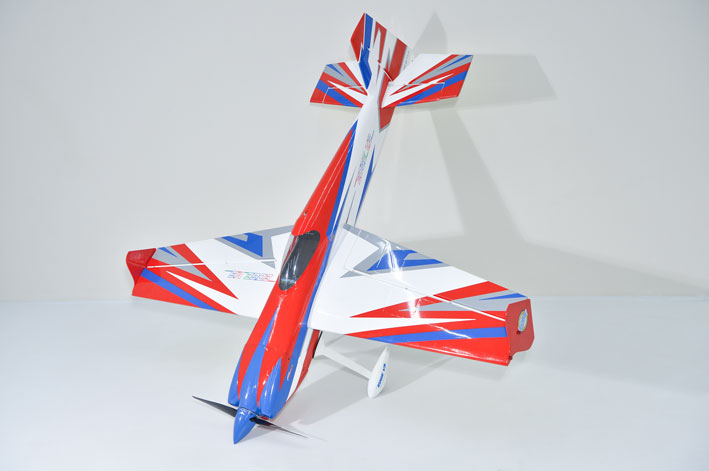

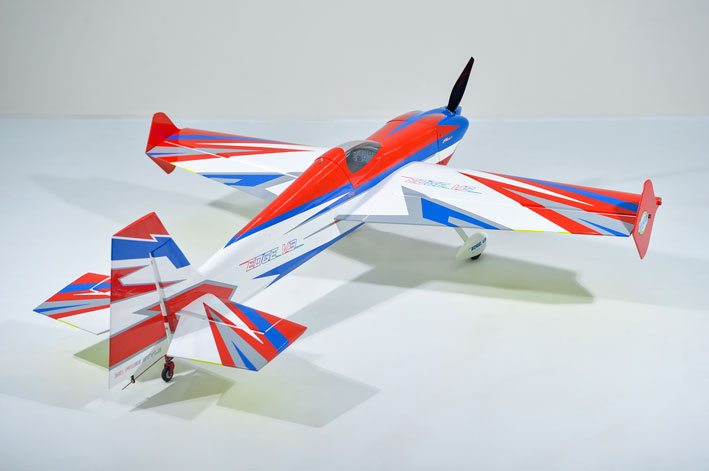

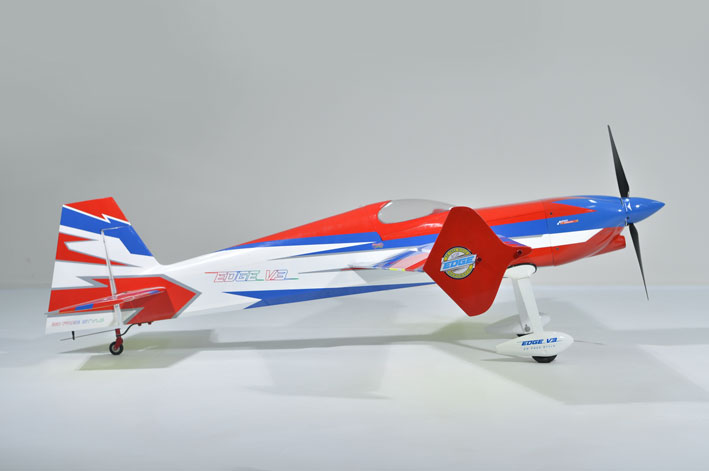

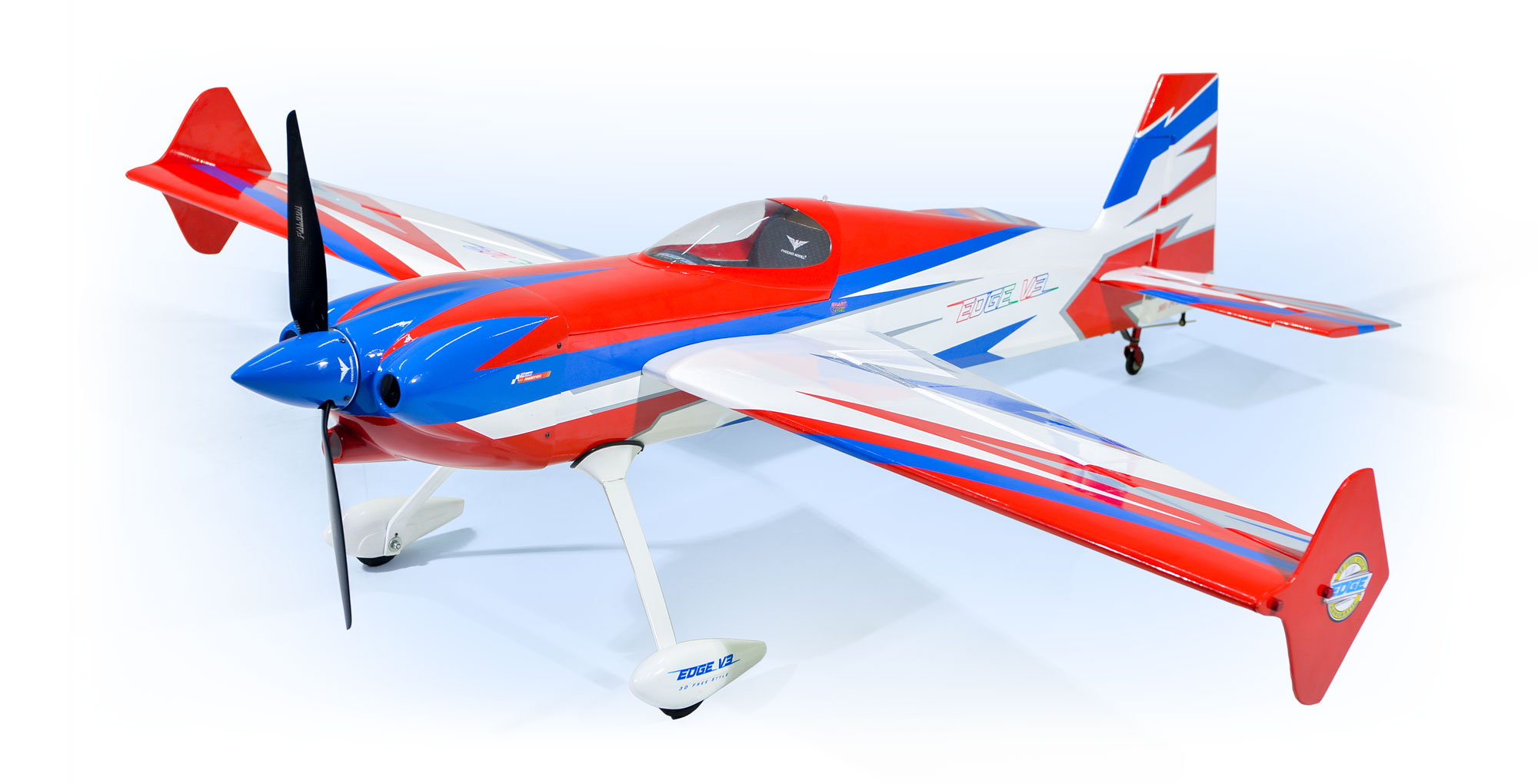

EDGE 540 V3 60'' ARF
Technical data
- Wingspan: 1524mm (60 in)
- Length: 1533mm (60.3 in)
- Flying weight: 3000-3200gr
- Wing area: 46 dm2
- Gear type: Carbon fiber for main gear (included)
- Spinner size: Spinner 70mm (included)
- Gravity CG: 105mm (4.1 in) Back from the leading edge of the wing, at the fuselage
Control settings:
- Elevator:
Low Rate 8-10 deg. 10-25% expo
3D Rate 45-50 deg. 55-65% expo
- Aileron:
Low Rate 15-20 deg. 40-45% expo
3D Rate 38-40 deg. 60-75% expo
- Rudder:
Low Rate 20 deg 40-50% expo
3D Rate 45-50 deg. 60-80% expo
POWER SYSTEM:
Electric
- Motor: Tmotor AM600
- ESC: AM116A
- Battery: 6S 3700-4500 mAh
- Prop: 16x8
SERVO: Metal gear hi-torque servos
- 2 Aileron: hi-torque 16 kg ( Medium size: 18x36mm )
- 1 Elevator: hi-torque 16 kg ( Medium size: 18x36mm )
- 1 Rudder: hi-torque 7-10 kg ( Medium size: 18x36mm )
Feature

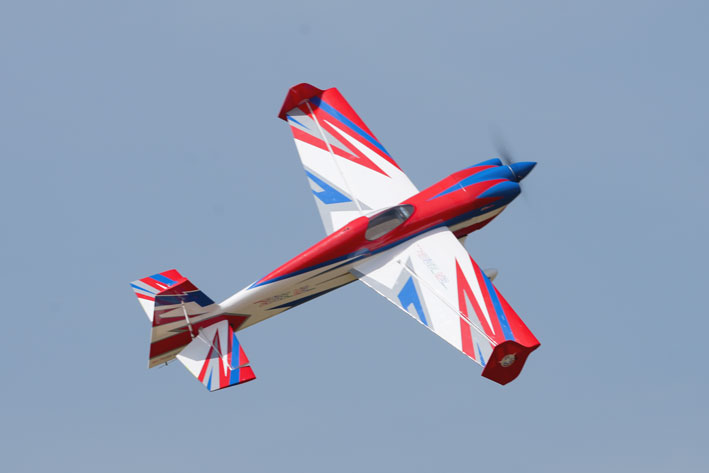

- Capable of both precise and extreme 3D aerobatics
- Designed for compatibility with EP flight

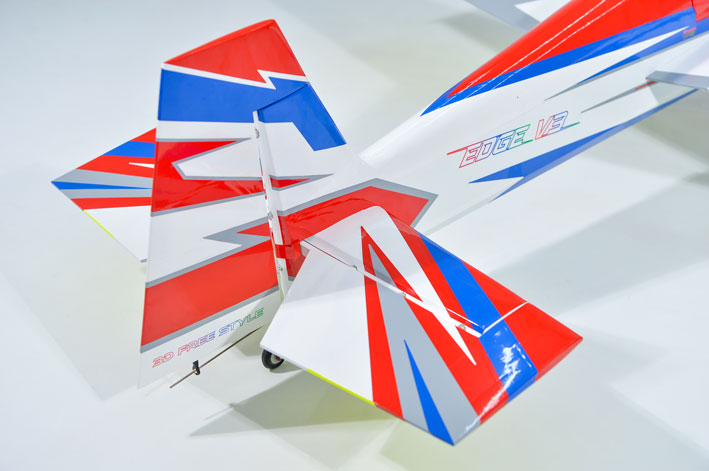

- Factory-painted Carbon fiber Main langding gear and tail gear (included)

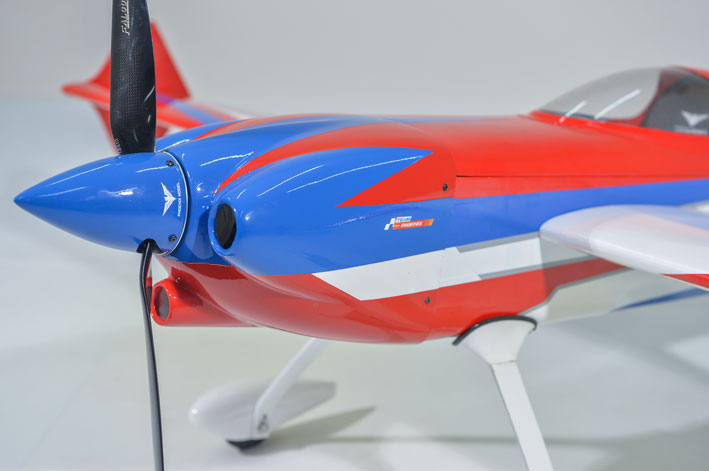

- Factory-painted fiberglass cowling (included)
- Factory-painted fiberglass control horn (included)
- All ball linkages and hexagon metal rod are included (included)

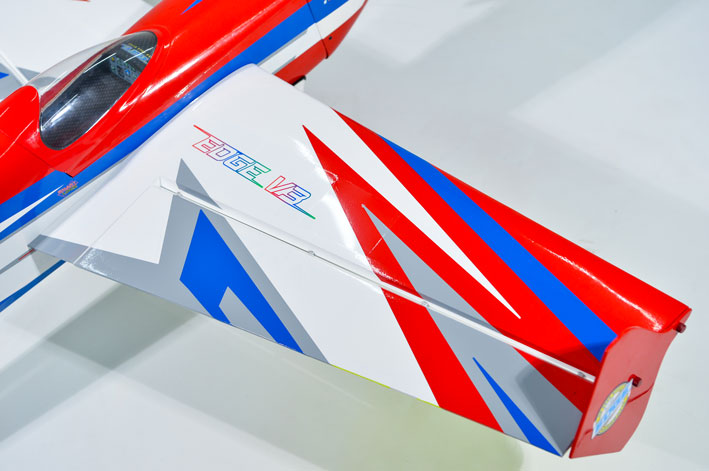

- Plug-in wings with Smart Lock system for fast assembly and easy transport (included)
- Wing Force included for precise and stability (included)

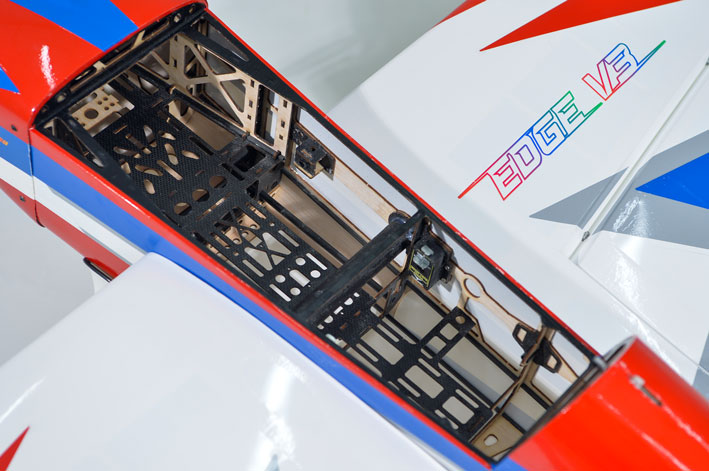

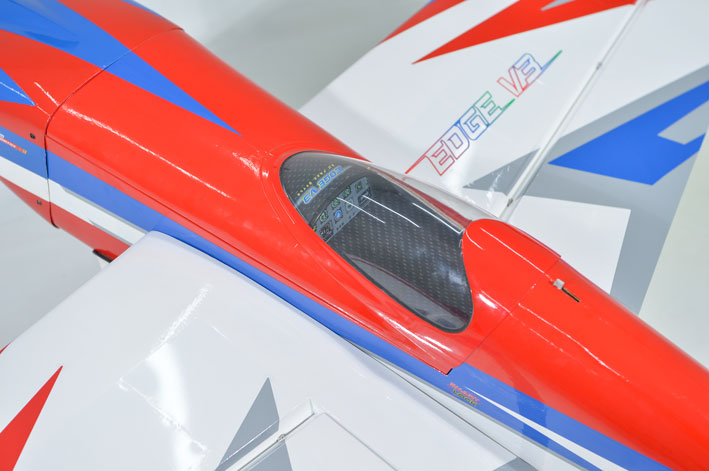

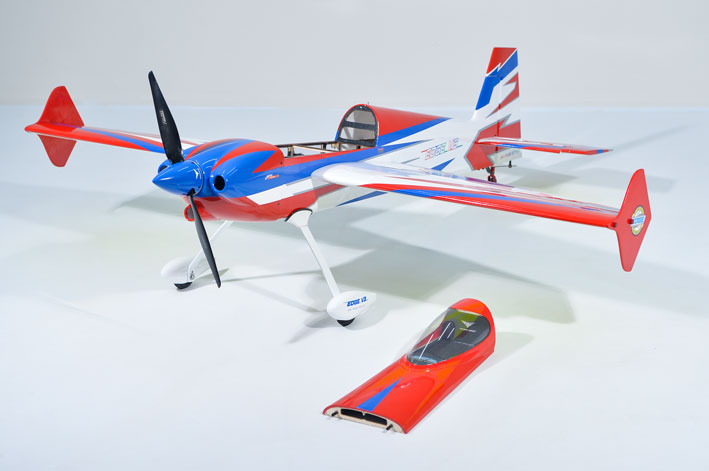

- Removable canopy for easy change lipo battery and set up radio

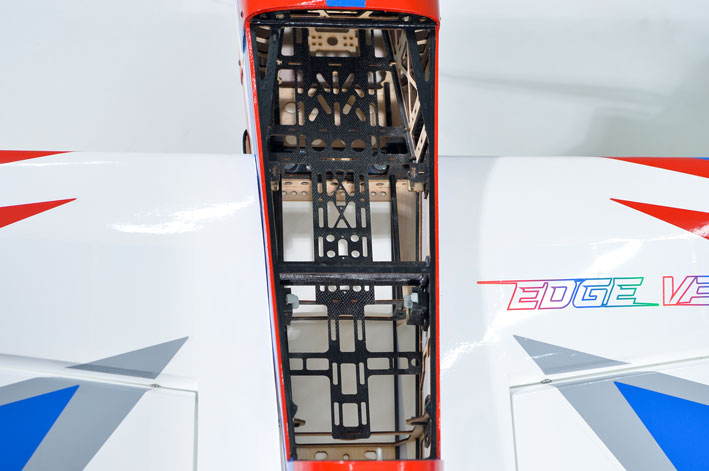

- Constructed from high-quality balsa and plywood, reinforced with Composite material for super strong and light weight
- Genuine polyester covering film ensures excellent color durability
- All high-quality hardware included
Colour chart
- Ferrari Red (# 21023)
- Blue (# 21050)
- Grey (# 21011)
- White (# 21010)
- Flour Yellow (# 21031)
Packing
BOX DIMENSION
- 1,309mm X 480mm X 248mm (L x W x H)
