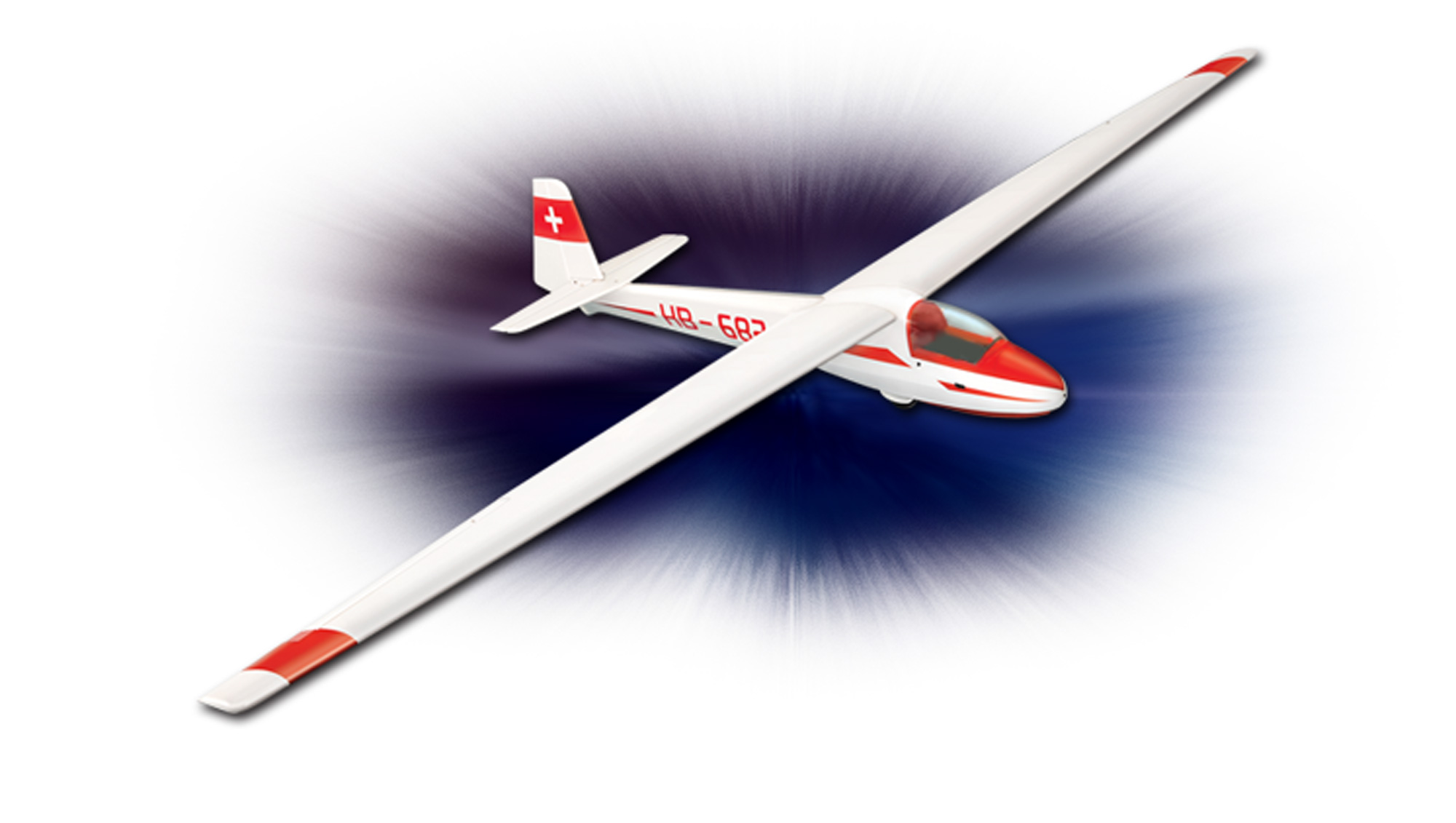

GL04 - Ka-8b ELECTRIC 6000 ARF 1/2.5 SCALE

GL04 - Ka-8b ELECTRIC 6000 ARF 1/2.5 SCALE

Introducing

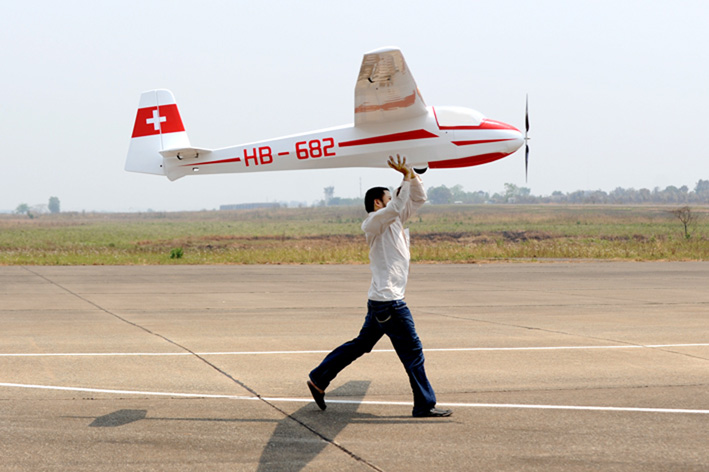

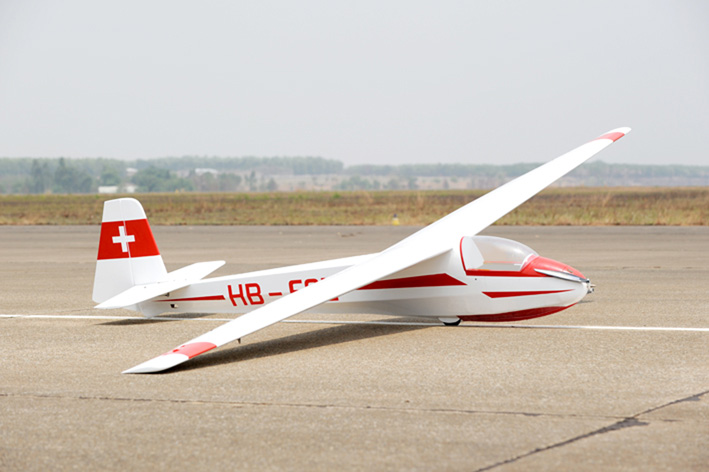

   Phoenix Model introduces the Ka-8b SLS ,a scale 6m sailplane designed with the sport enthusiast in mind. Built by expert craftsmen, this top-quality balsa/ply glider is covered in ORACOVER for a durable and attractive finish. The Ka-8b Glider is equally at home on the slope or aerotowed using its releasable tow hook

Technical data

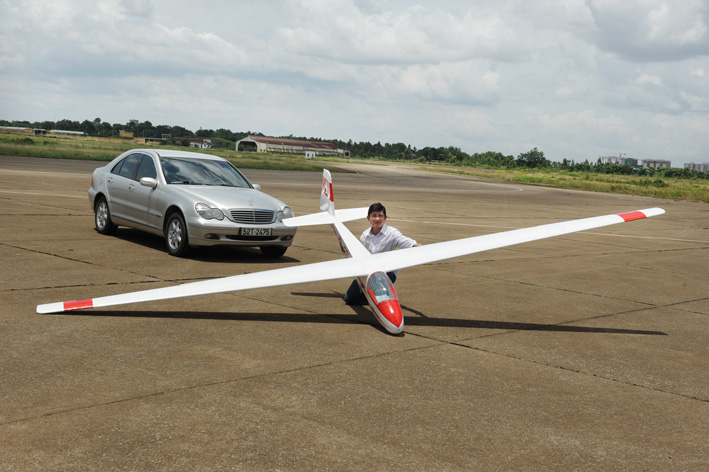

- Wingspan: 6000mm (236.2 in)
- Length: 2873mm (113.1 in)
- Flying weight: 14-18 kg
- Wing area: 219.4 dm2
- Wing loading: 64g/dm2
- Wing type: HQ airfoils
- Covering type: Genuine ORACOVER®
- Radio: 6 channel minimum (not included)

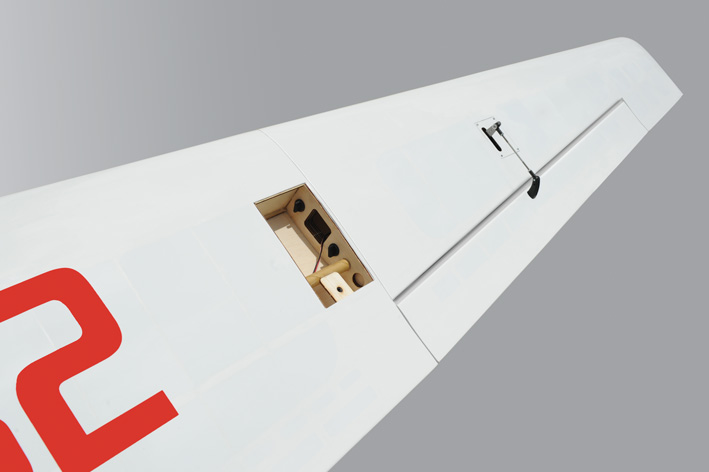

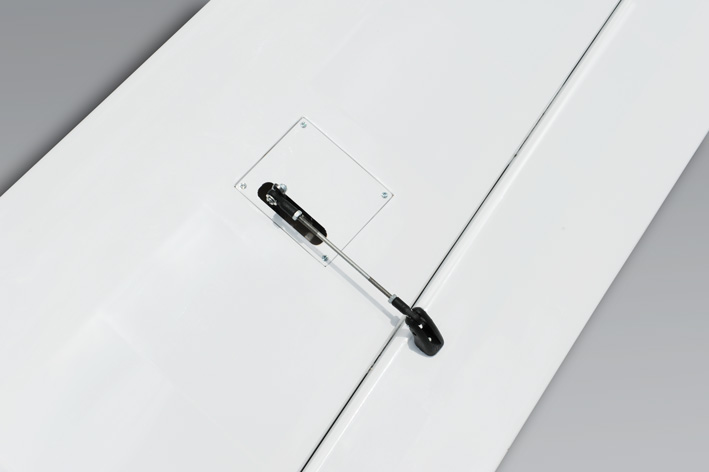

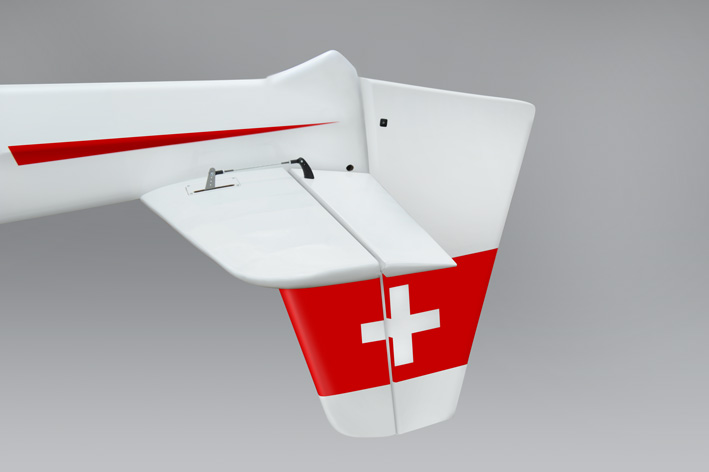

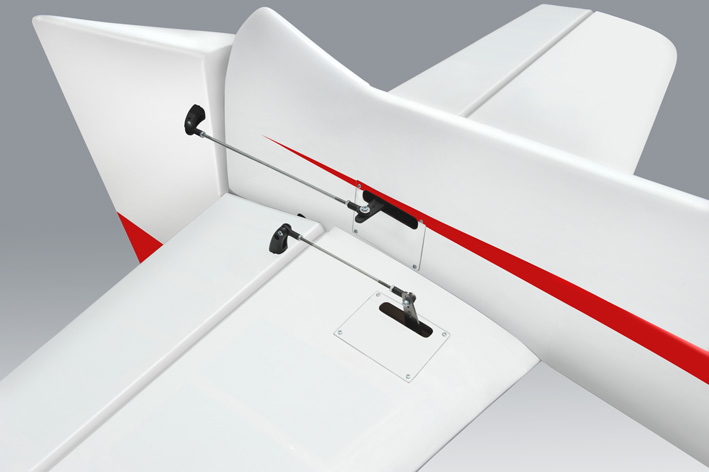

- Servo: 6 standard hi-torque servo: 2 aileron; 2 elevator; 1 rudder (not included)
- Recommended receiver battery: 6.0V 2400/2600mAh NiMH (2) (not included)
- Servo mount: 21mm x 42 mm
- Propeller: suit with your engine
- Motor: brushless outrunner 2600-3000 W, 149 KV (not included)
- Experience level: Intermediate
- Plane type: Giant Scale Sailplane
RECOMMENDED MOTOR AND BATTERY SET UP
- Motor: hacker brushless a60-18l kv149 (not included)
- Propeller: hacker 20x13 foilding (not included)
- Lipo cell: 12 cells / 5000 – 6000mAh (not included)
- Esc: 120-160A / HV (not included)

Feature

- Quality materials and genuine ORACOVER covering
- Elegant scale appearance with outstanding thermal performance
- Extremely lightweight laser-cut all-wood construction

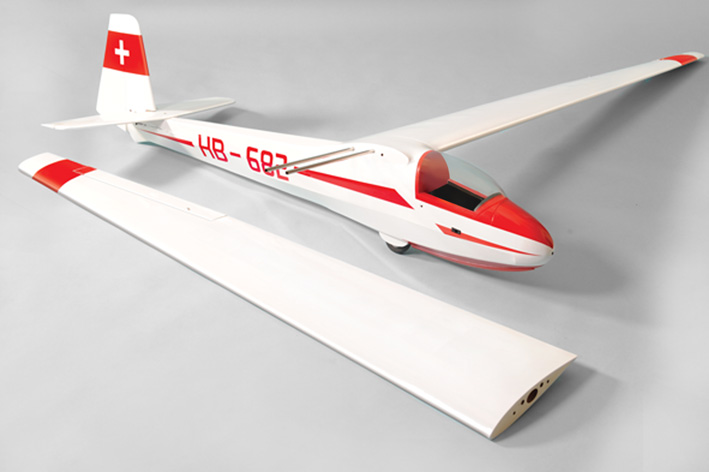

- Separate fuselage and wing structure allows compact transportation
- Great scale looks that will grace any flying site

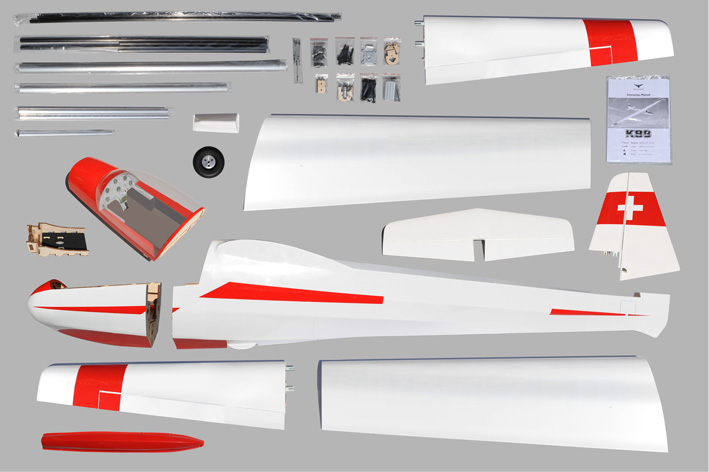

- High-quality hardware package included

Colour chart

-  White               (# 21010)
-  Ferrari Red     (# 21023)

Packing

BOX DIMENSION
   - 2090mm X 580mm X 400mm (L x W x H)
