Introducing

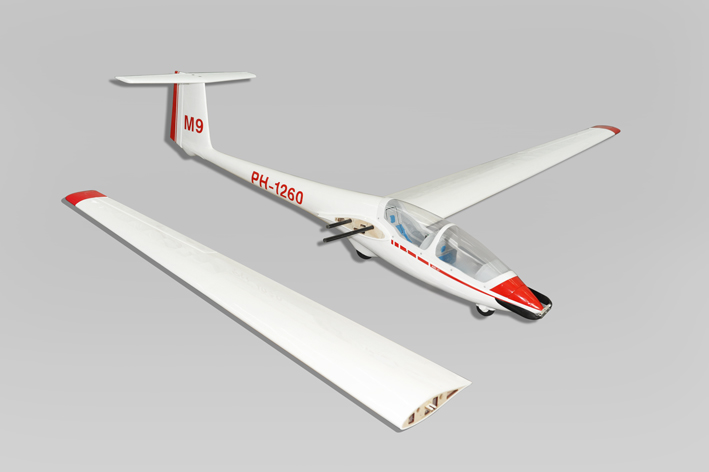

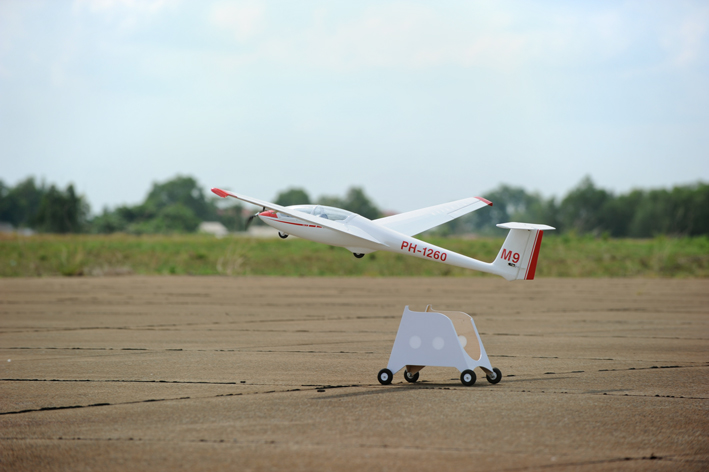

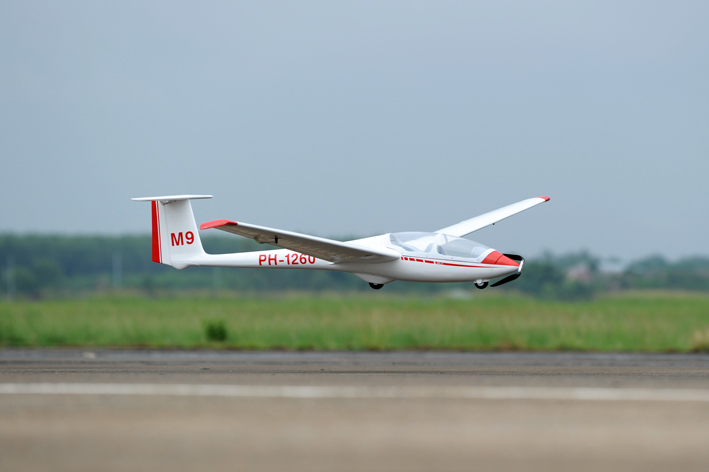

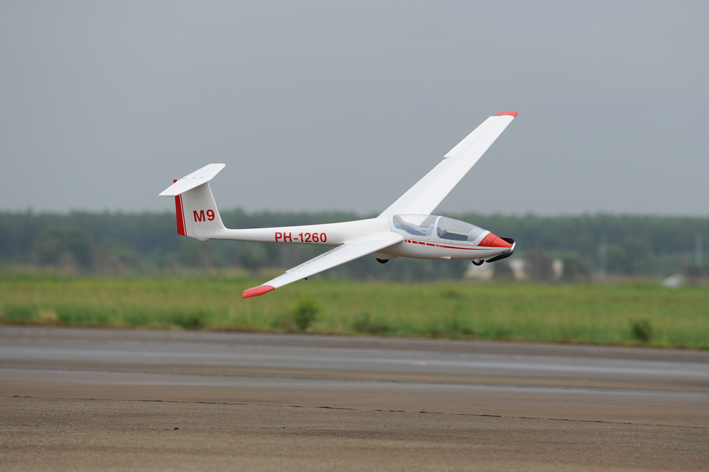

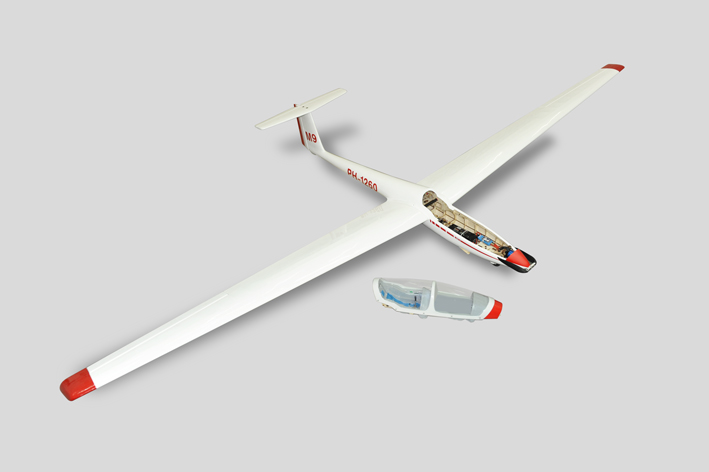

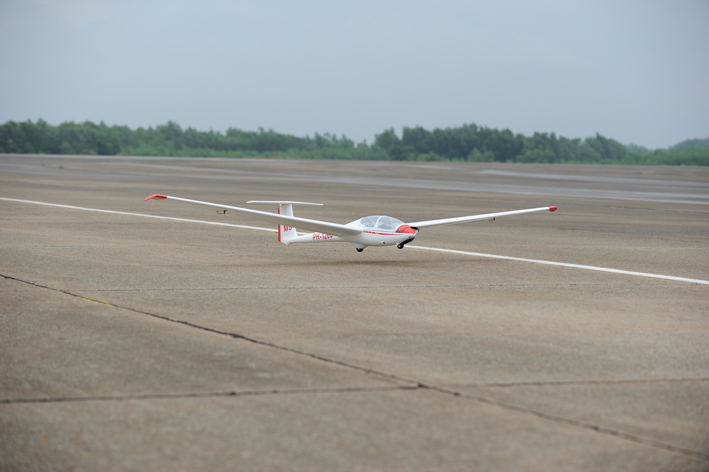

Phoenix Model's ASK-21 is a beautiful Scale Glider. This 1/5-scale replica of this internationally recognized sailplane comes with plenty of scale details.
With its graceful 3,2 meter wingspan, optional speed brakes and fixed landing gear, this ASK-21 is sure to be an exciting airplane. Flown with electric power or as a pure sailplane from high start to aerotow, it is the perfect glider.
Technical data
- Wingspan: 3200mm (125,9 in)
- Length: 1650mm (64,9 in)
- Flying weight: 3000gr – 3200gr
- Wing area: 64.5 dm2
- Wing loading: 46g/dm2
- Wing type: HQ profile
- Radio: 4 channel – 4 mini hi-torque servo : 2 aileron; 1 elevator; 1 rudder (not included)
- Recommended receiver battery: 4,8- 6.0V 1000/1500mAh NiMH (not included)
- Servo mount : 12mm x 24mm
- Flap: 2 electric flaps 440mm (not included)
- Spinner size: Aluminum H hub propeller holder, shaft 6mm (not included)
- Motor: brushless outrunner 700-800 W, 750 KV
- Propeller: suit with your engine
- Experience level: Intermediate
- Plane type: Scale Sailplane

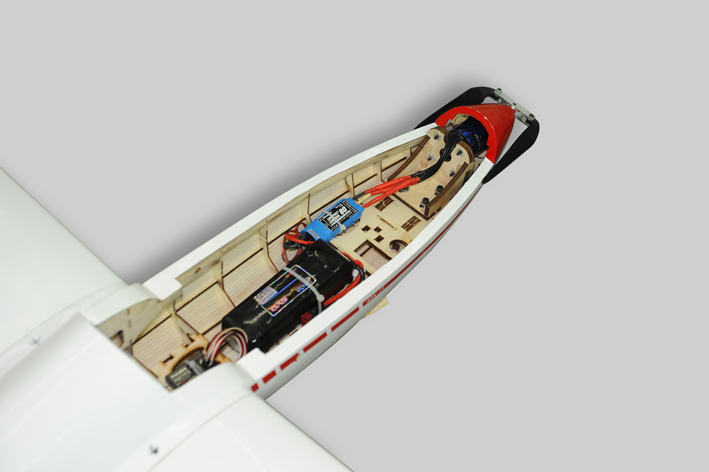

RECOMMENDED MOTOR AND BATTERY SET UP
- Motor: OS OMA – 3825-750 (Not included)
- Propeller: 12x8 ; 13x8 (not included)
- Lipo cell: 3-4 cells / 2400 – 3000mAh (not included)
- Esc: 50-80 A (not included)
Feature
-Authentic aerobatic performance

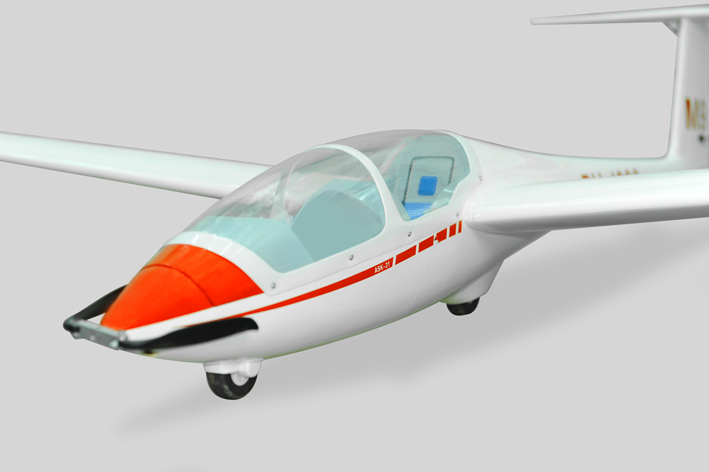

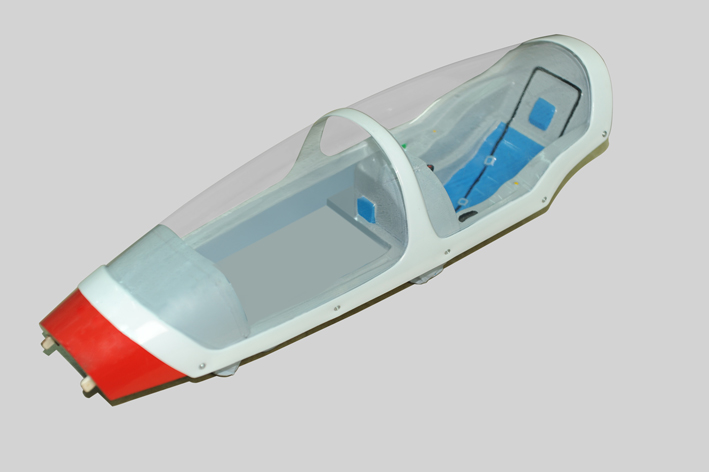

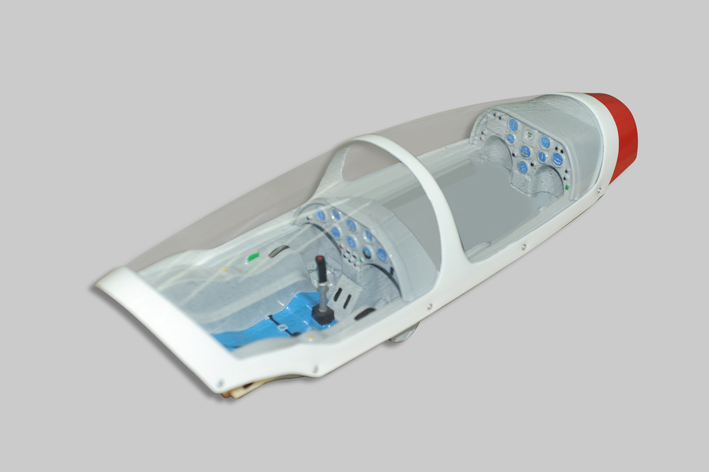

-Fully detailed, factory-installed cockpit, pilot and canopy
-Extremely lightweight laser-cut all-wood construction
-True-to-scale artwork
-High-quality hardware package included
Colour chart
- White (# 21010)
- Ferrari Red (# 21023)
Packing
BOX DIMENSION
- 1634mm X 300mm X 313mm (L x W x H)
