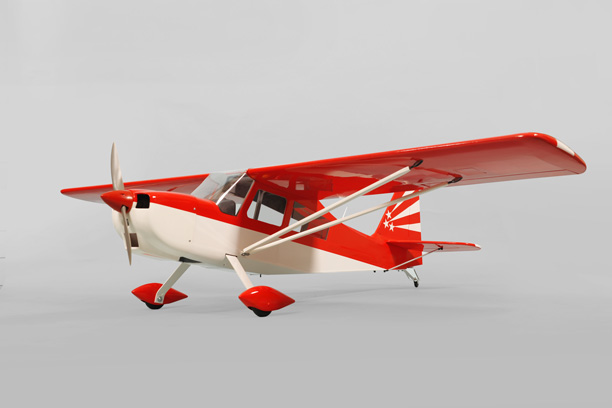

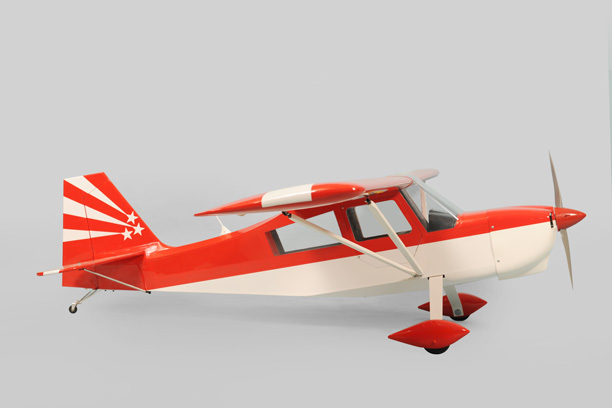

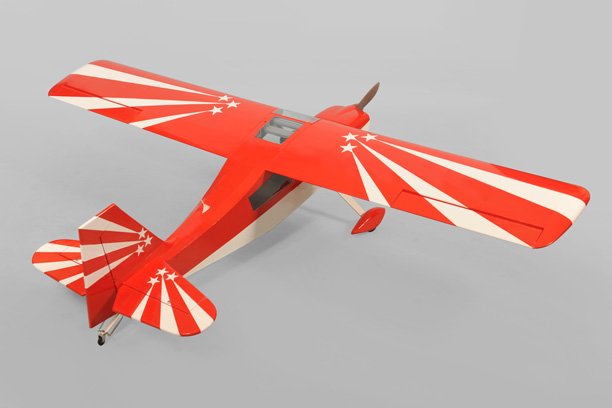

PH164 - DECATHLON 2,3m 90,5" ARF 20-26cc

Introducing

Phoenix Model has brilliantly captured the spirit of the Super Decathlon with this outstanding. 3-D computer engineering produces parts that fit with absolute precision for straight, strong assembly. The wings are removable should you want to disassemble it for transportation or storage. A real favourite with scale pilots, this is a Decathlon you will be proud to own.

Technical data

- Wingspan: 2300mm (90.5 in)

- Length: 1534mm (60.3 in)

- Flying weight: 5.9-6.1 kg

- Wing area: 78 dm2

- Wing loading: 75.6g/dm2

- Wing type: Naca airfoils

- Gear type: Aluminum Hi-grade for main gear and spring wire for tail gear (included)

- Spinner size: Plastic 70mm (included)

- Radio: 4 channel minimum (not included)

- Servo: 6 Hi-torque standard servo: 2 aileron; 2 elevator; 1 rudder; 1 throttle (not included)

- Recommended receiver battery: 4.8-6V / 1200-2000mAh NiMH (not included)

- Servo mount: 21mm x 42 mm

- Propeller: suit with your engine

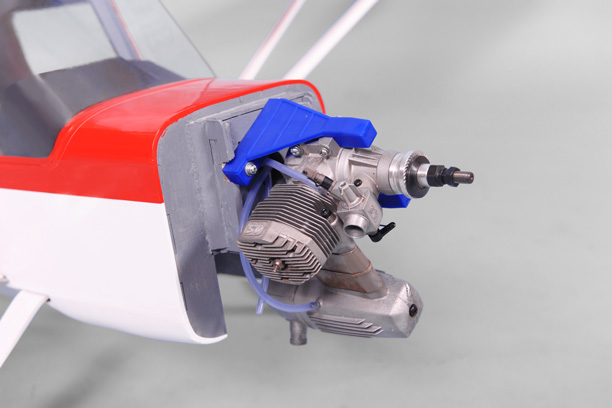

- Engine: 1.20/ 2-stroke or 1.40/4-stroke glow engine or 20-26cc gas engine (not included)

- Motor: brushless outrunner 1600-2200 W, 450 KV (not included)

- Experience level: Intermediate

- Plane type: Scale Civilian

RECOMMENDED MOTOR AND BATTERY SET UP

- Motor: RIMFIRE 1.20 (not included)

- Lipo cell: 5-6 cells / 5500 – 6000mAh (not included)

- Esc: 80A (not included)

Feature

- Designed for compatibility with both GP and EP flight

- Top quality balsa/light plywood construction

- Full-depth cockpit and instrument panel and pilot included

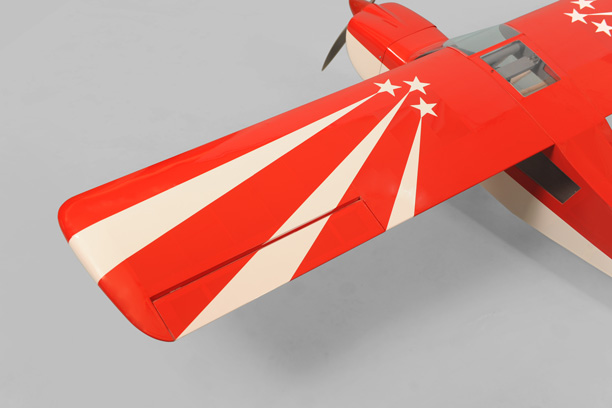

- Bolt-on two-piece wing for easy transport and setup at the field

- Strong Light Weight Construction

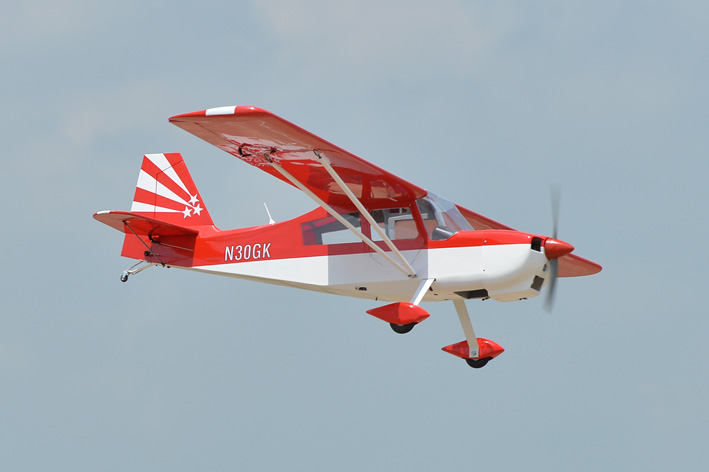

- Superb flying characteristics, plus an accurate scale outline

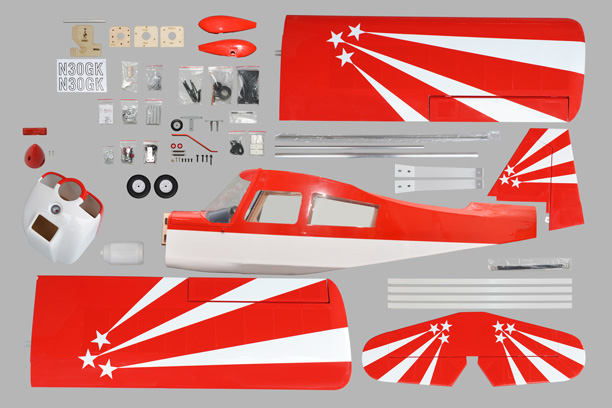

- High-quality hardware package included

Colour chart

- White (# 21010)
- Ferrari Red (# 21023)

Packing

BOX DIMENSION
-1239mm X 460mm X 238mm (L x W x H)
