Introducing

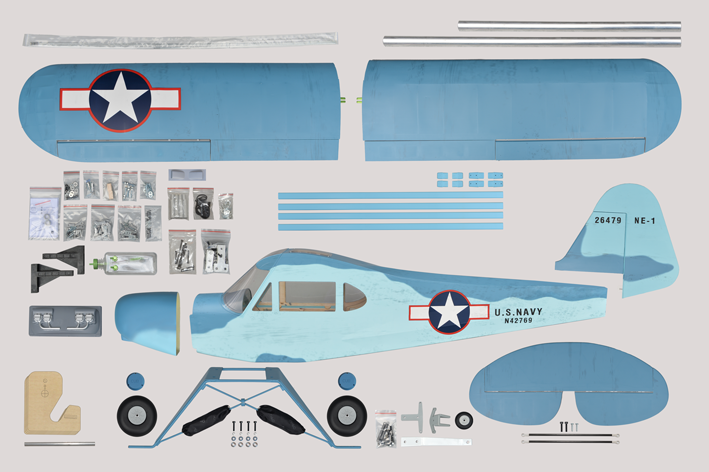

NAVI PIPER J3 CUB 2,3m - 90,5'' ARF 20-26cc
Technical data
- Wingspan: 2300mm (90.5 in)
- Length: 1541mm (60.6 in)
- Flying weight: 6100-6500 g
- Wing area: 78 dm2
- Wing loading: 78.2 g/dm2
- Wing type: Naca airfoils
- Spinner size: scale type (not included)
- Radio: 6 channel minimum (not included)
- Servo: 7 standard servo: 2 aileron; 2 flap; 1 elevator; 1 rudder; 1 throttle (not included)
- Recommended receiver battery: 6.0V 2400/2600mAh NiMH (not included)
- Servo mount: 21mm x 42 mm
- Propeller: suit with your engine
- Engine: 1.20 two stroke glow engine/ 20-26cc two stroke gas engine (not included)
- Motor: brushless outrunner 2000-2400 W, 450 KV (not included)
- Experience level: Intermediate
- Plane type: Scale Civilian
RECOMMENDED MOTOR AND BATTERY SET UP
- Motor: Rimfire 1.20 (not included)
- Propeller: 16x6 to 17x8 (not included)
- Lipo cell: 6S LiPo (not included)
- Esc: 80 Amp (not included)
Feature
- Superb flying characteristics, plus an accurate scale outline
- Functional panel flaps
- Two-pieces Wing - Making assembly and transport super convenient
- Hard points for mounting the scale float kit (sold separately) are already built into the fuselage
- Quick-connect, streamlined wing struts
- Operational cockpit side-doors
- Designed for compatibility with both GP and EP flight
- Extremely lightweight laser-cut all-wood construction
- Cockpit and instrument panel included
- High-quality hardware package included
Colour chart
Not update...
Packing
BOX DIMENSION
- 1319mm X 415mm X 308mm (L x W x H)
Video for this product is temporary unavailable
