PH158 - TUCANO MKII 1,73m 68,1" W/Electric Retract 20-26cc ARF

PH158 - TUCANO MKII 1,73m 68,1

Introducing

    A great airplane! Its Semi symmetrical airfoil and long tail moment deliver precise aerobatic performance for experienced pilots, yet the Tucano's superb stability and ultralight wing loading make it an ideal first low–wing model. This ARF has been designed to keep building time to a minimum; it's 90% pre-built, with premium covering. The better you get the more fun it gives you!

Technical data

- Wingspan: 1730mm (68.1 in)
- Length: 1450mm (57 in)
- Flying weight: 4300-4800 g
- Wing area: 46.5 dm2
- Wing loading: 92g/dm2
- Wing type: Naca airfoils

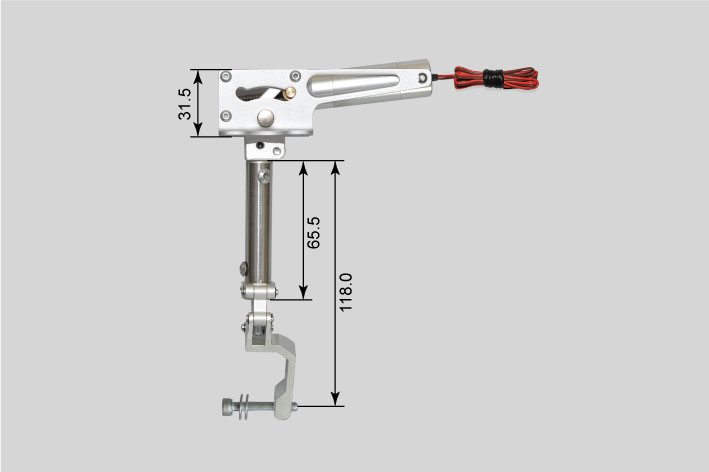

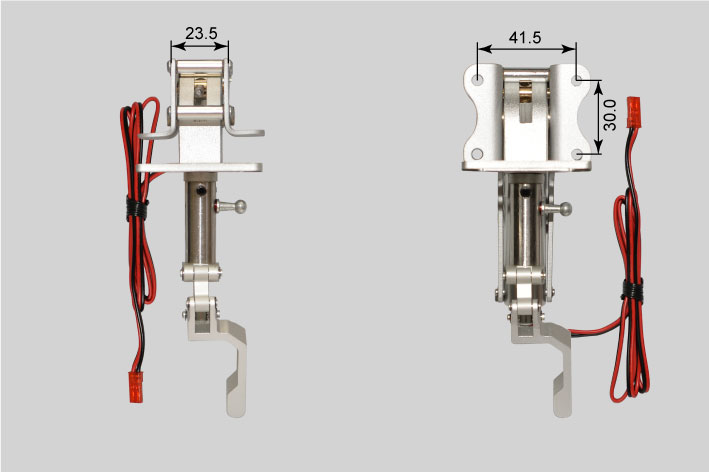

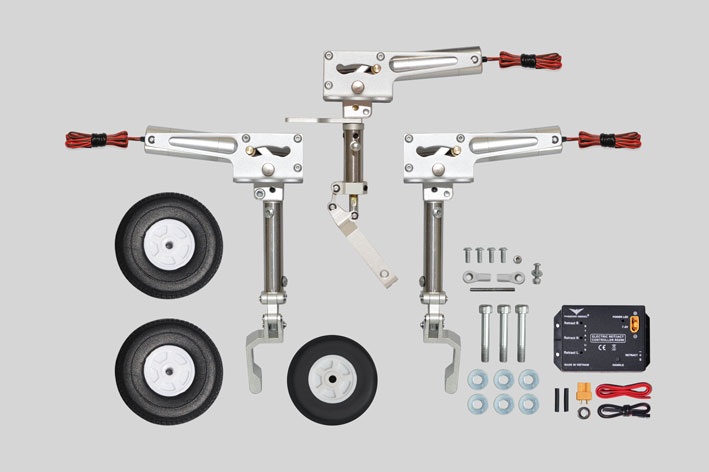

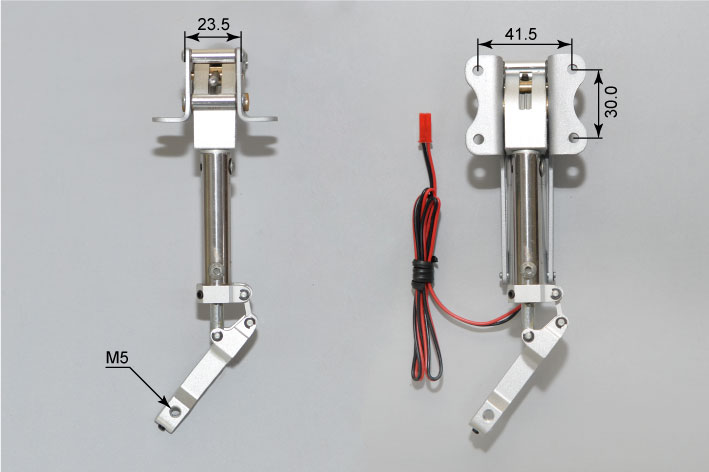

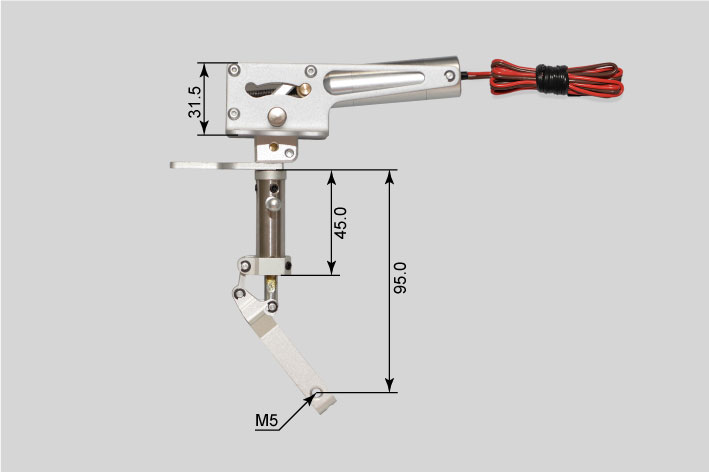

- Gear type: Electric Retract Gear (included) with controller box (included).
- Plastic Bomb not included (purchasing separately)
- Spinner size: scale type 70mm  (included)
- Radio: 8 channel minimum (not included)
- Servo: 2 aileron; 1 elevator; 1 rudder; 1 steering nose; 1 throttle (not included)
- Recommended receiver battery: 4.8-6V / 2000 mAh NiMH (not included)
- Servo mount: 21mm x 42 mm
- Propeller: suit with your engine
- Engine: 20-26cc gas engine (not included)
- Motor: brushless outrunner 2200 W, 500 KV (not included)
- Experience level: Intermediate
- Plane type: Scale Military
RECOMMENDED MOTOR AND BATTERY SET UP
- Motor: RIMFIRE .80 (not included)
- Lipo cell: 6 cells (not included)
- Esc: 60A (not included)

Feature

- Designed for compatibility with both GP and EP flight
- Superb flying characteristics, plus an accurate scale outline
- Details scale cockpit
- Removable hatch for easy set up radio

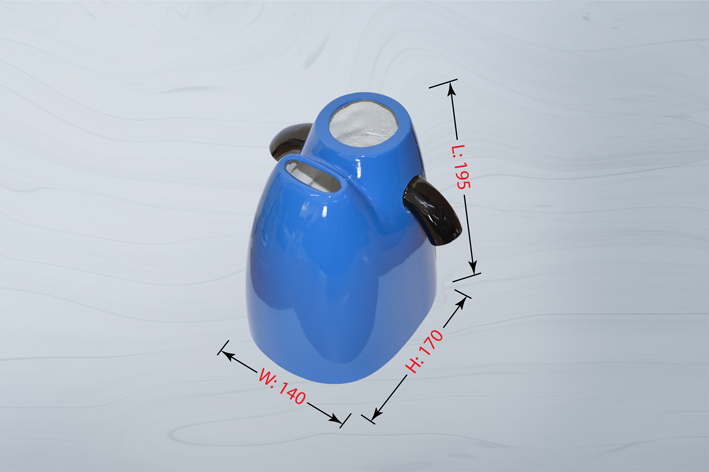

- Scale outline is enhanced by the lightweight fiberglass cowl
- High-quality hardware package included

Colour chart

Not update...

Packing

BOX DIMENSION
   - 1169mm X 403mm X 216mm (L x W x H)
