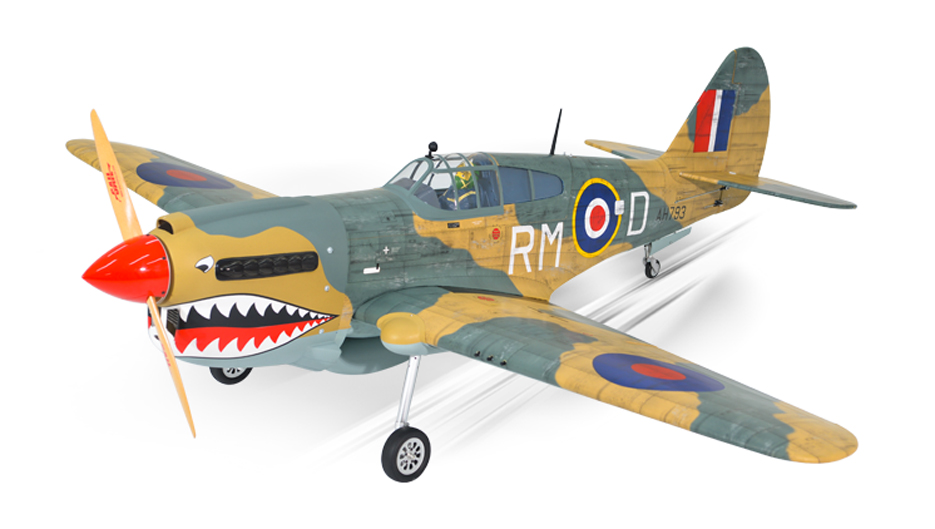

PH216 - P40 WARHAWK 2,04m 80,3" W/Electric Retract 35-55cc ARF CARBON

PH216 - P40 WARHAWK 2,04m 80,3

Introducing

    The P-40 Warhawk was an American single-engine, single-seat, all-metal fighter and ground attack aircraft that first flew in 1938. The P-40 design was a modification of the previous Curtiss P-36 which reduced development time and enabled a rapid entry into production and operational service. The Warhawk was used by most Allied powers during World War II, and remained in front line service until the end of the war. It was the third most-produced American fighter, after the P51 and  P47

Technical data

- Wingspan: 2040mm (80.3in)
- Length: 1797mm (70.7 in)
- Flying weight: 8700-8900 gr
- Wing area: 76 dm2
- Wing type: Naca airfoils

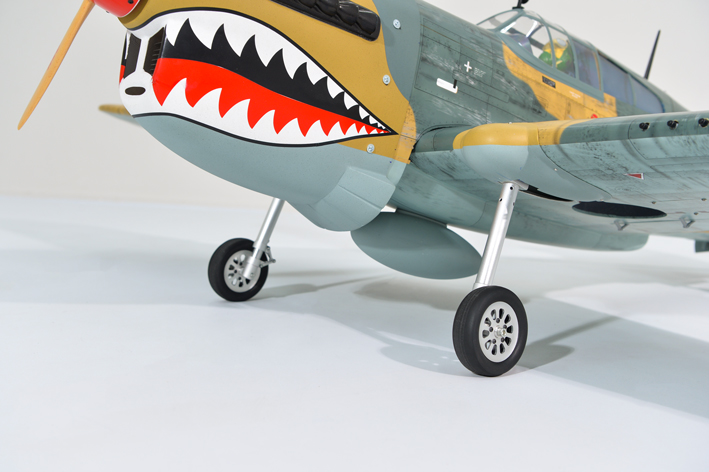

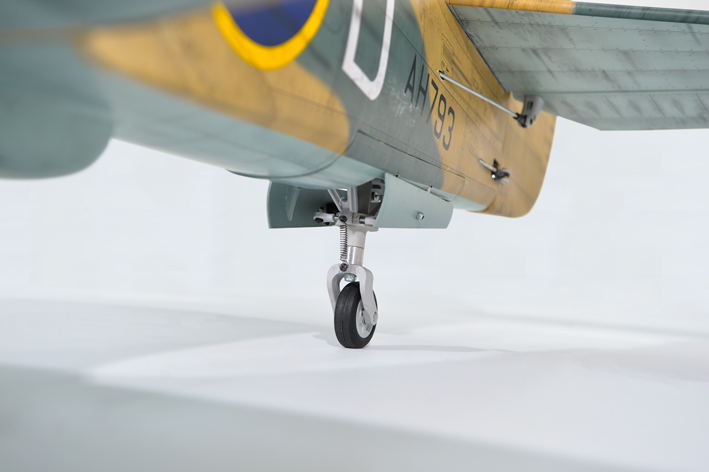

- Gear type: Electric Retract Gear With CNC Suspension Metal Struts, Electric Controller Box (included)
- Wheel with plastic hub included (Aluminum hub wheel purchasing separately)
- Plastic Bomb not included (purchasing separately)
- Spinner size: 115mm (included)
- Radio: 8 channel radio system minimum. 8 standard hi-torque servo: 2 aileron; 2 flap
2 elevator; 1 rudder; 1 throttle; (not included)
- Engine: 35-55cc gas engine (not included)
- Motor: brushless outrunner 2500 W, 250 KV (not included)
- Propeller: suit with your engine
- Experience level: Intermediate
- Plane type: scale military
RECOMMENDED MOTOR AND BATTERY SET UP
- Motor: RIMFIRE 1.60 (not included)
- Lipo cell: 12 cells / 5000 – 6000mAh (not included)
- Esc: 80-100A (not included)

Feature

- Designed for compatibility with both GP and EP flight
- Top quality balsa/light plywood construction
- Electric Retract included

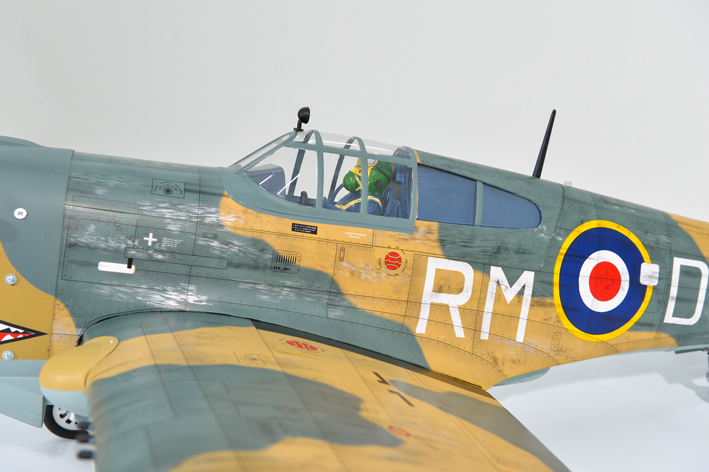

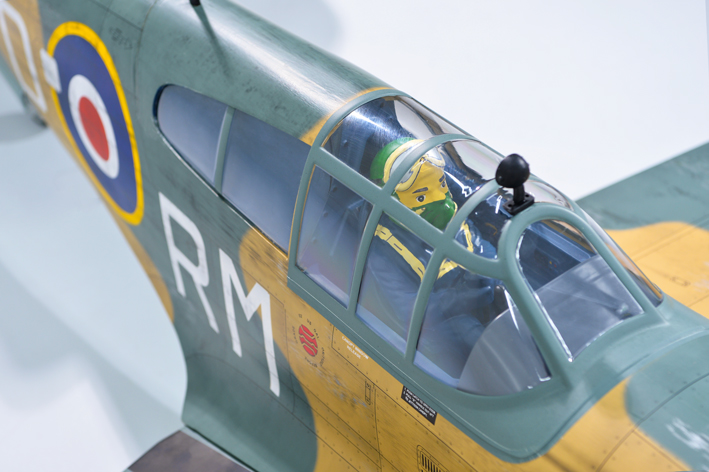

- Full-depth cockpit and instrument panel and pilot included

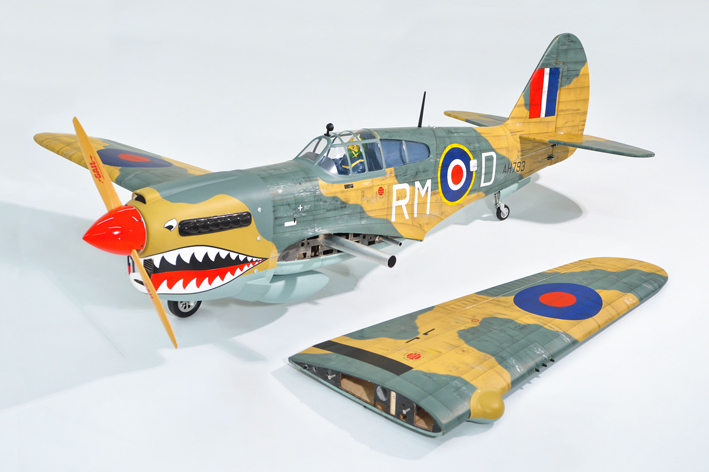

- Bolt-on two-piece wing for easy transport and setup at the field

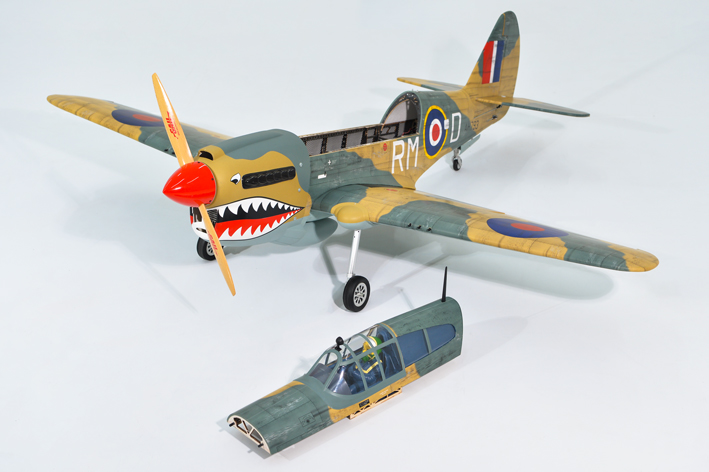

- Removable canopy for easy change lipo battery and set up radio
- Composite material for super strong and light weight
- Superb flying characteristics, plus an accurate scale outline

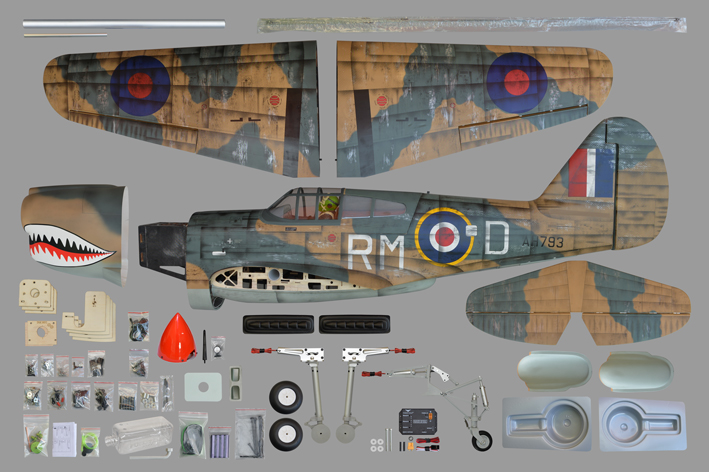

- High-quality hardware package included

Colour chart

Not update...

Packing

BOX DIMENSION
   - 1439mm X 565mm X 358mm (L x W x H)
