Introducing
The Republic P-47 Thunderbolt was the largest, heaviest, and most expensive fighter aircraft in history to be powered by a single piston engine. It was heavily armed with eight .50-caliber machine guns, four per wing. When fully loaded, the P-47 weighed up to eight tons, and in the fighter-bomber ground-attack roles could carry five-inch rockets or a significant bomb load of 2,500 pounds; over half the weight the B-17 bomber could carry on long-range missions

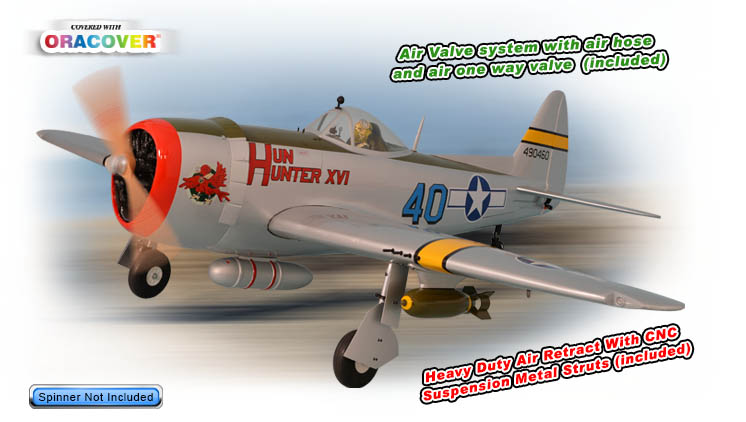

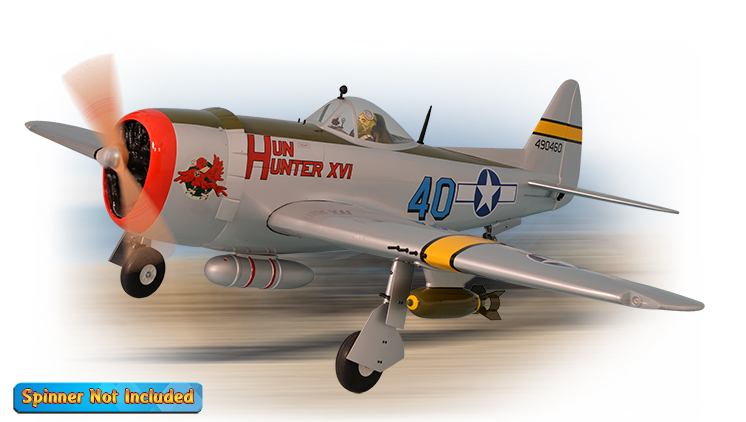

Phoenix Model’s P-47 Thunderbolt ARF is a remarkably accurate rendition of America’s favorite fighter airplane. This 33cc-sized almost-ready-to-fly airplane was designed and crafted to be the most realistic sport-scale ARF on the market. 3-D computer engineering produces parts that fit with absolute precision for straight, strong assembly. Slotted flaps provide function as well as scale appearance, concealing the control horns internally to maintain scale lines. Phoenix Model has thought of just about everything to make set up convenient, including a removable, and large top hatch for battery packs or radio equipment.
Technical data
- Wingspan: 2011mm (79.1 in)
- Length: 1737mm (68.4 in)
- Flying weight: 8900-9100 gr
- Wing area: 70 dm2
- Wing loading: 127g/dm2
- Wing type: Naca airfoils
- Retract gear type: Electric Retract Heavy Duty With CNC Suspension Metal Struts (included)
- Plastic Bomb not included (purchasing separately)
- Spinner size: Scale type (not included)
- Radio: 8 channel radio system minimum. 8 standard hi-torque servo: 2 aileron; 2 flap; 2 elevator; 1 rudder; 1 throttle; (not included)
- Engine: 30-50cc (gas engine) (not included)
- Motor: brushless outrunner 2500 W, 250 KV (not included)
- Propeller: suit with your engine
- Experience level: Intermediate
- Plane type: scale military
RECOMMENDED MOTOR AND BATTERY SET UP
- Motor: RIMFIRE 1.60 (not included)
- Lipo cell: 12 cells / 5000 – 6000mAh (not included)
- Esc: 120-160A (not included)
Feature
- Official licensed product
- Designed for compatibility with both GP and EP flight
- Top quality balsa/light plywood construction
- Heavy Duty Electric Retract With CNC Suspension Metal Struts included
- Full-depth cockpit and instrument panel and pilot included
- Eight Scale Plastic Gun included
- Scale Lens and Mirror included
- Removable Scale Antenna included
- Bolt-on two-piece wing for easy transport and setup at the field
- Removable Top Hatch for easy change lipo battery and set up radio
- Strong Light Weight Construction
- Superb flying characteristics, plus an accurate scale outline
- High-quality hardware package included
Colour chart
• Silver ( #21091)
• Oliver Drab ( #21018)
•
Ferrari Red ( #21023)
• White ( #21010)
• Cub Yellow (# 21030)
• Black
(# 21071)
Packing
BOX DIMENSION
- 1409mm X 500mm X 288mm (L x W x H)
