PH237 – TUCANO 2,4m 94.5" With Electric Retract 50-60cc ARF CARBON

PH237 – TUCANO 2,4m  94.5

Introducing

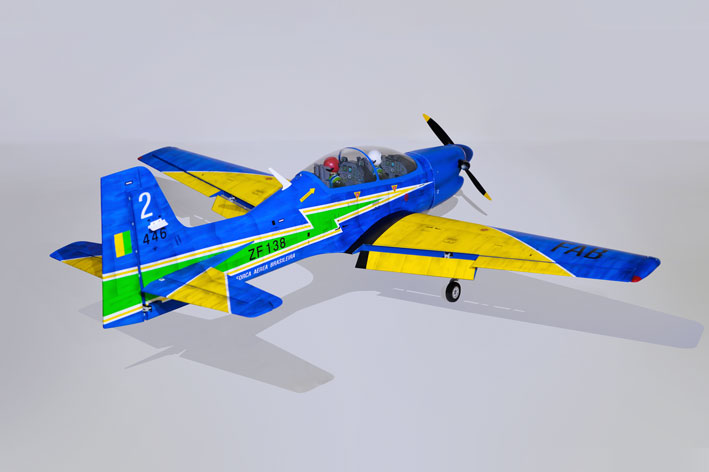

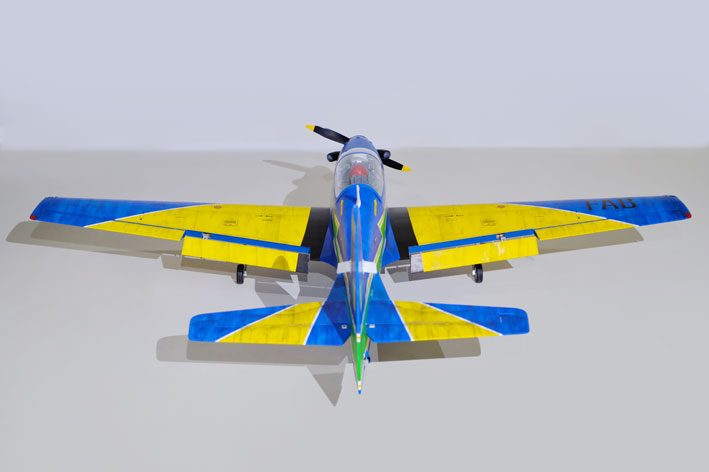

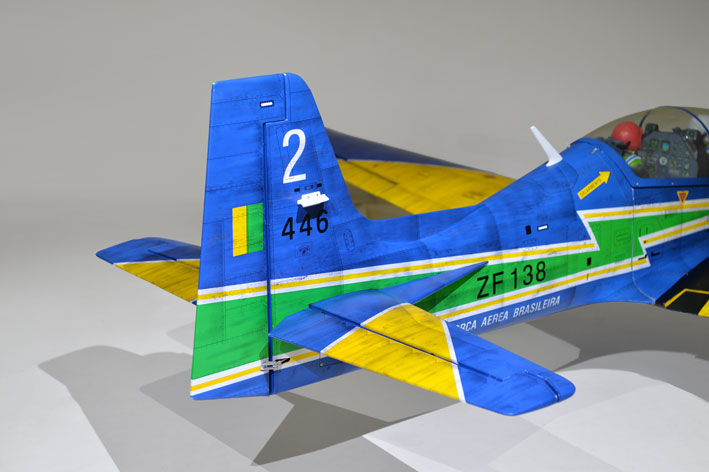

A real beauty aircraft. Anyone who likes the war birds is bound to love this airplane. It has a large wing and very strong construction. Control surface size and the right tail moment promise great flying characteristics, wide speed range, slow landings and precise aerobatics. An impressive scale Landing gear is also included with the kit. It is designed exclusively for this aircraft. It is a piece of engineering of its own. The Tucano is an easy-to-assemble, easy -to-fly blast for any pilot interested in large-scale flight. Functioning scale flaps make takeoffs and landings a breeze. Factory-created scale detail like the canopy, cockpit, pilot, control surfaces.... The TUCANO ARF is part of PHOENIX MODEL's complete line of top-quality aircraft and accessories.

Technical data

- Wingspan: 2400mm (94.5in)
- Length: 2048mm (80.6 in)
- Flying weight: 10800 - 11000 gr
- Wing area: 86 dm2
- Wing loading: 125 g/dm2
- Wing type: Naca airfoils
- Gear type: Electric Retract With CNC Suspension
  Metal Struts, Electric Controller Box (included)
- Spinner size: 115mm (included)
- Servo: 9 standard hi-torque servo: 2 aileron; 2 flap; 2 elevator; 1 rudder; 1 throttle; 1 steering nose. (not included)
- Recommended receiver battery: 6.0V 2400/2600mAh NiMH (2) (not included)
- Servo mount: 21mm x 42 mm
- Propeller: suit with your engine
- Engine: 50- 60 CC gas engine (two stroke)(not included)
- Motor: brushless outrunner 2600-3000 W, 190 KV (Not Included)
- Experience level: Intermediate
- Plane type: Scale Military
RECOMMENDED MOTOR AND BATTERY SET UP
- Motor: Rimfire 50cc (not included)
- Propeller: 22x8 to 26x10 (not included)
- Lipo cell: 12 cells / 5000 – 6000mAh (not included)
- Esc: 120A (not included)

Feature

- Designed for compatibility with both GP and EP flight
- Electric Retract Gear With CNC Suspension Metal Struts, Electric Controller Box (included)
- Separate fuselage and wing structure allows compact transportation
- Extremely lightweight laser-cut all-wood construction

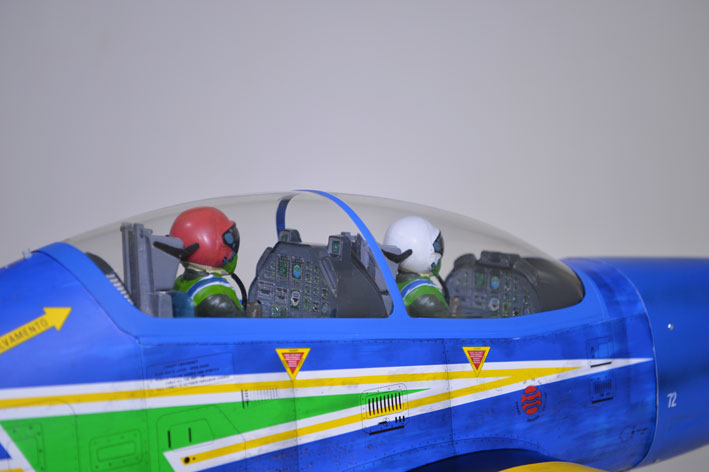

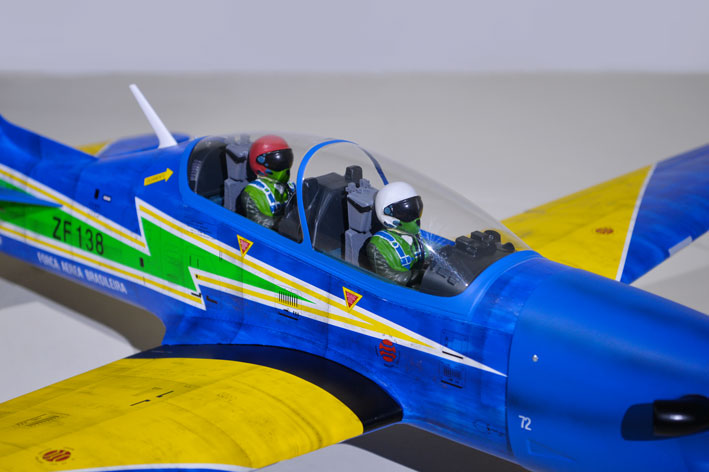

- Full-depth cockpit and instrument panel and pilot included
- Bolt-on two-piece wing for easy transport and setup at the field
- Removable canopy for easy change lipo battery and set up radio
- Composite material for super strong and light weight
- Superb flying characteristics, plus an accurate scale outline
- High-quality hardware package included

Colour chart

Not update...

Packing

BOX DIMENSION
   - 1279mm X 675mm X 408mm (L x W x H)
