Introducing

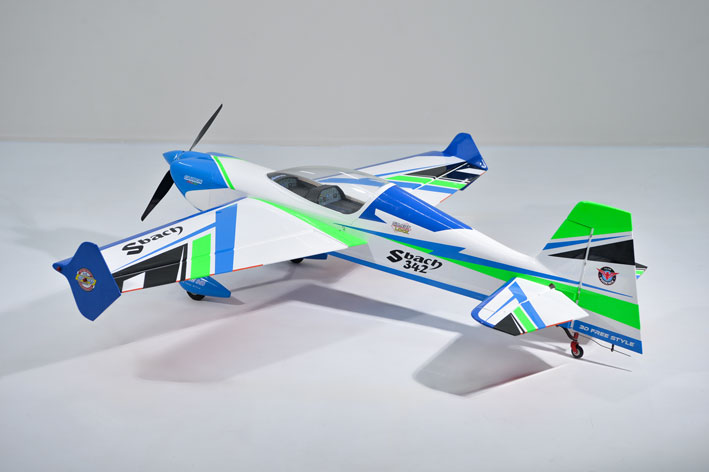

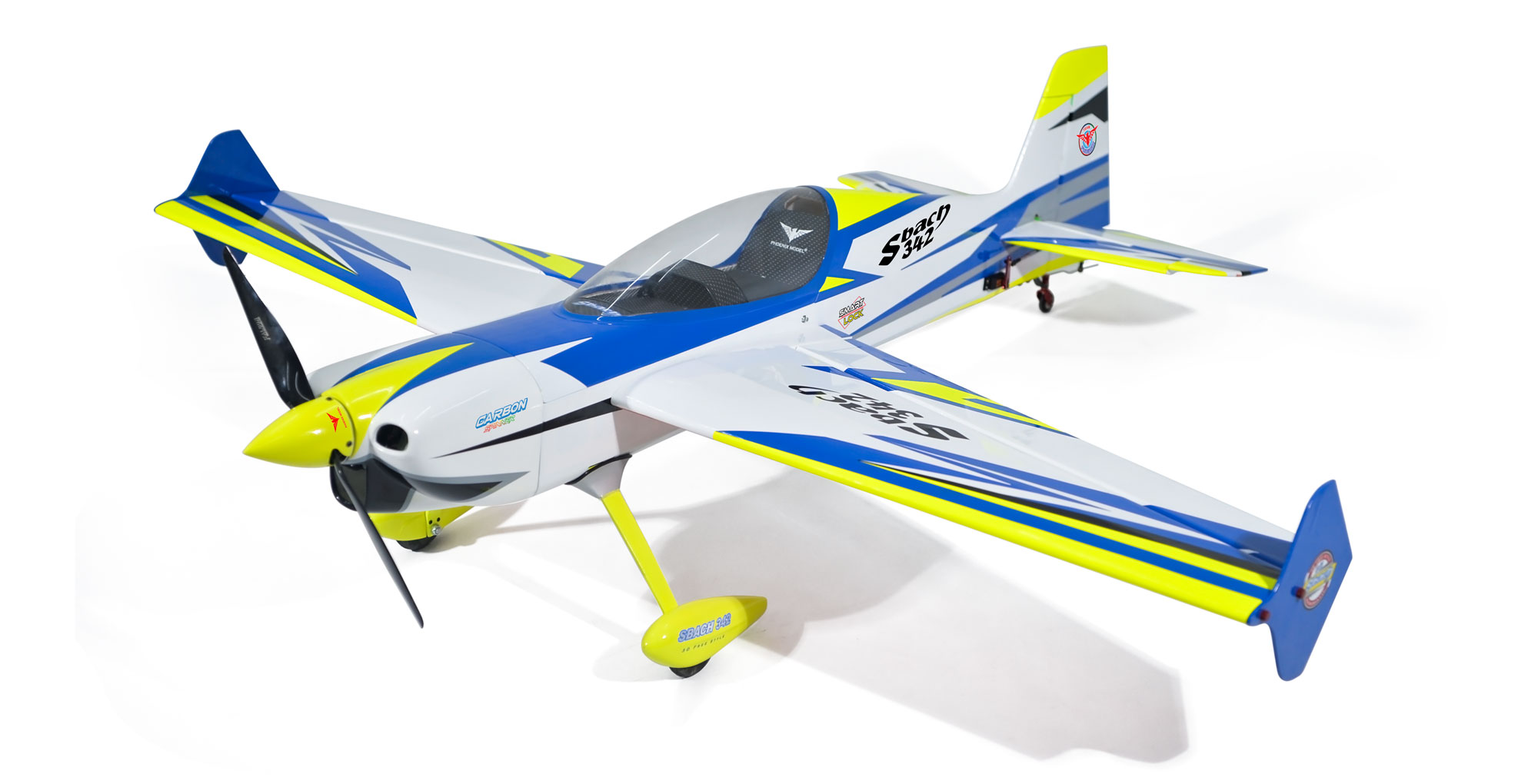

SBACH 342 67" ARF V2
Technical data
- Wingspan: 1700mm (67 in)
- Length: 1638mm (64.4 in)
- Flying weight: 3900-4100gr
- Wing area: 56 dm2

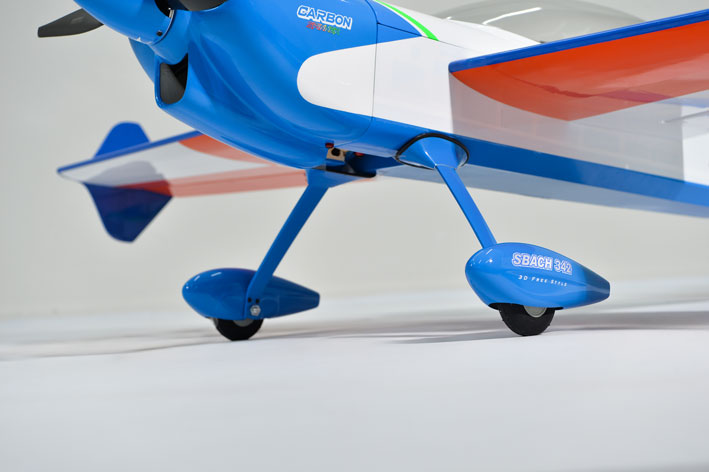

- Gear type: Carbon fiber for main gear and tail gear (included)
- Spinner size: Carbon Spinner 70mm (included)
- Gravity CG: 135mm (5.3 in) Back from the leading edge of the wing, at the fuselage
CONTROL SETTINGS:
- Elevator:
Low Rate 8-10 deg. 10-25% expo
3D Rate 45-50 deg. 55-65% expo
- Aileron:
Low Rate 15-20 deg. 40-45% expo
High Rate 38-40 deg. 60-75% expo
- Rudder:
Low Rate 20 deg 40-50% expo
High Rate 45-50 deg. 60-80% expo
POWER SYSTEM:
Electric
- Motor: Tmotor AM670
- ESC: 120HV
- Battery: 6S 4000-5000 mAh
- Prop: 18x8
SERVO: Metal gear hi-torque servos
- 2 Aileron: hi-torque 30-40 kg ( Standard size: 20x40mm )
- 1 Elevator: hi-torque 20-22 kg ( Medium size: 18x36mm )
- 1 Rudder: hi-torque 20-22 kg ( Medium size: 18x36mm )
Feature
- Capable of both precise and extreme 3D aerobatics
- Designed for compatibility with both GP flight

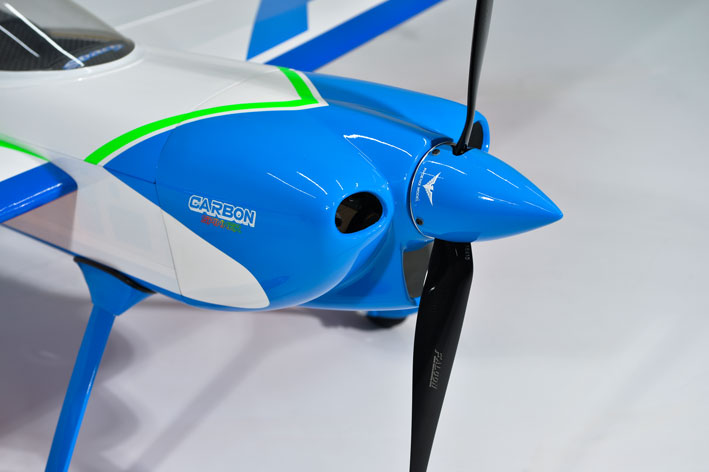

- Factory-painted Carbon fiber Spinner (included)
- Factory-painted Carbon fiber Main langding gear and tail gear (included)
- Factory-painted fiberglass cowling and wheel pants (included)
- Factory-painted fiberglass control horn (included)
- All ball linkages and hexagon metal rod are included (included)

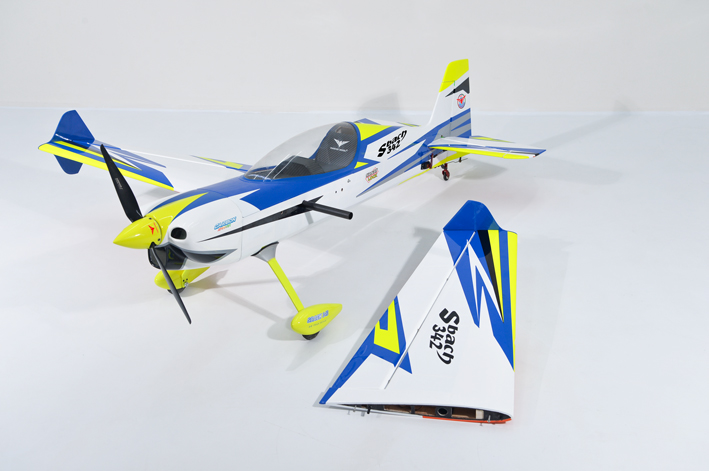

- Plug-in wings with Smart Lock system for fast assembly and easy transport (included)
- Wing Force included for precise and stability (included)

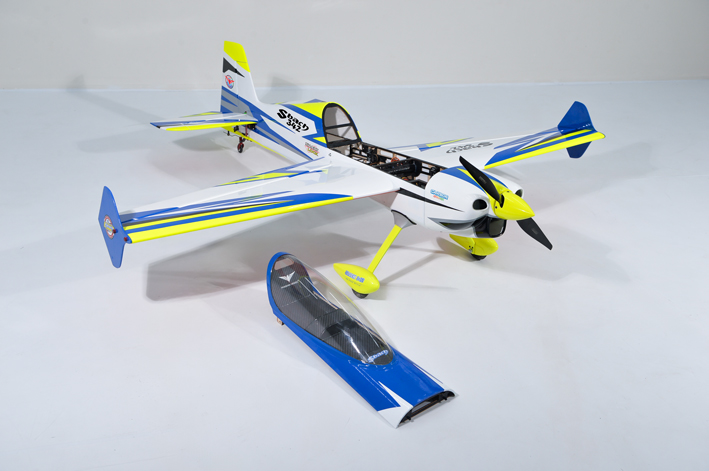

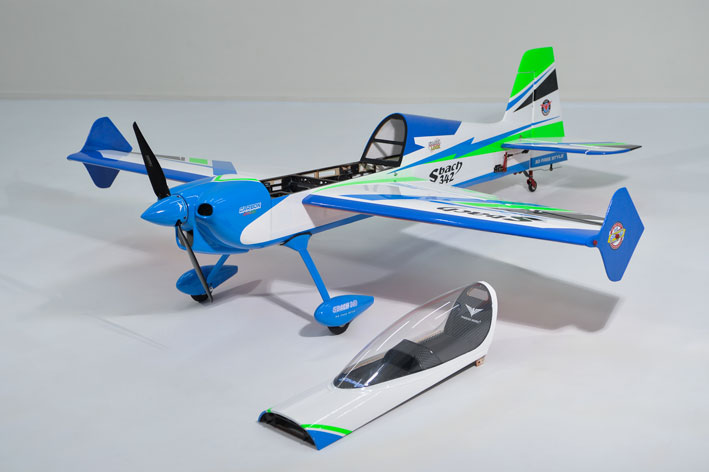

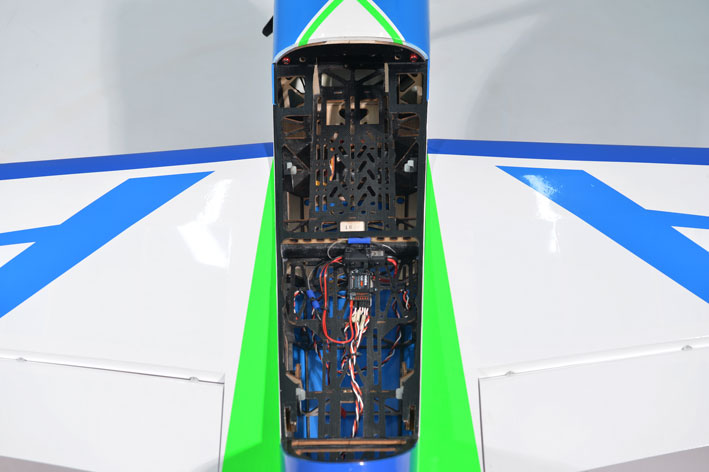

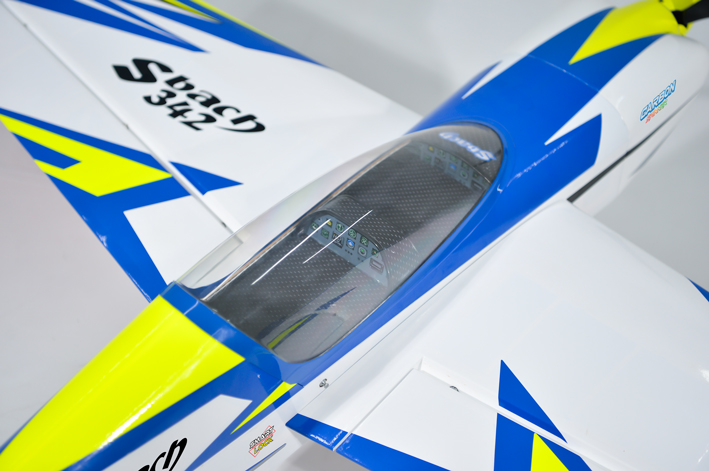

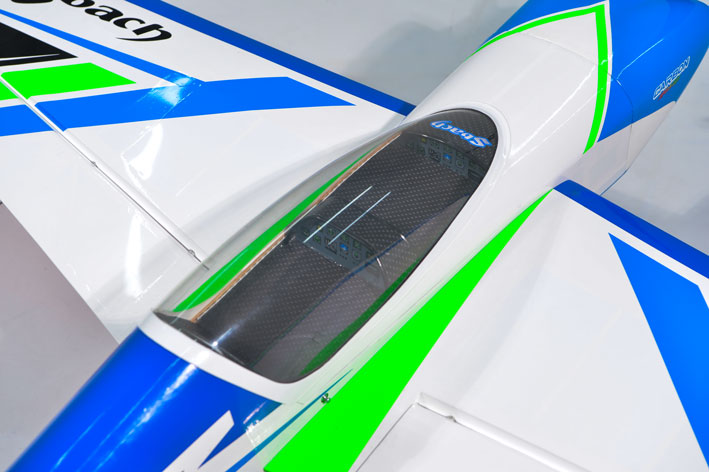

- Removable canopy for easy change lipo battery and set up radio
- Removable horizontal stabilizer
- Constructed from high-quality balsa and plywood, reinforced with Composite material for super strong and light weight
- Genuine polyester covering film ensures excellent color durability
- All high-quality hardware included
Colour chart
- Orange (# 21060)
- White (# 21010)
- Flour Yellow (# 21031)
- Blue (# 21050)
- Black (# 21071)
- Grey (# 21011)
Packing
BOX DIMENSION
- 1,359mm X 470mm X 263mm (L x W x H)
